Central Thermal Monitoring System

Plug-&-Sense Wireless Technology

Plug-n-Sense is our solution for Temperature and Humidity Monitoring. It is based on the latest wireless technology in IoT. It features easy and fast installation without the need for any wires.

Overview

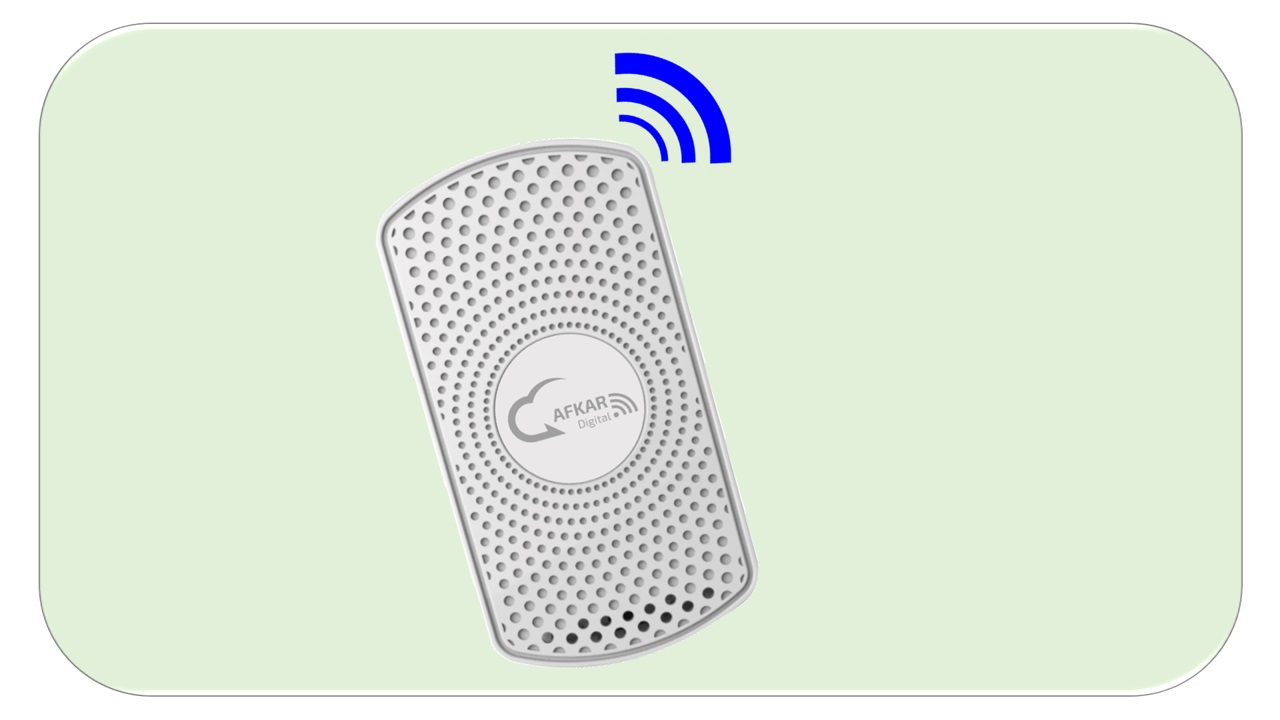

Unlike other wired systems, our Central Thermal Monitoring System uses wireless Plug-n-Sense small-size temperature & humidity sensors.

The wireless sensors can be easily mounted at any desired point, over any shelve, inside a refrigerator or even inside a freezer, near AC supply or AC return.

This offers superior flexibility compared to legacy systems which use wired sensors to monitor temperature at few points, and once mounted it would be difficult to relocate due to the installed wires.

Such flexibility enables better Monitoring of the actual Temperature/Humidity, and in turn better Optimization of the thermal distribution inside places such as Medicine Warehouses, Food Storage Warehouses, Meeting Rooms, Halls, Malls, and other similar places.

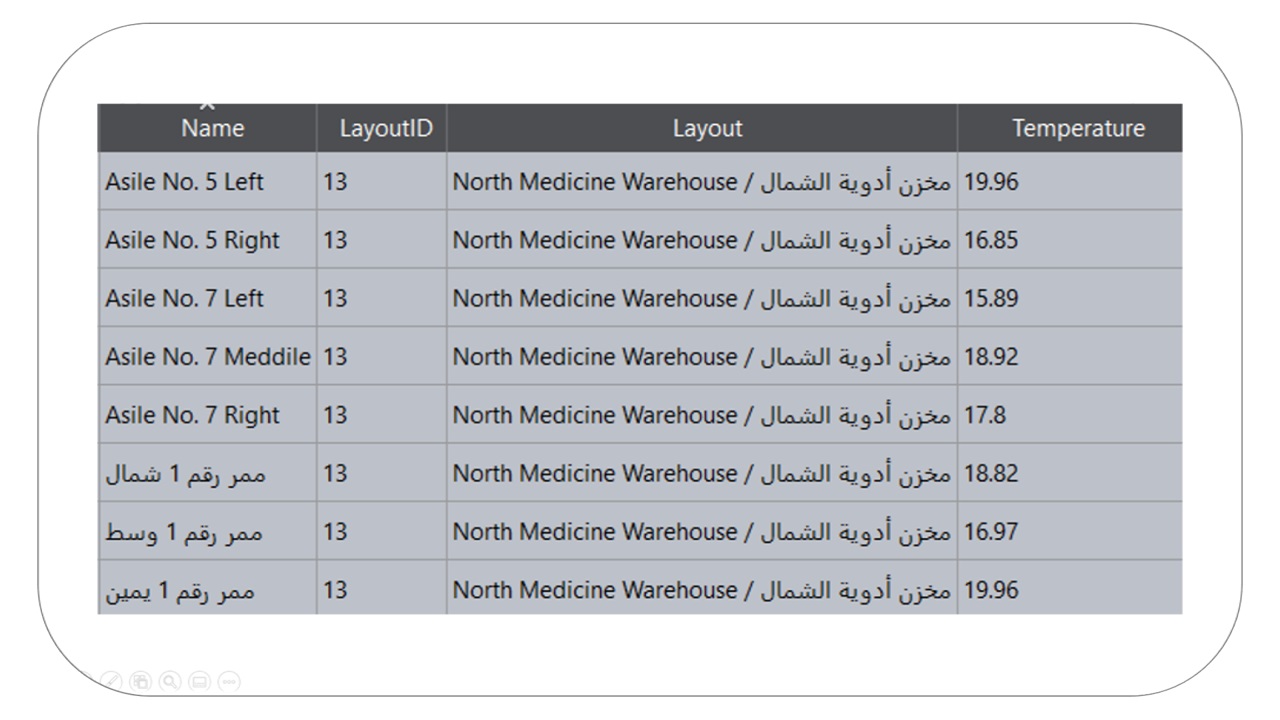

The thermal measurements are uploaded to a local PC or over the internet to the cloud.

Features

 

No wires, all wireless

 

Quick Installation in a couple of hours

 

Swiss-made Sensors measuring temperature and humidity, accuracy ±0.2°C

 

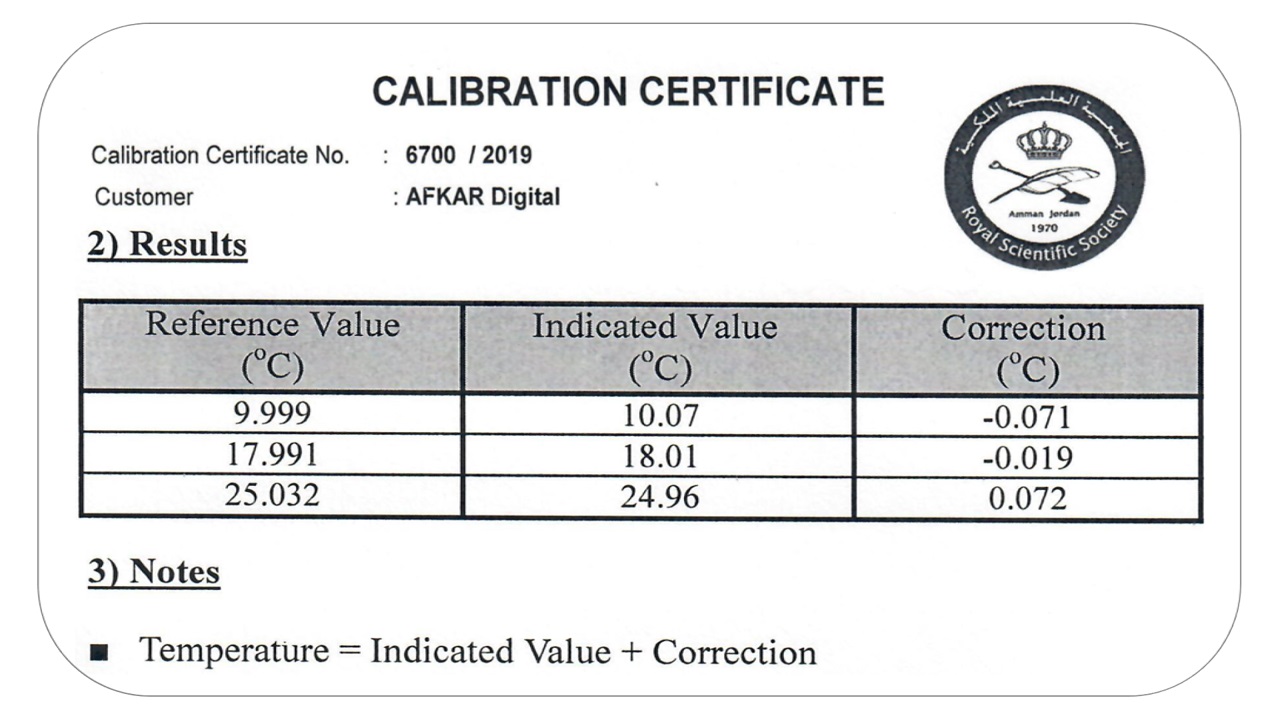

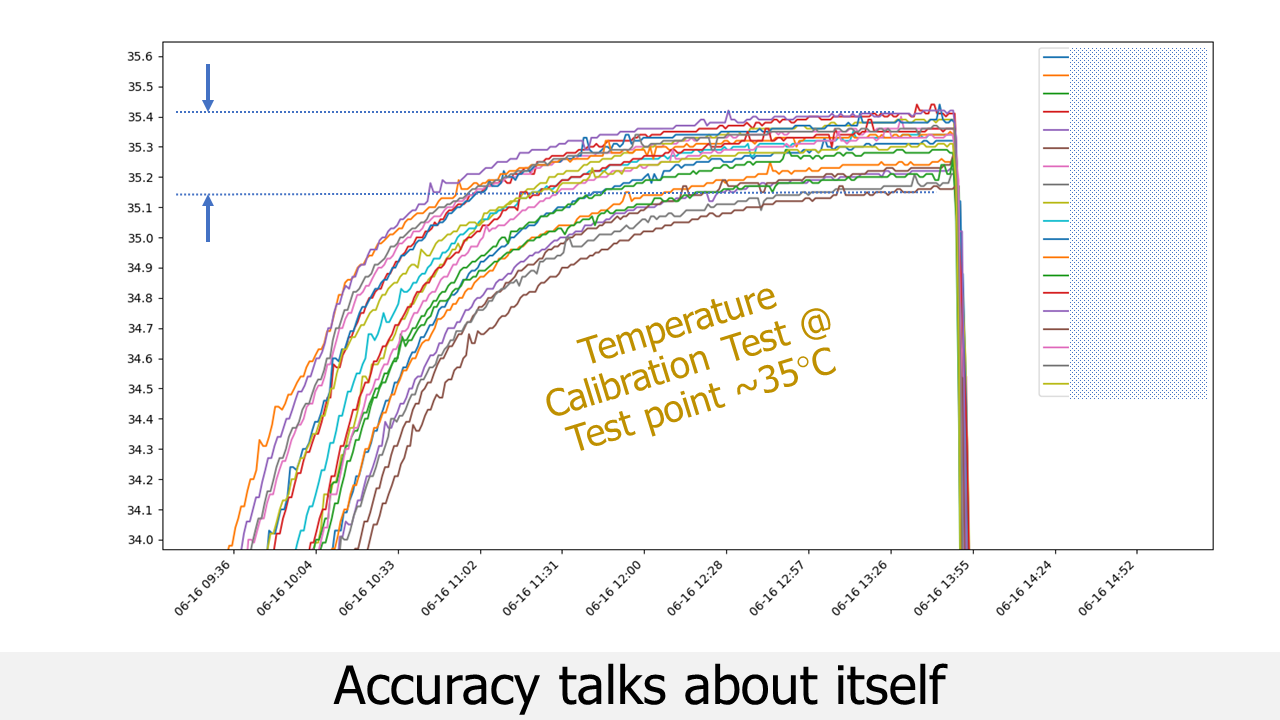

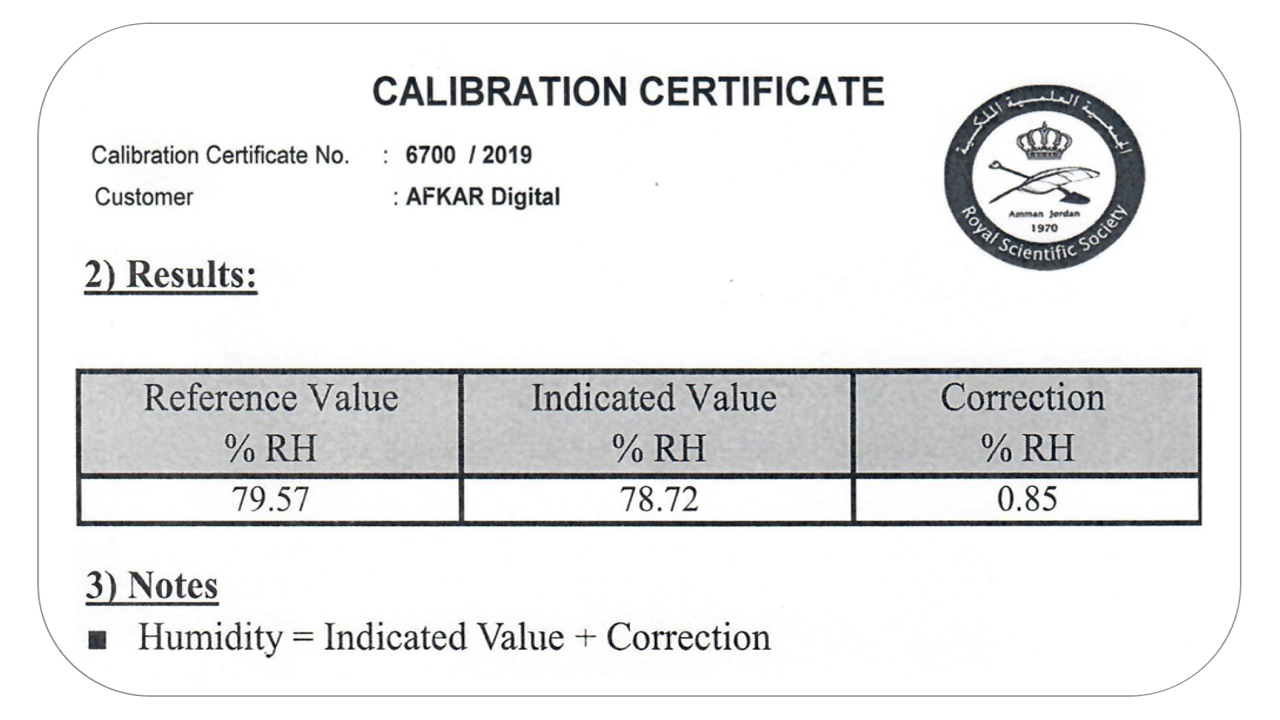

Highly accurate as confirmed from the samples tested by the Metrology Department in Royal Scientific Society

 

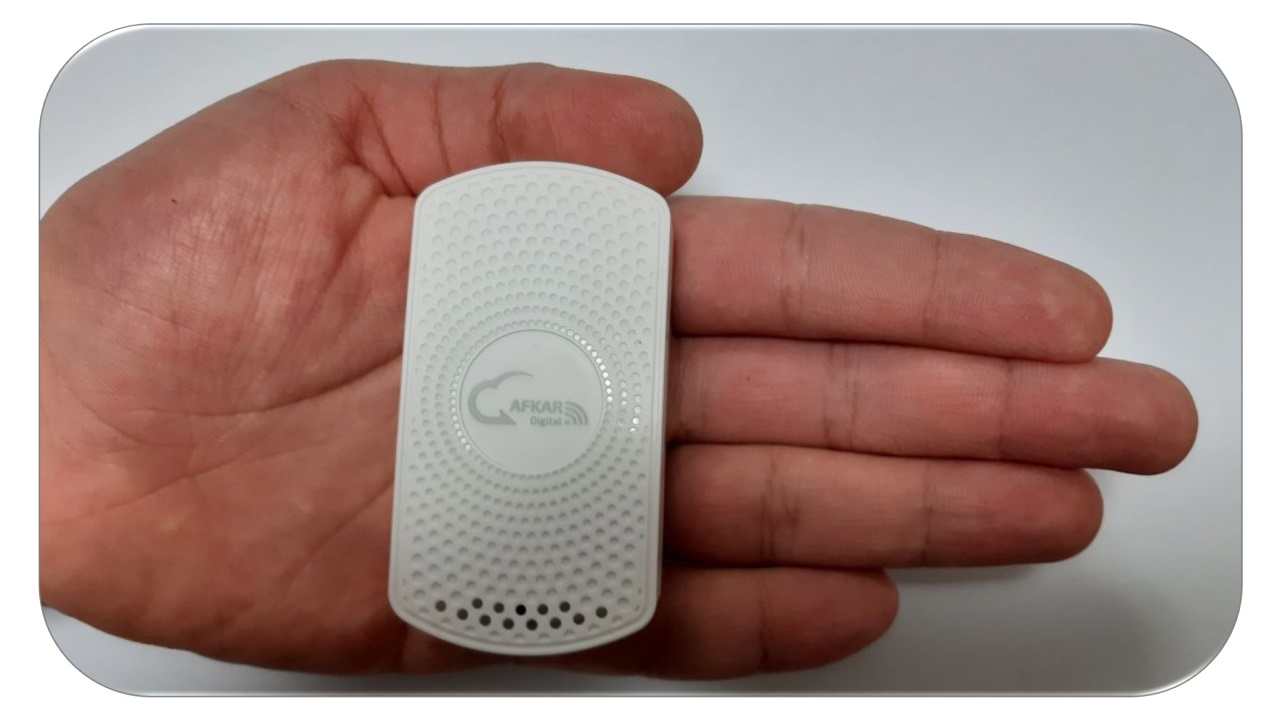

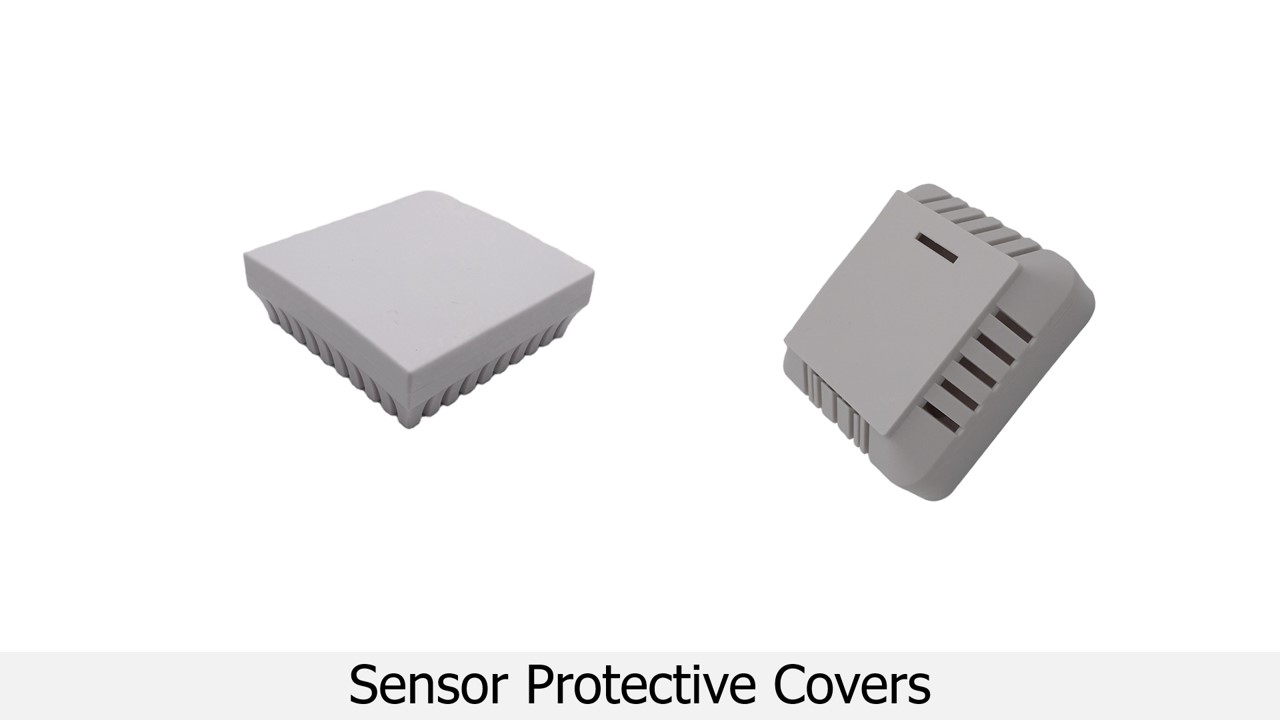

Small size. Easily plugged at desired points.

 

Relocated easily to any desired point

 

Local Data Storage or over the Cloud

 

~2 years replaceable battery

 

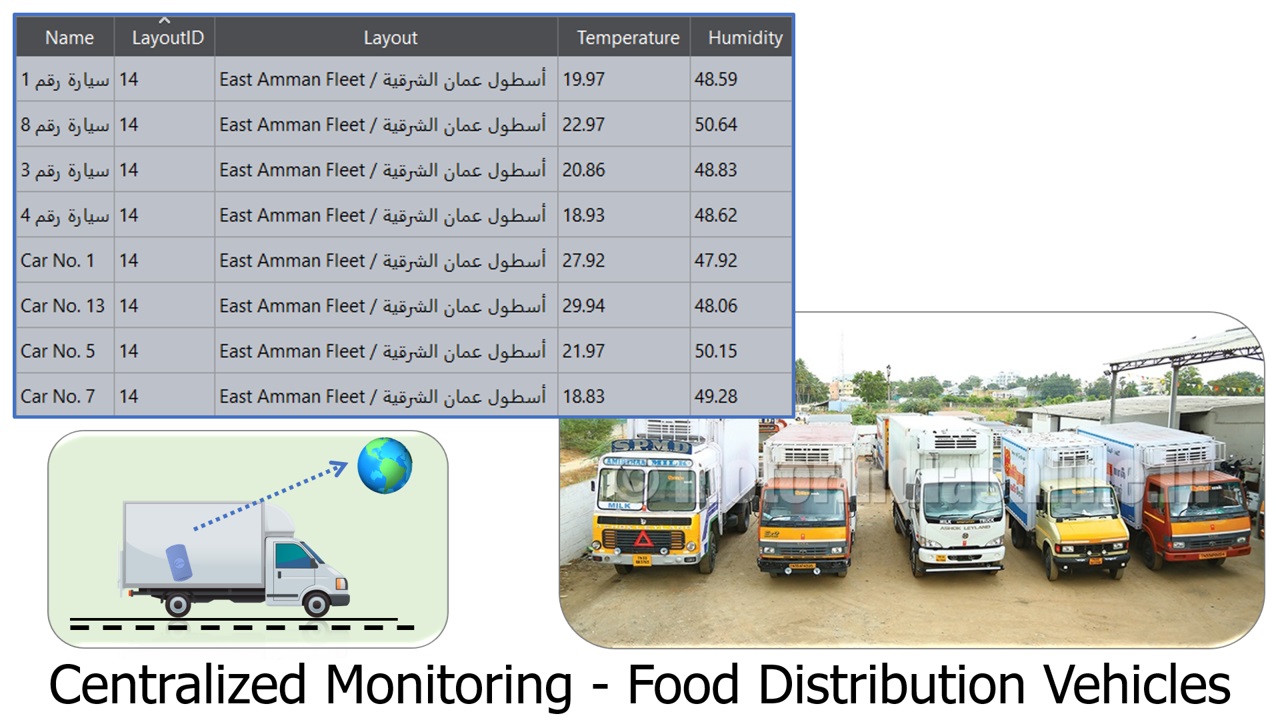

Centralized Remote Monitoring (multiple distant locations can be monitored from same Application)

 

Monitoring from anywhere over the Internet from any Mobile/PC

 

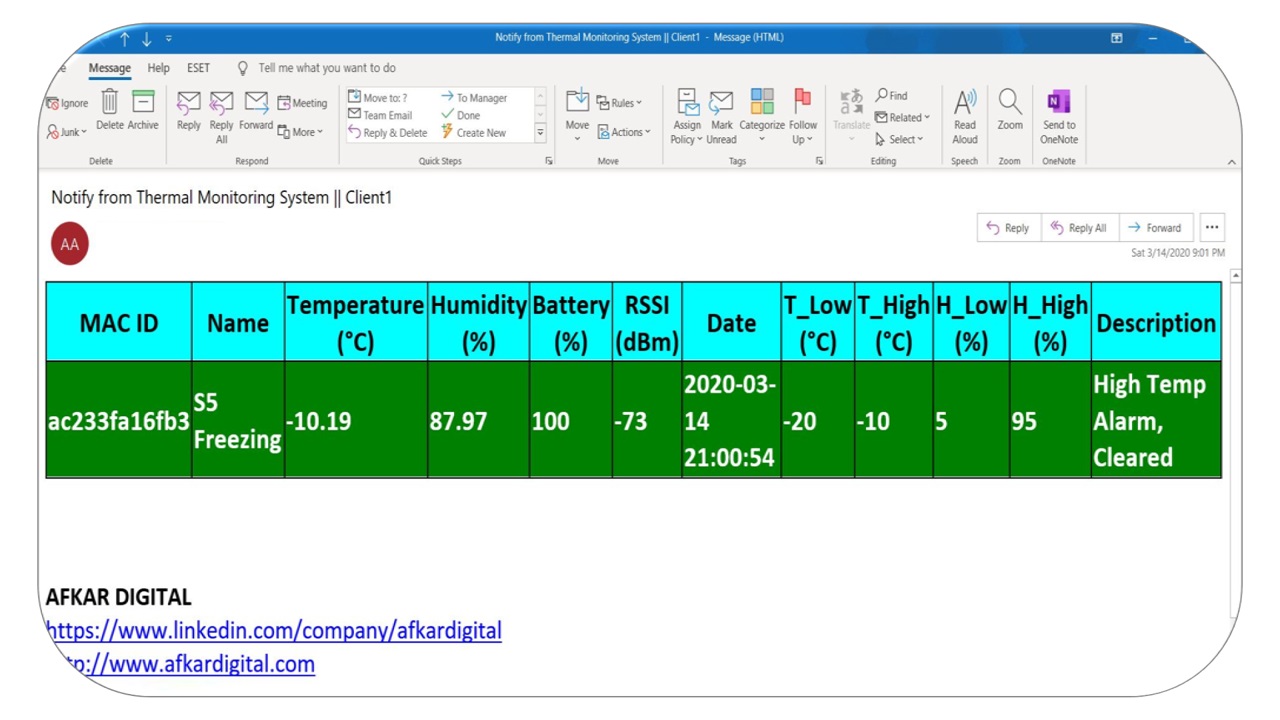

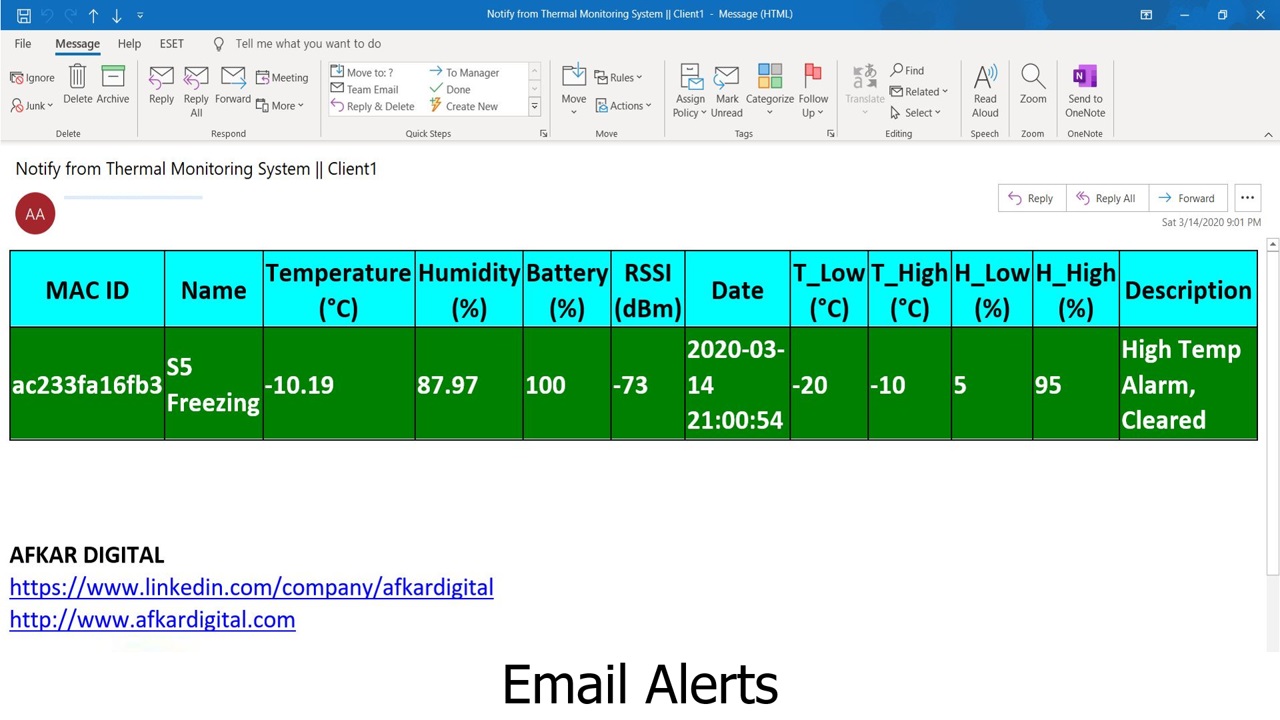

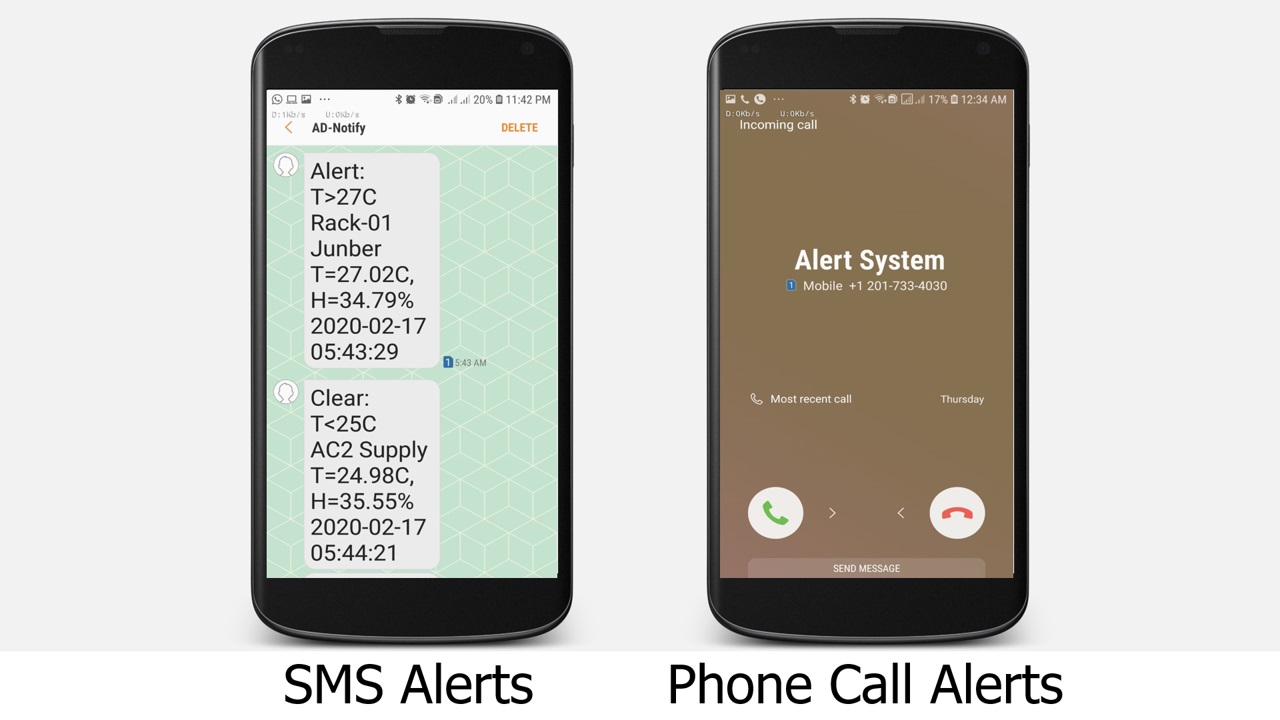

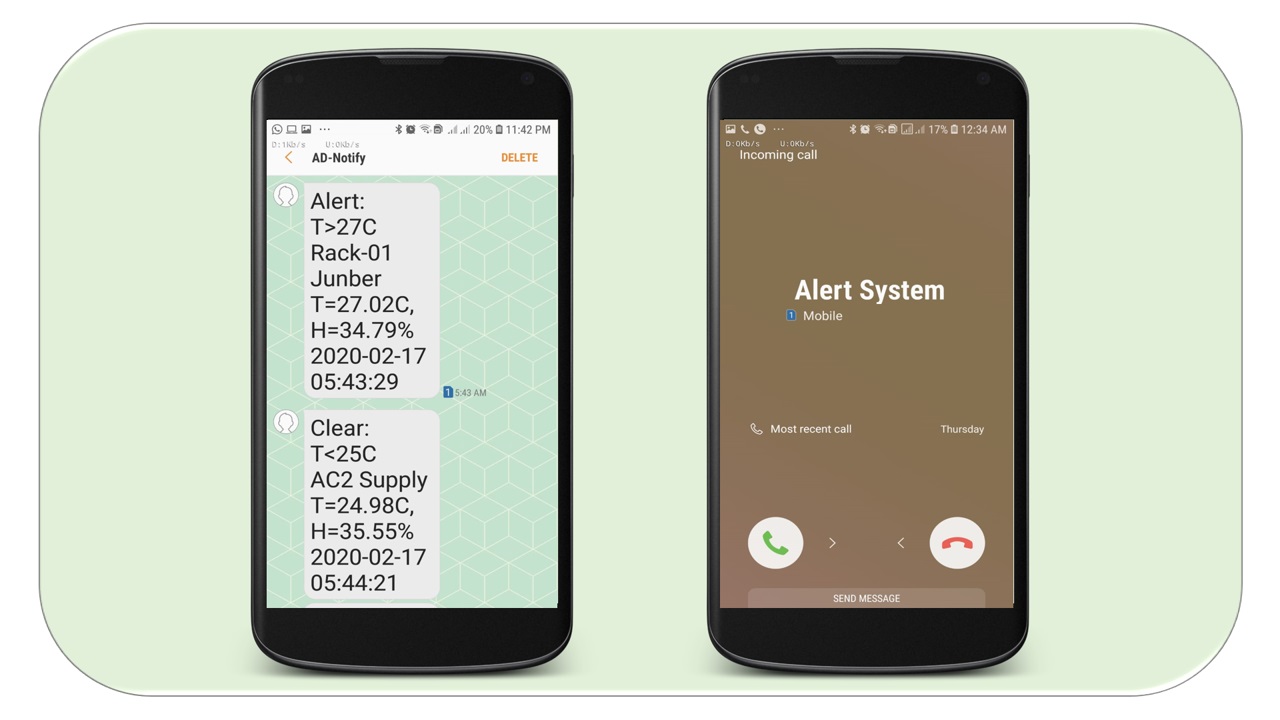

Alerts are notified automatically via Email, SMS, WhatsApp, and Phone Calls with digital voice for immediate alerts

Hidden issues we highlight

 

The Set Temperature is at wrong point

 

Electricity Bill is high due to over-cooling/heating

 

Existing Hot-spots due to AC Malfunctions

 

The “cooled air” does not reach desired areas

 

Current HVAC System is not well-designed

 

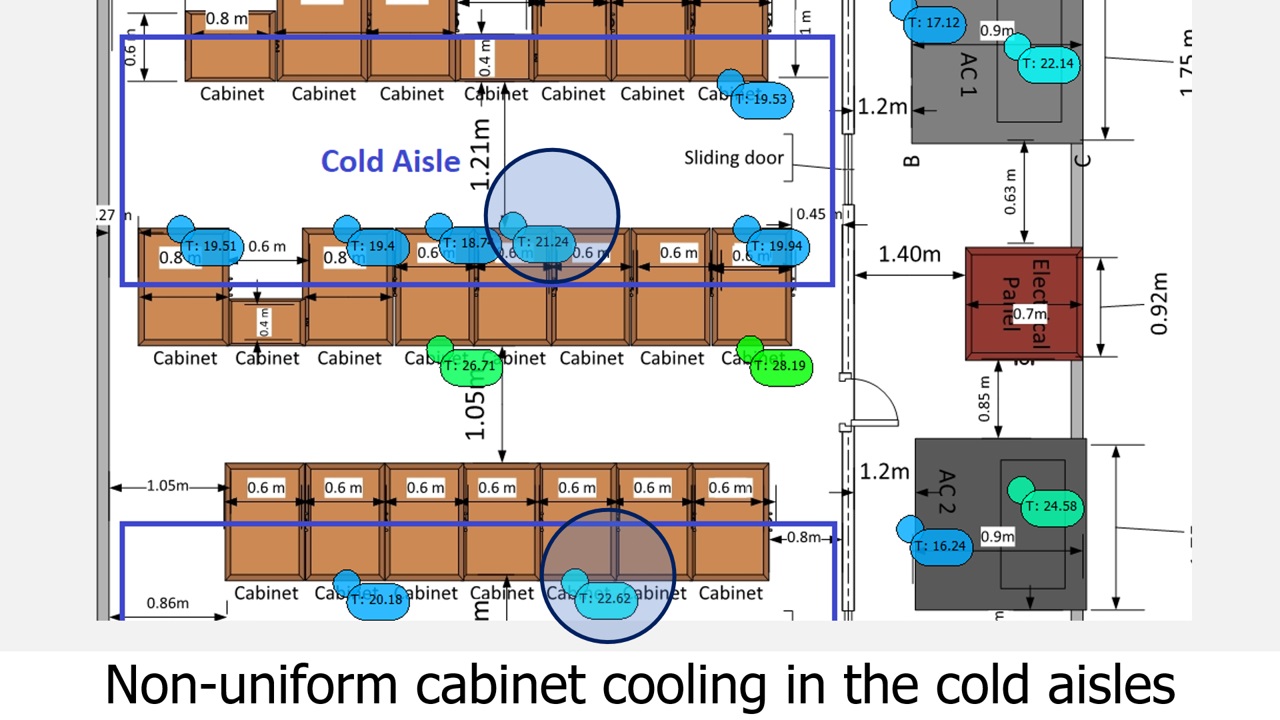

Unbalanced cooling distribution

 

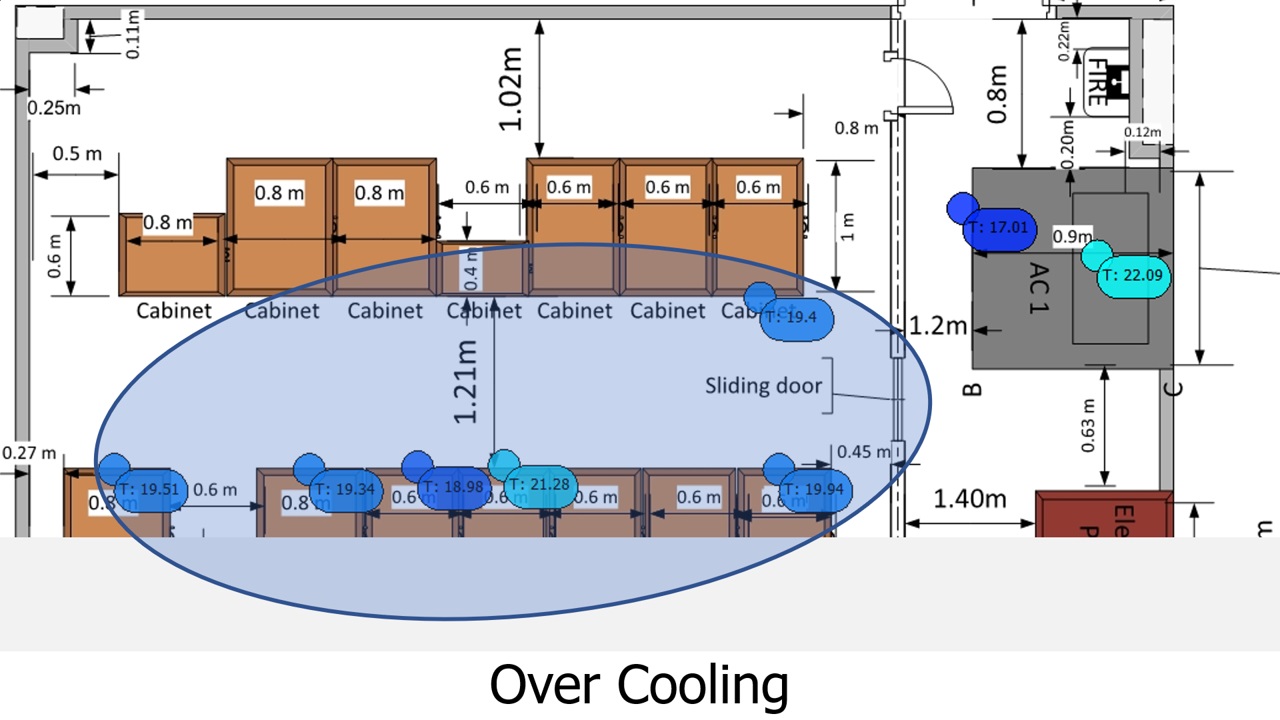

Over-cooled areas

 

Warm (or hot) areas

 

and more …

Using Wireless Technology

 

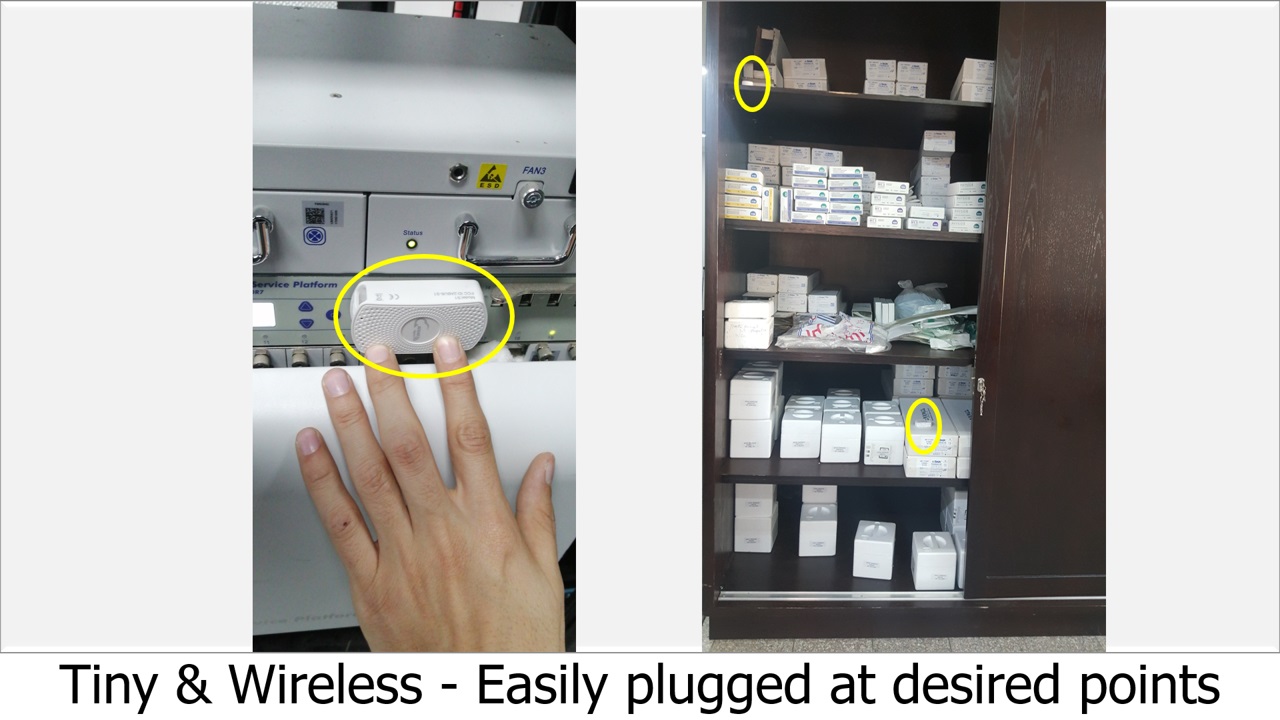

Plugged easily at desired points

 

Quick Installation in few hours

Centralized Remote Monitoring (IoT)

 

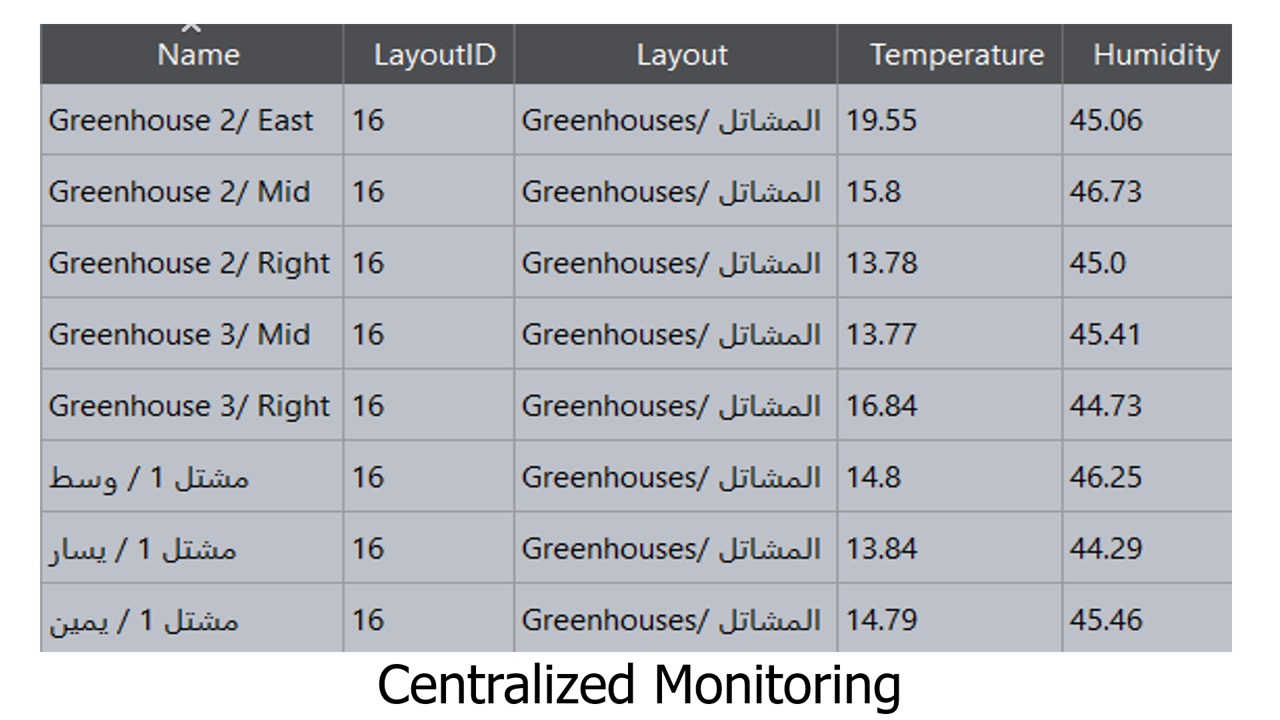

All places are monitored from one dashboard

Easily Interfaced with SCADA/BMS/DCIM

Reduce Electricity Bill by avoiding Over-cooling

Validate if “cooled air” reaches desired locations

Optimize HVAC System

Redesign Supply and Return Air

Fix HVAC system to eliminate Hotspots

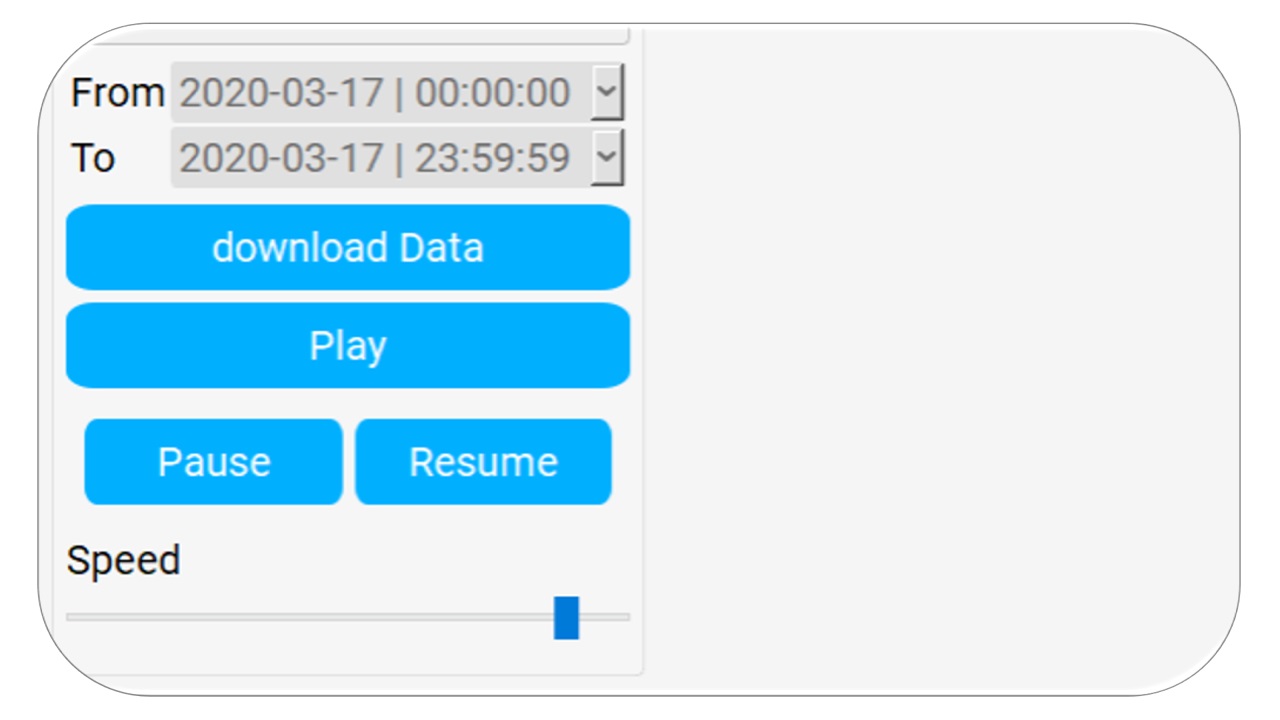

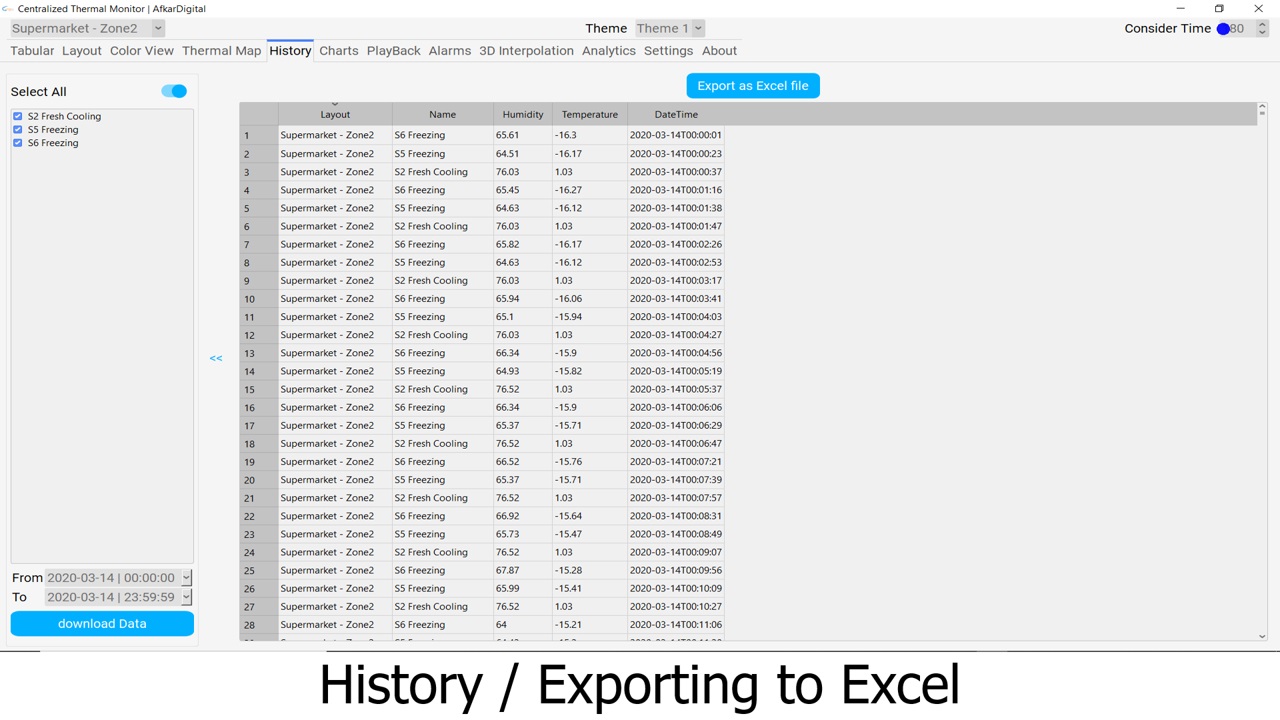

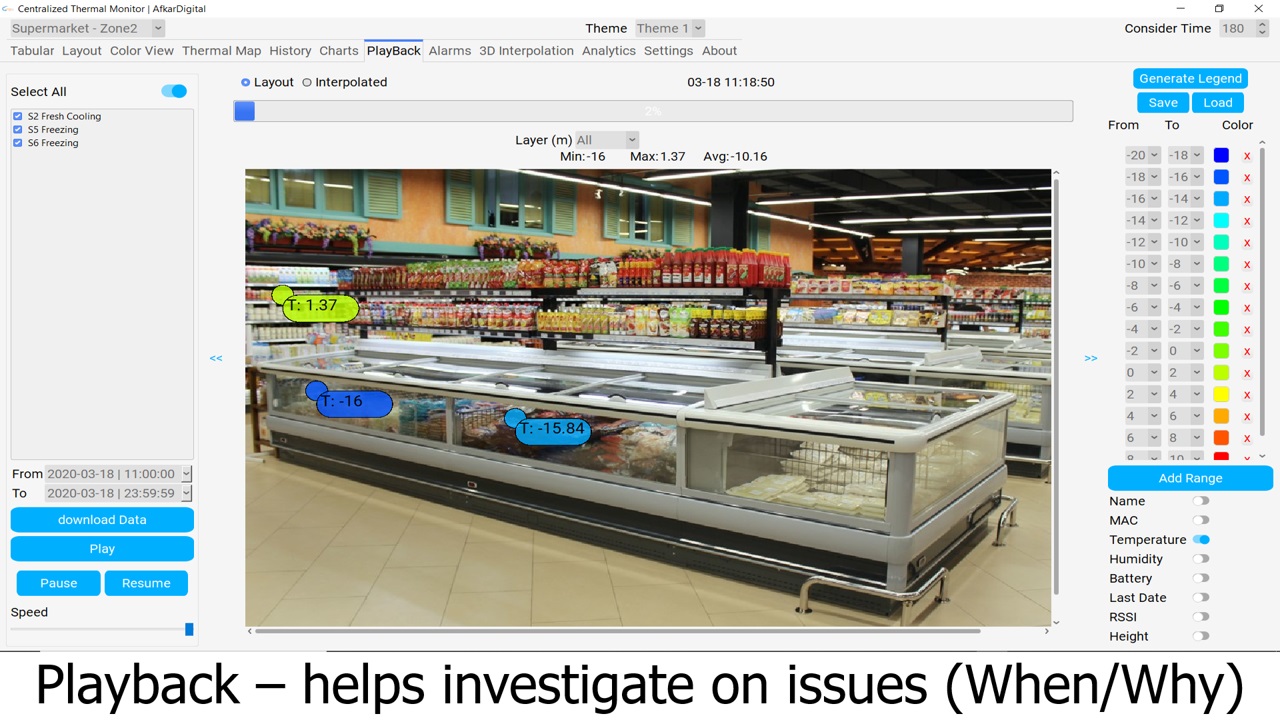

Playback Feature of measurements to investigate what went wrong

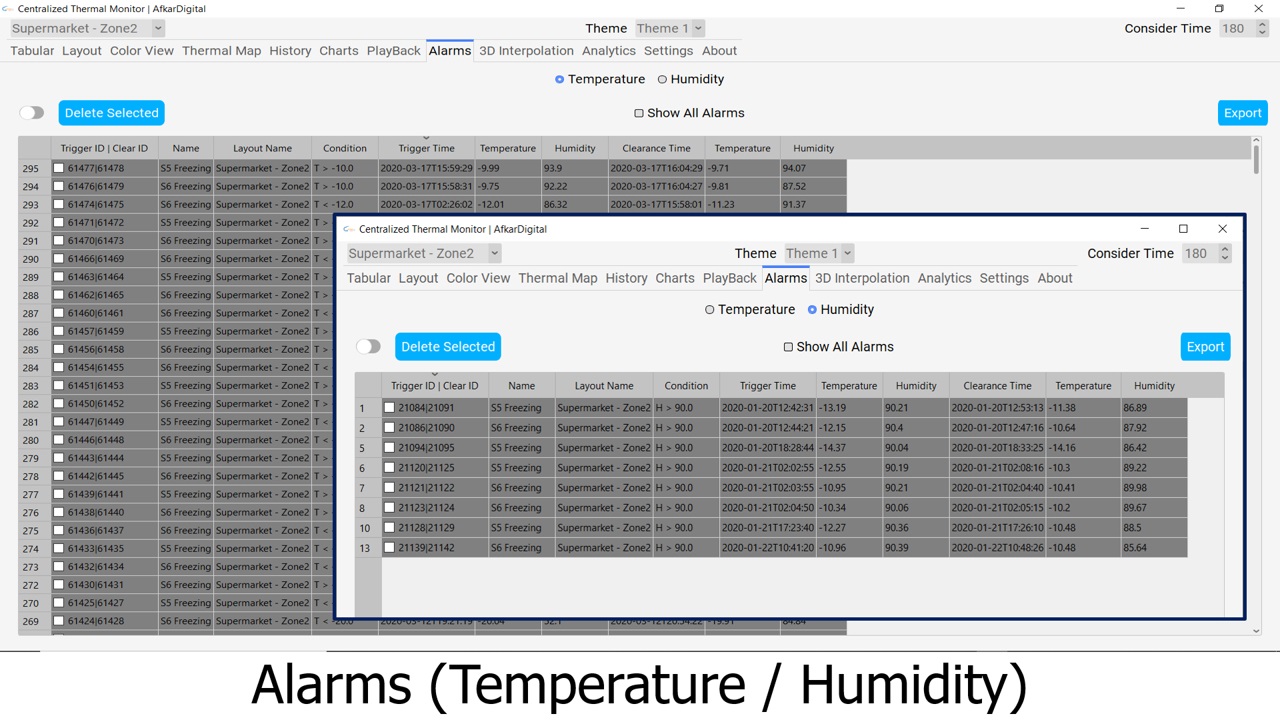

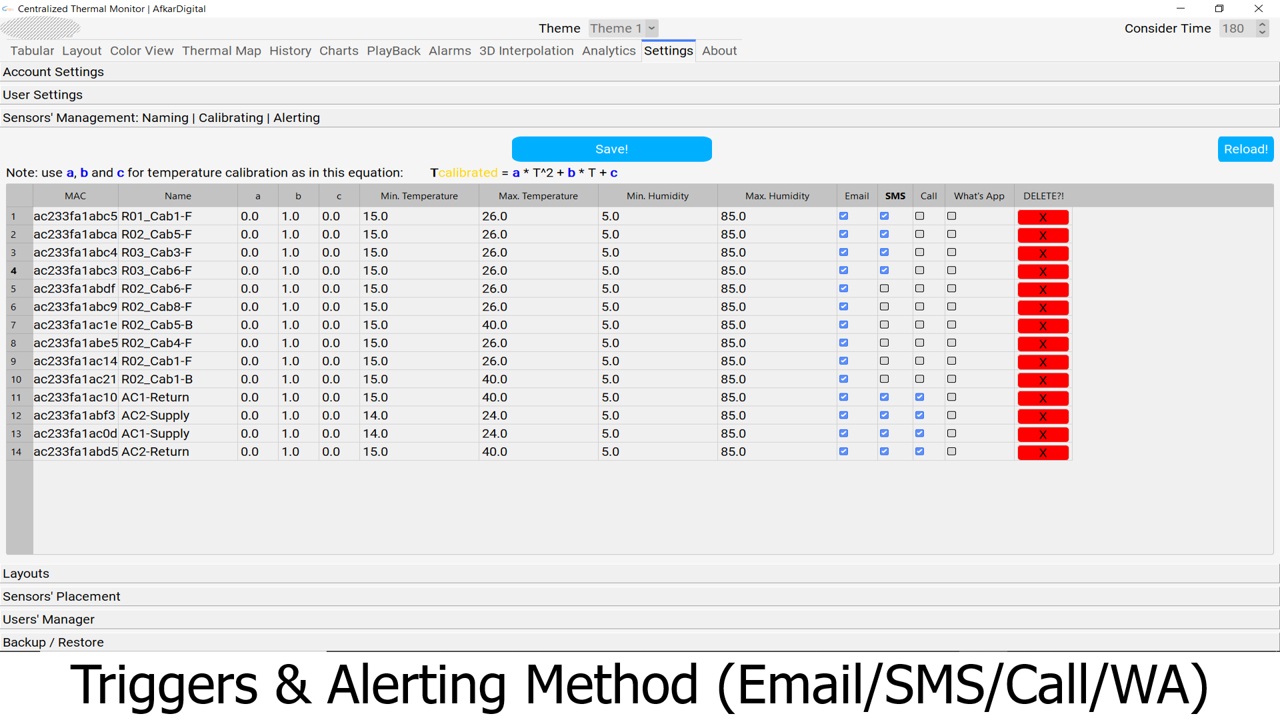

Configurable Alerts as per user

 

SMS

 

Email

 

WhatsApp

 

Phone Call with digital voice for immediate alerts

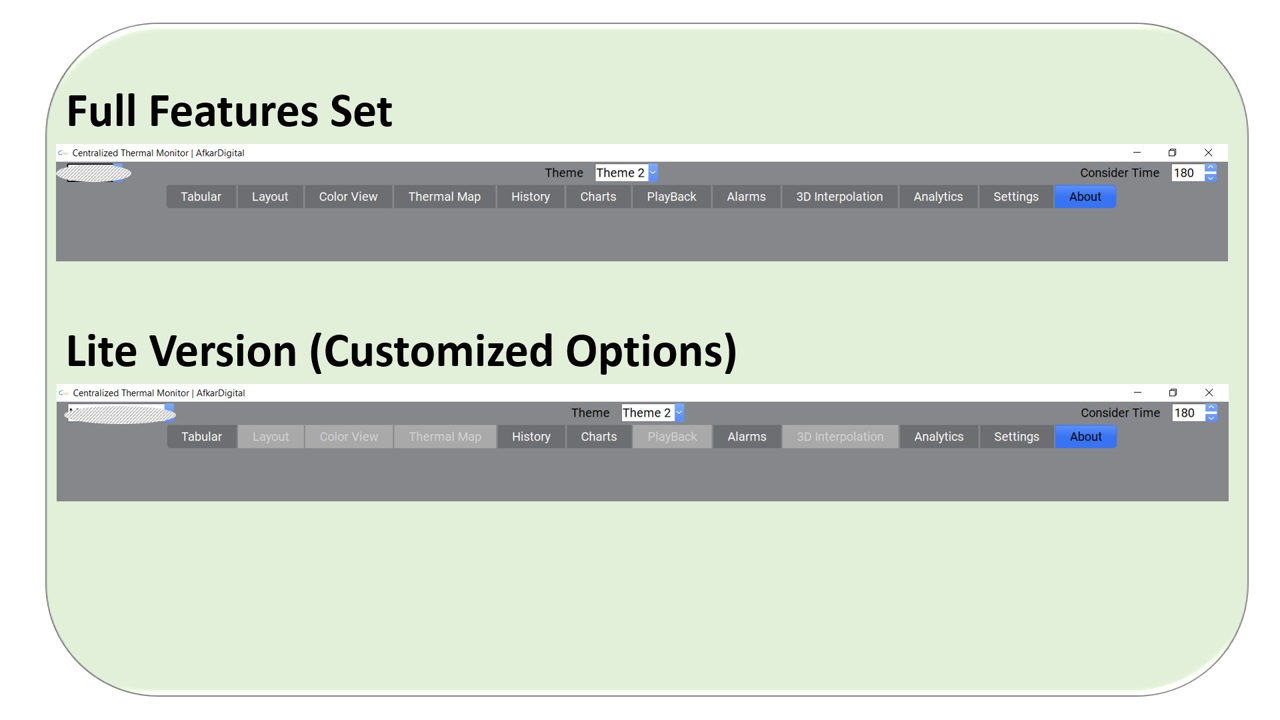

Choose between “Full Features Set” & “Lite Options”

 

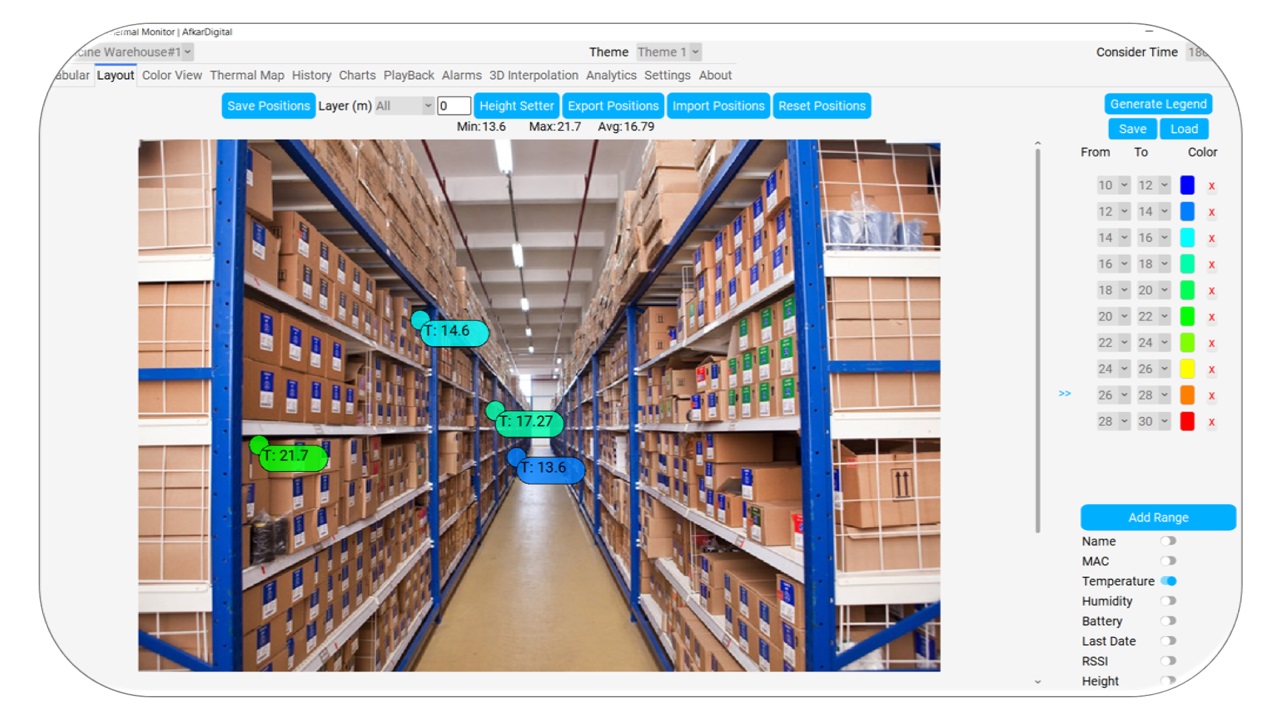

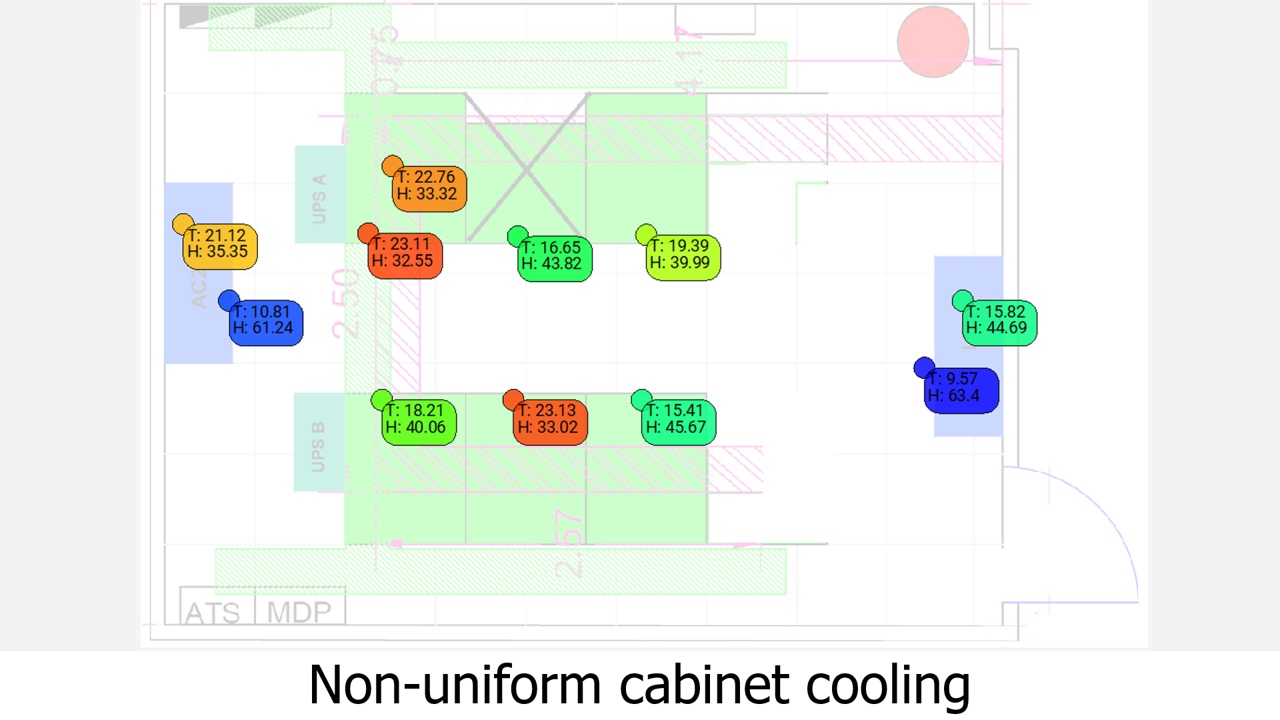

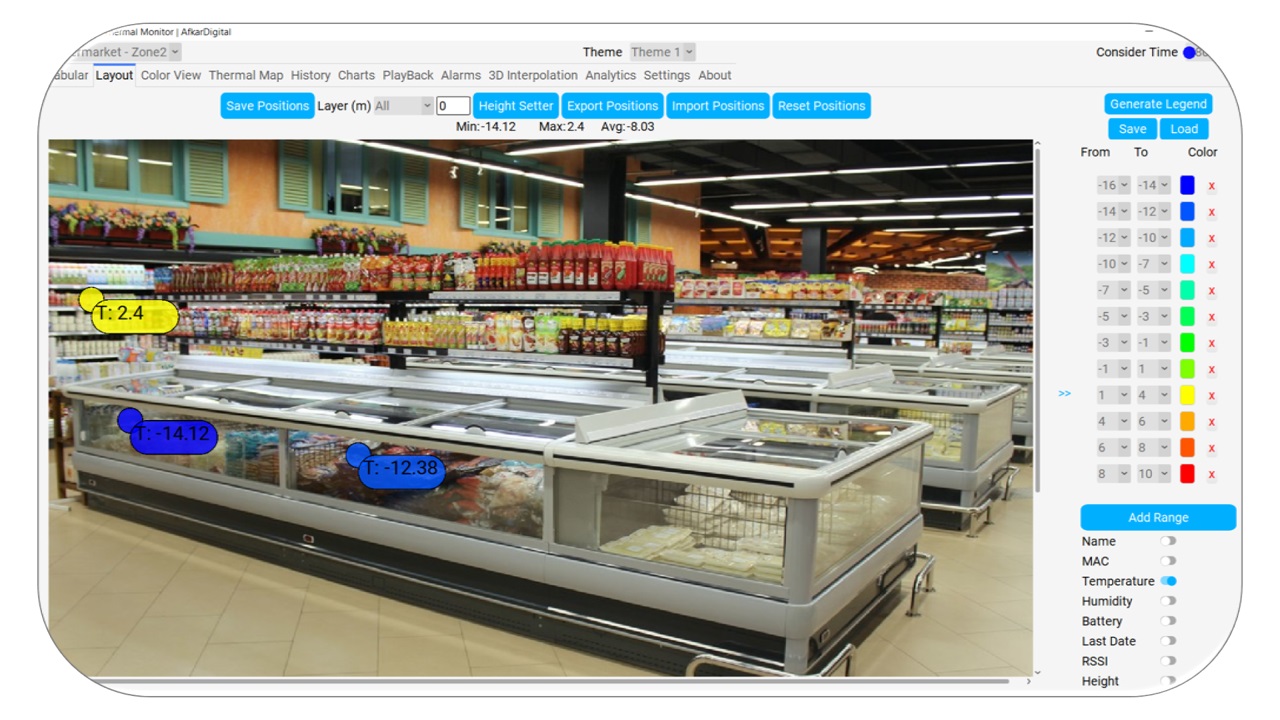

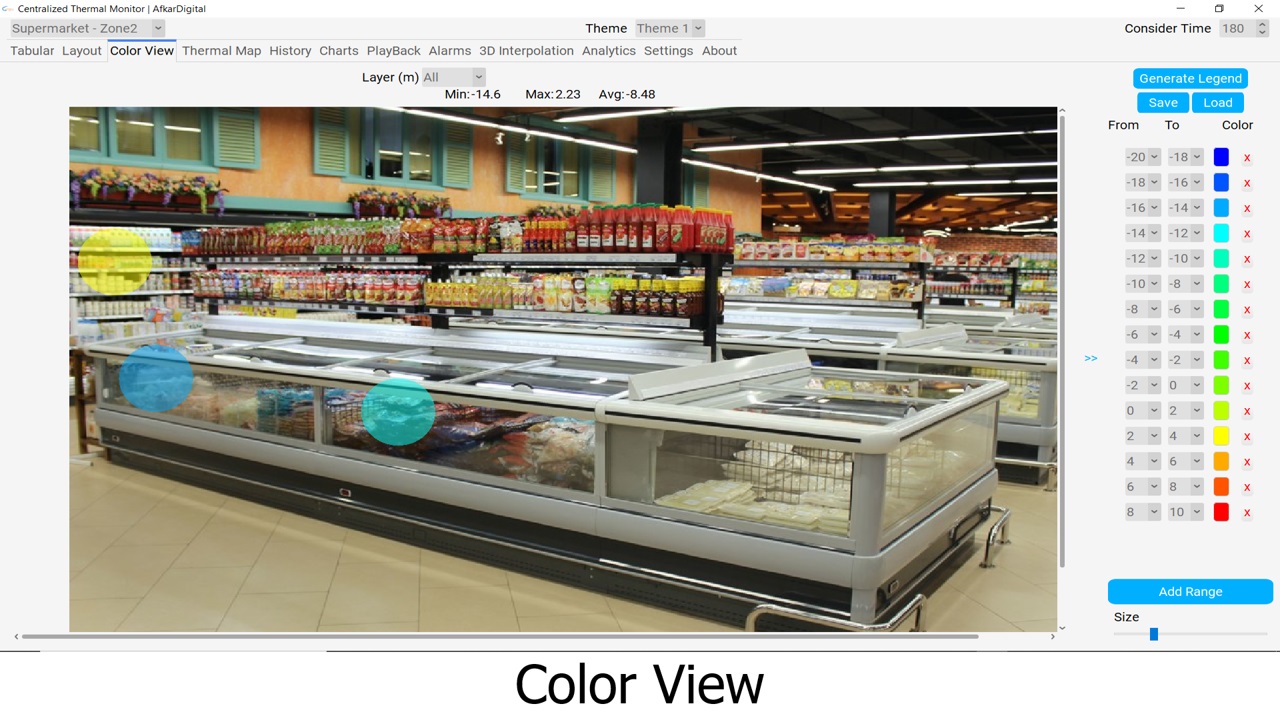

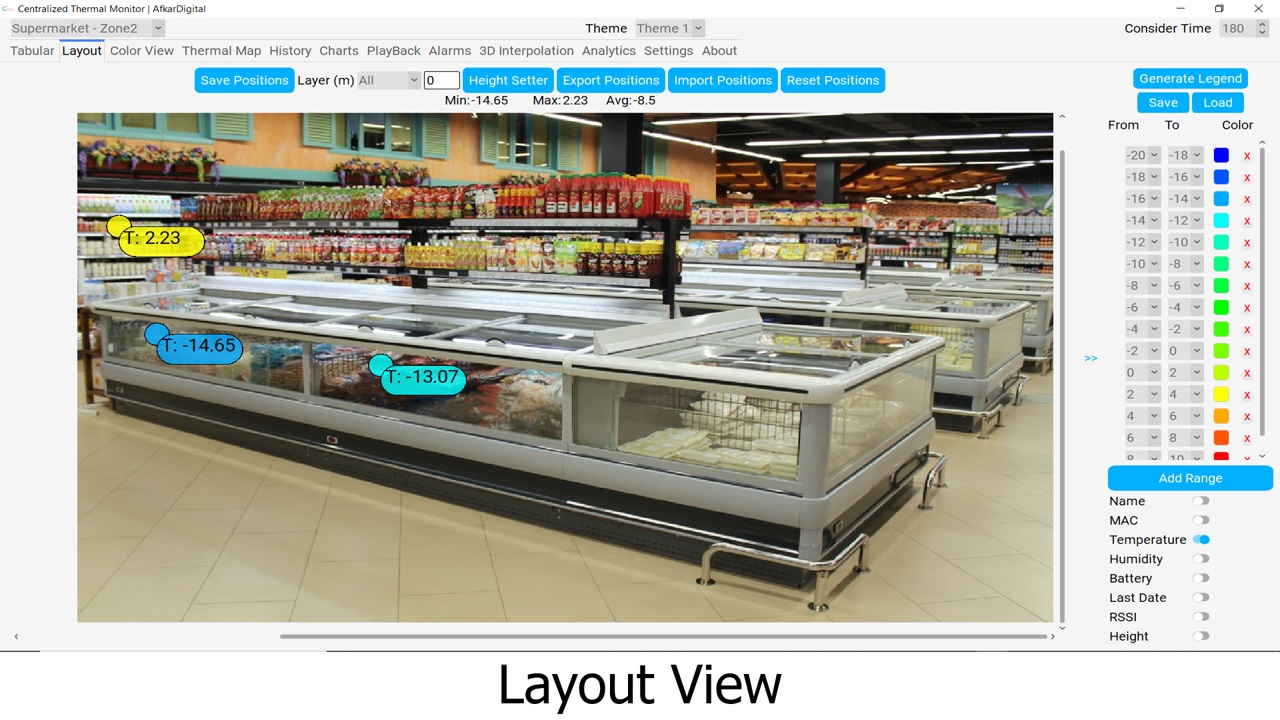

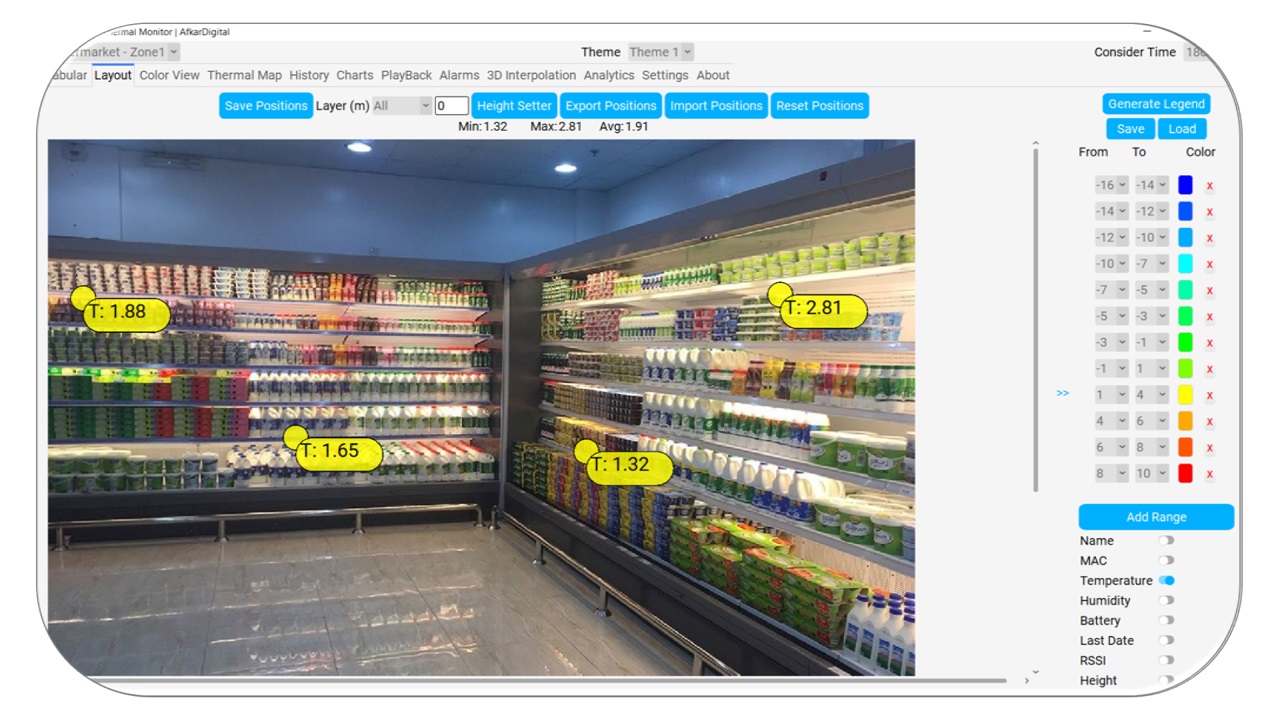

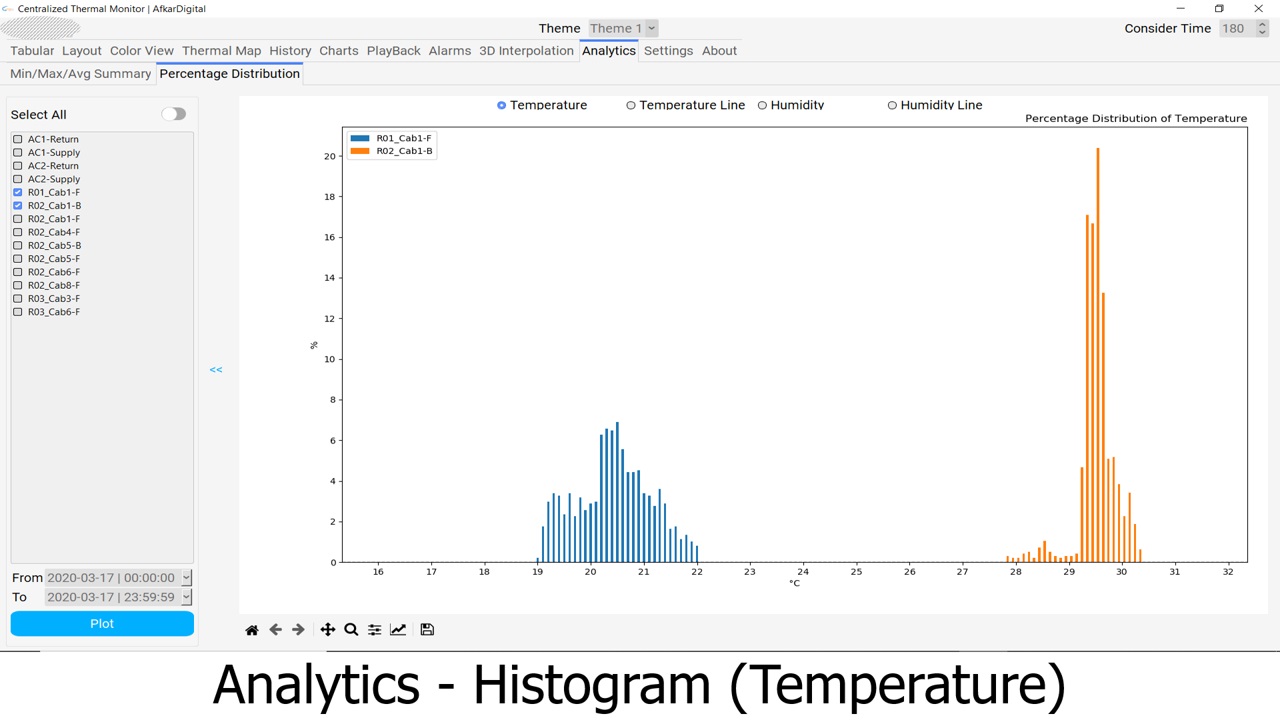

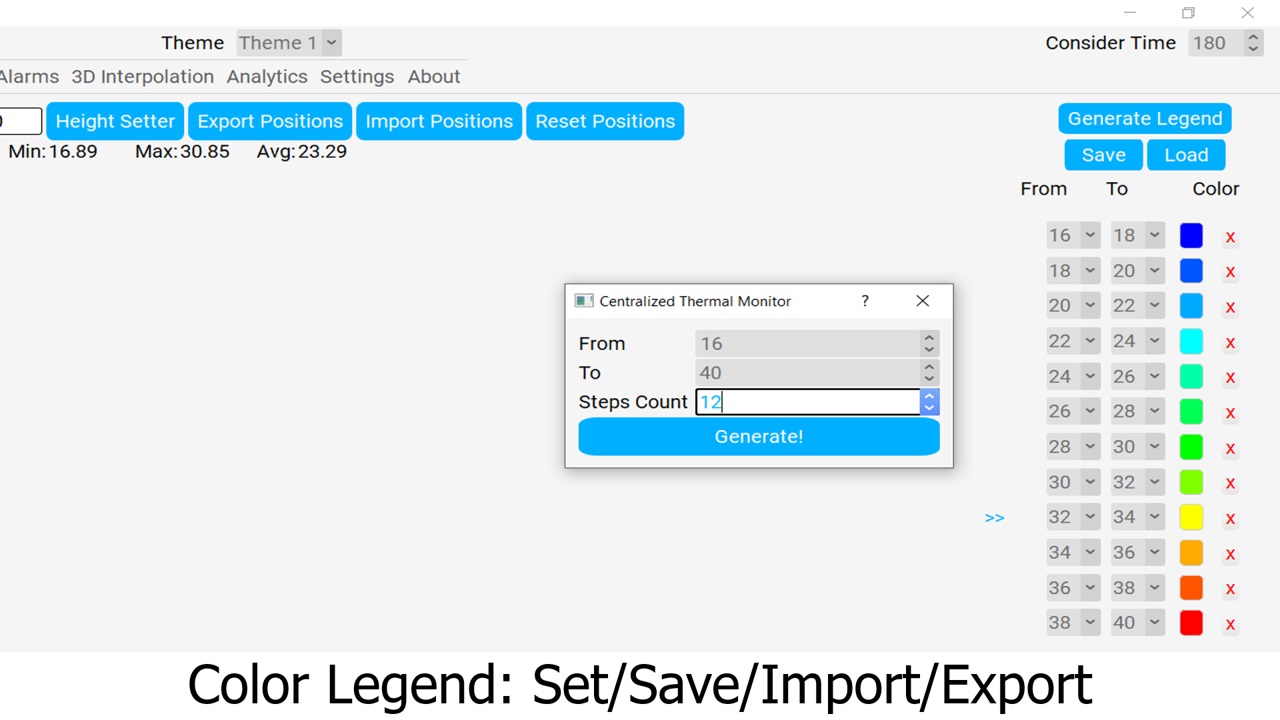

Full Features Set: with all options including Layout View/Color View/2D Thermal Map/ 3D Thermal Map / Playback

 

Lite Options: with customized options

Places commonly need Thermal Monitoring

 

Data Centers / Operators Core Buildings

 

Medicine Warehouses

 

Fruit/Vegetable Warehouses

 

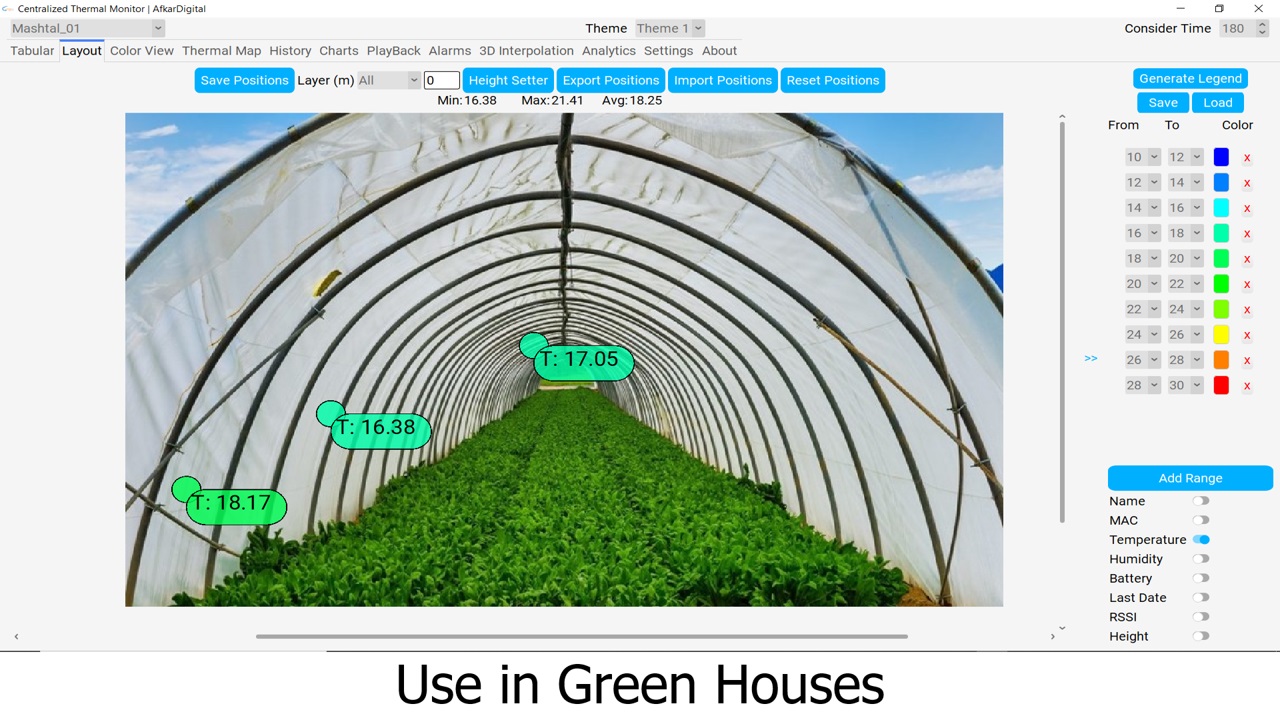

Green Houses & Farms

 

Malls & Supermarkets

 

Pharmacies & Labs

 

Meeting & Seminar Rooms

 

Classrooms

 

Hospitals and others...

Get Permanent System

Monitor your Data Centers 24/7    Check Temperature Set Point    Evaluate Temperature Distribution    Highlight Over-cooled & Hot spots    Optimize HVAC/Cooling System    Reduce Electricity Bill

Ask for Thermal Audit Service (with Recommendation)

System and sensors are made ready in a couple of hours    Evaluate the Thermal Performance of your Center    Highlight Over-cooled & Hot spots    Optimize HVAC

Pls scan below and watch our interesting video about Central Thermal Monitoring System
