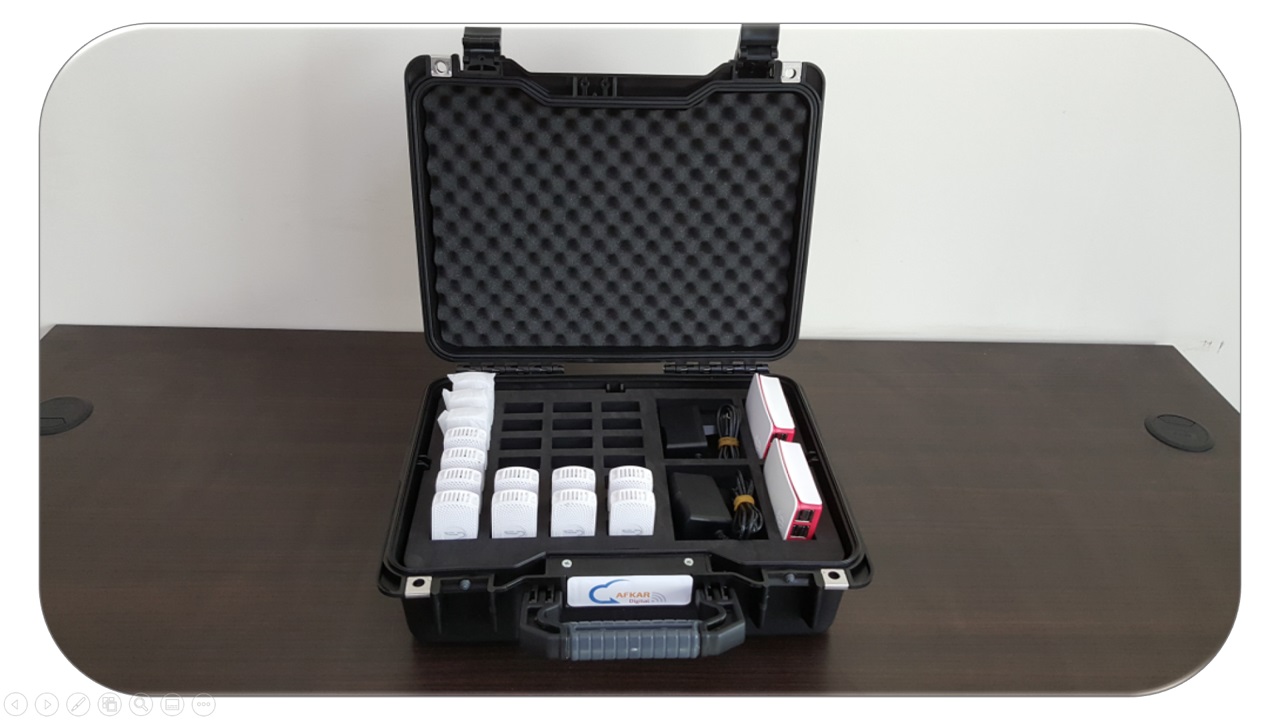

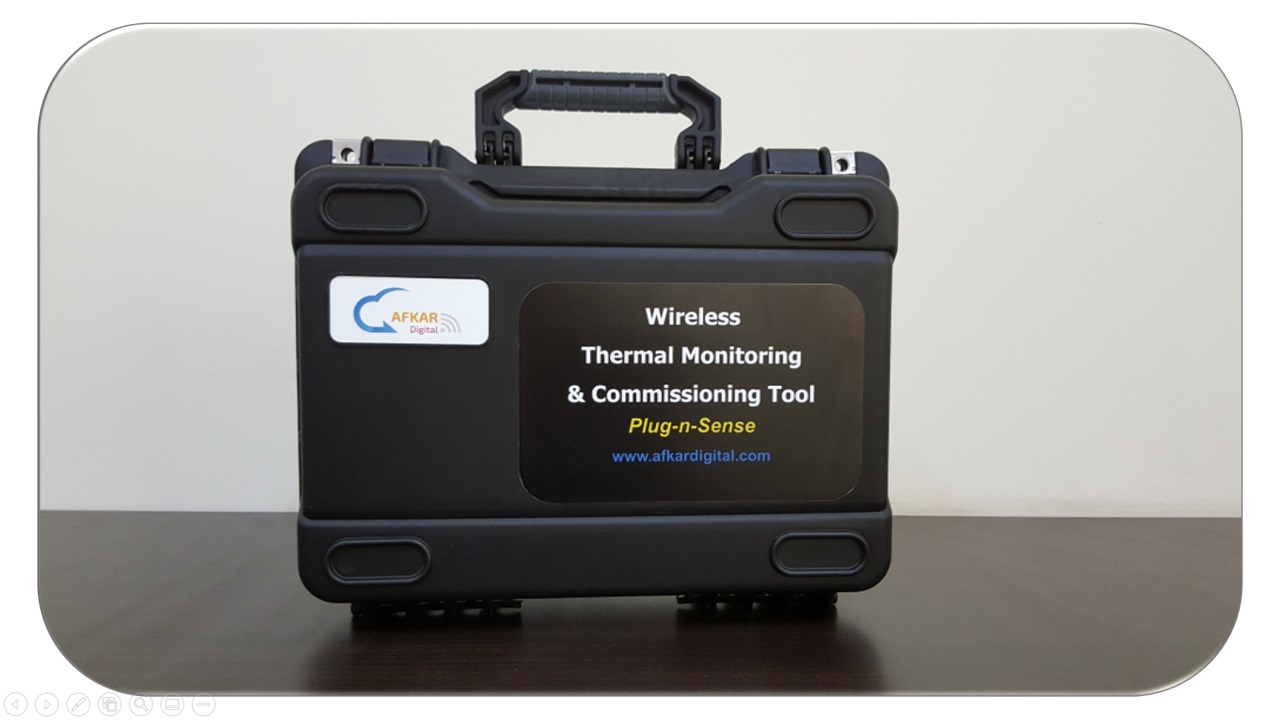

Wireless Thermal Monitoring and Commissioning Tool


Overview

Unlike other wired systems, our Wireless Thermal Monitoring & Commissioning Tool uses wireless Plug-n-Sense small-size temperature & humidity sensors.

The sensors can be easily mounted at cabinet front, cabinet back, AC supply, AC return, over any shelve or rack, or at any desired point, inside a refrigerator or even onside a freezer.

This flexibility enables better Auditing and Validation, and in turn better Optimization of the thermal distribution inside critical places such as Data Centers, Medicine Warehouses, Food Storage Rooms, etc.

The thermal measurements are uploaded to a local PC or over the internet to the cloud.

Legacy systems monitor the temperature at few points using wired sensors, and once mounted it is difficult to relocate due to the installed wires.

The beauty of our solution is that it gathers real measurements from wireless sensors which are mounted at the desired points. No simulations.





Tool Distinguishing Features



No wires, all wireless




Swiss-made Sensors measuring temperature and humidity, accuracy ±0.2°C

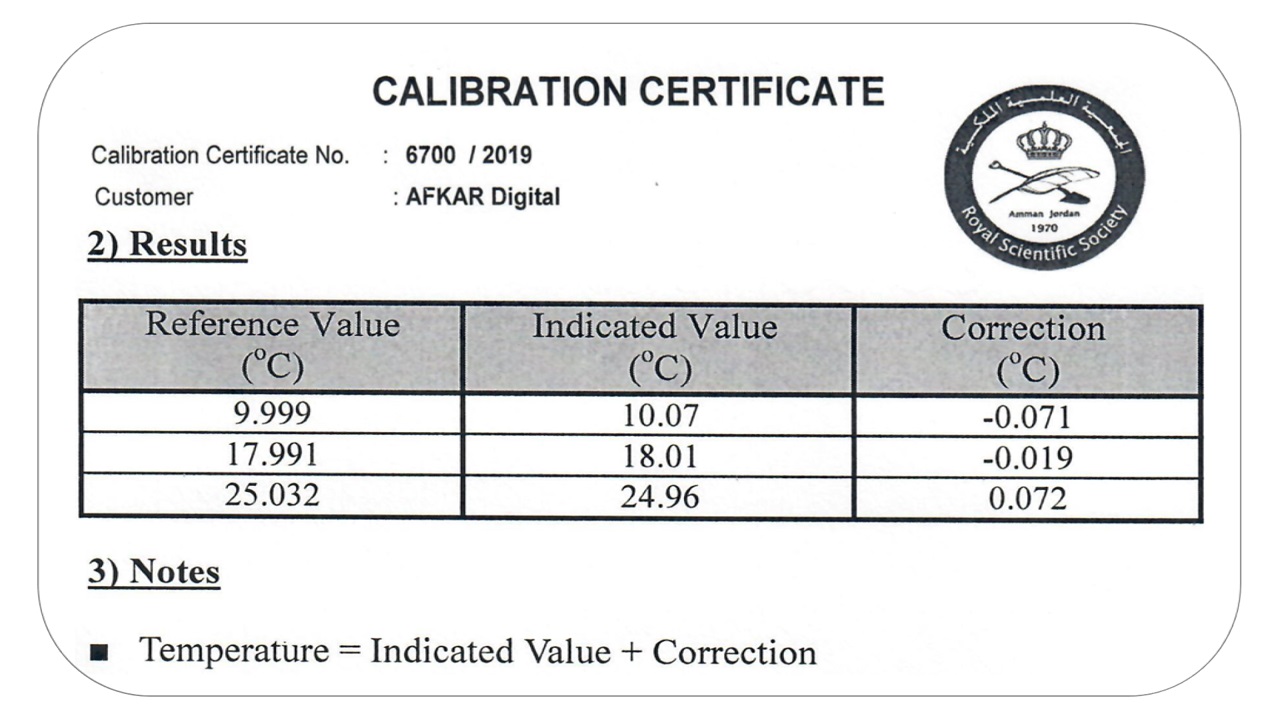

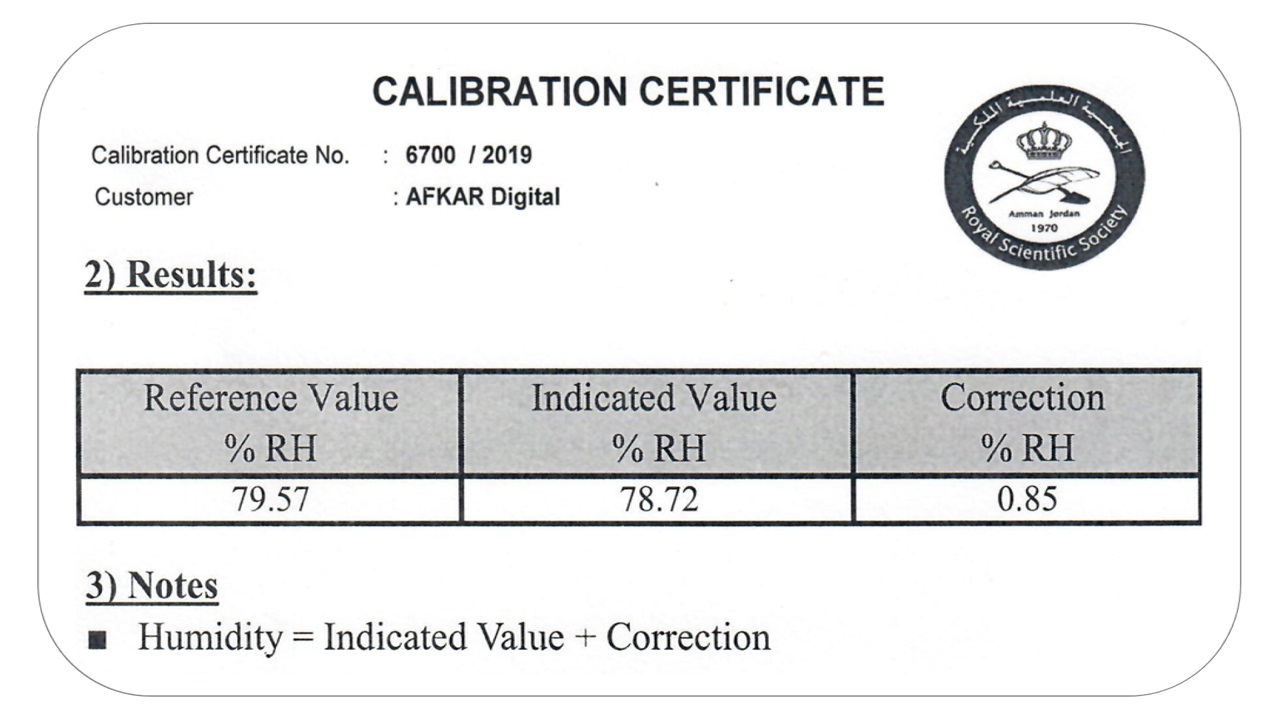

Highly accurate as confirmed from the samples tested by the Metrology Department in Royal Scientific Society

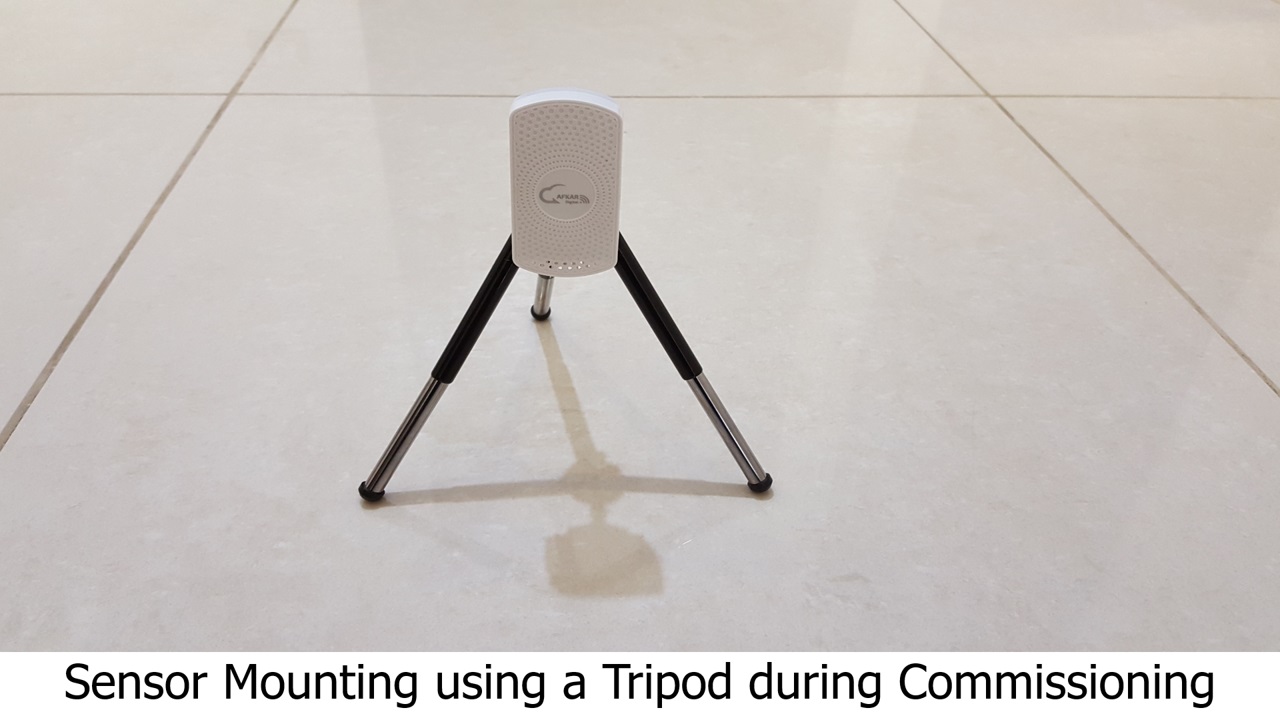

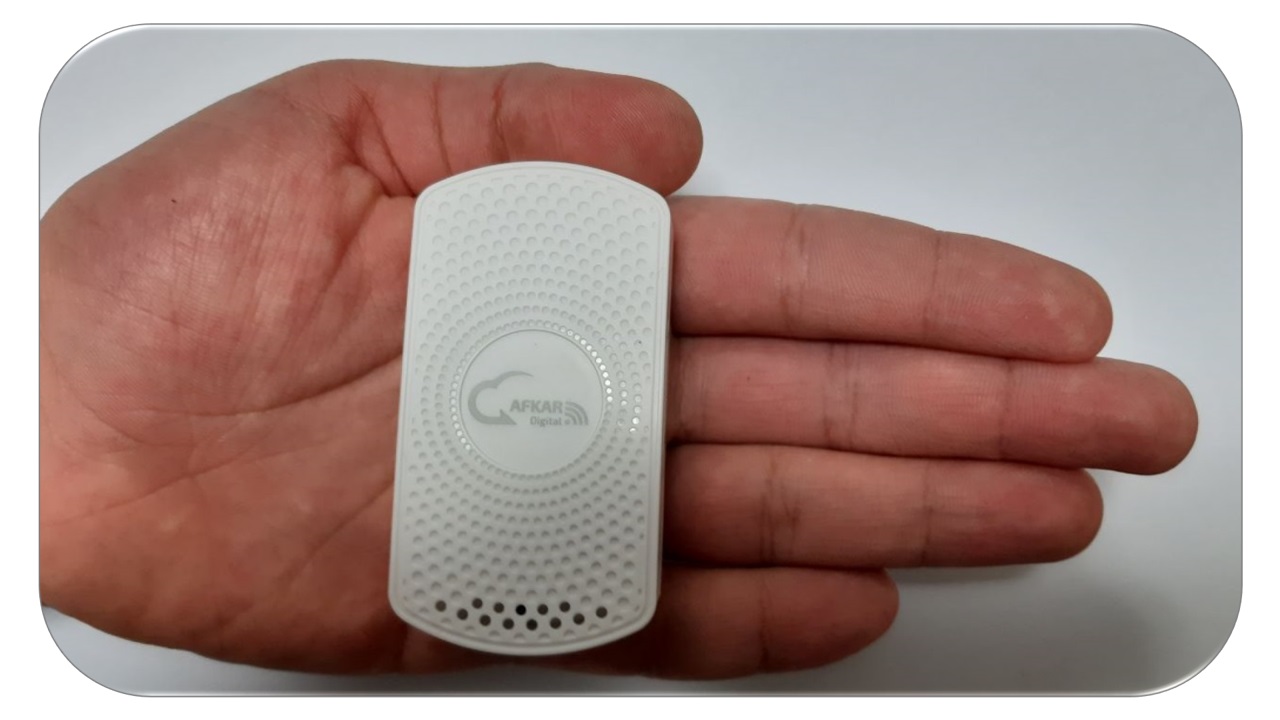

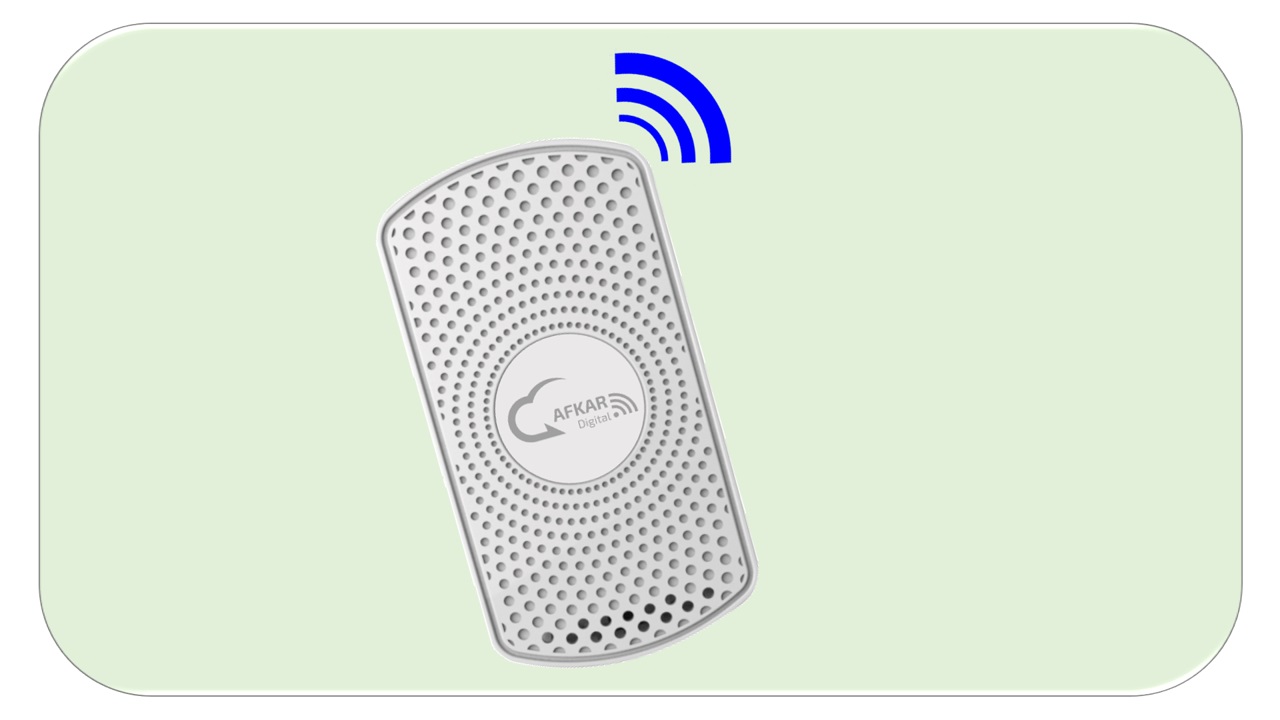

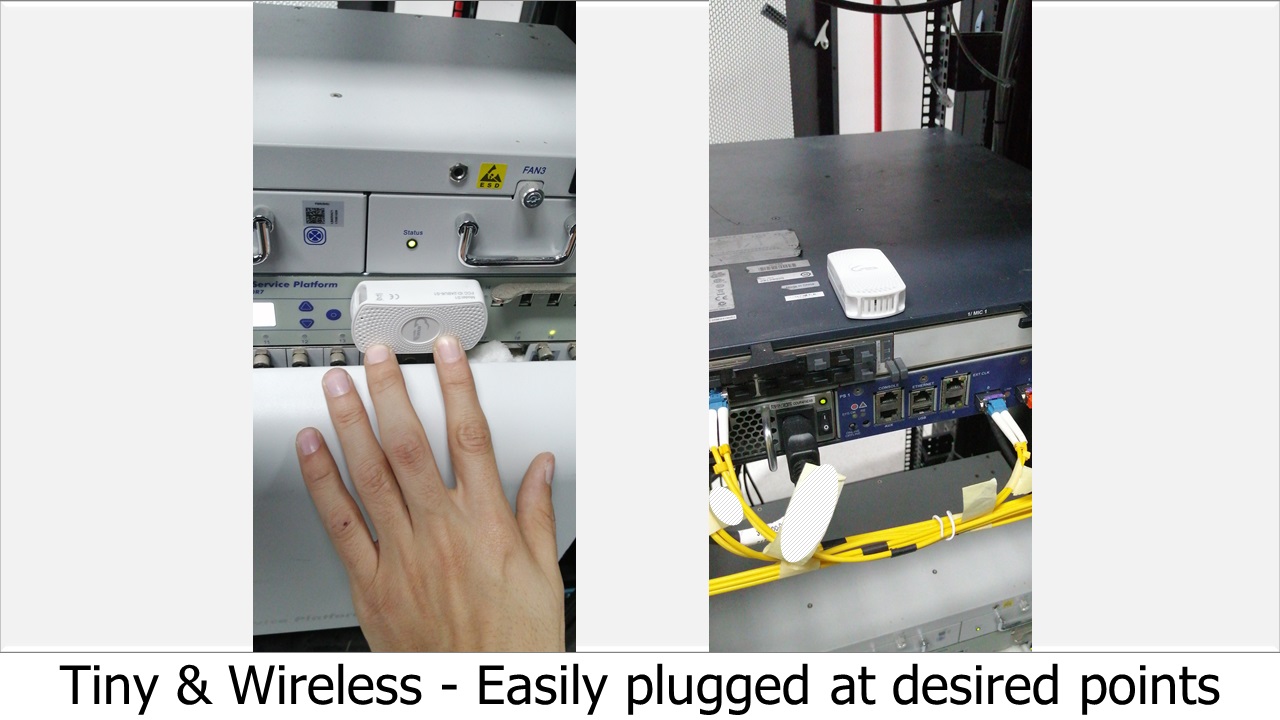

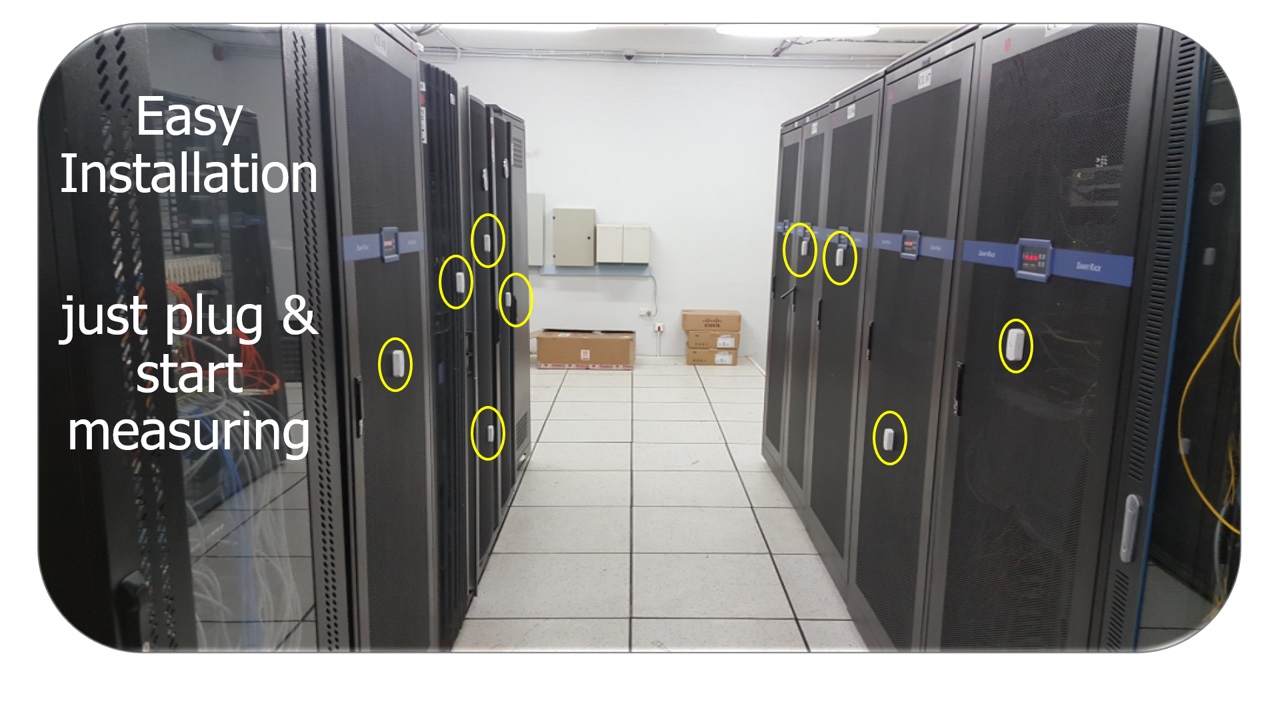

Small size. Easily plugged at desired points




Flexibility in relocating the sensor to any point

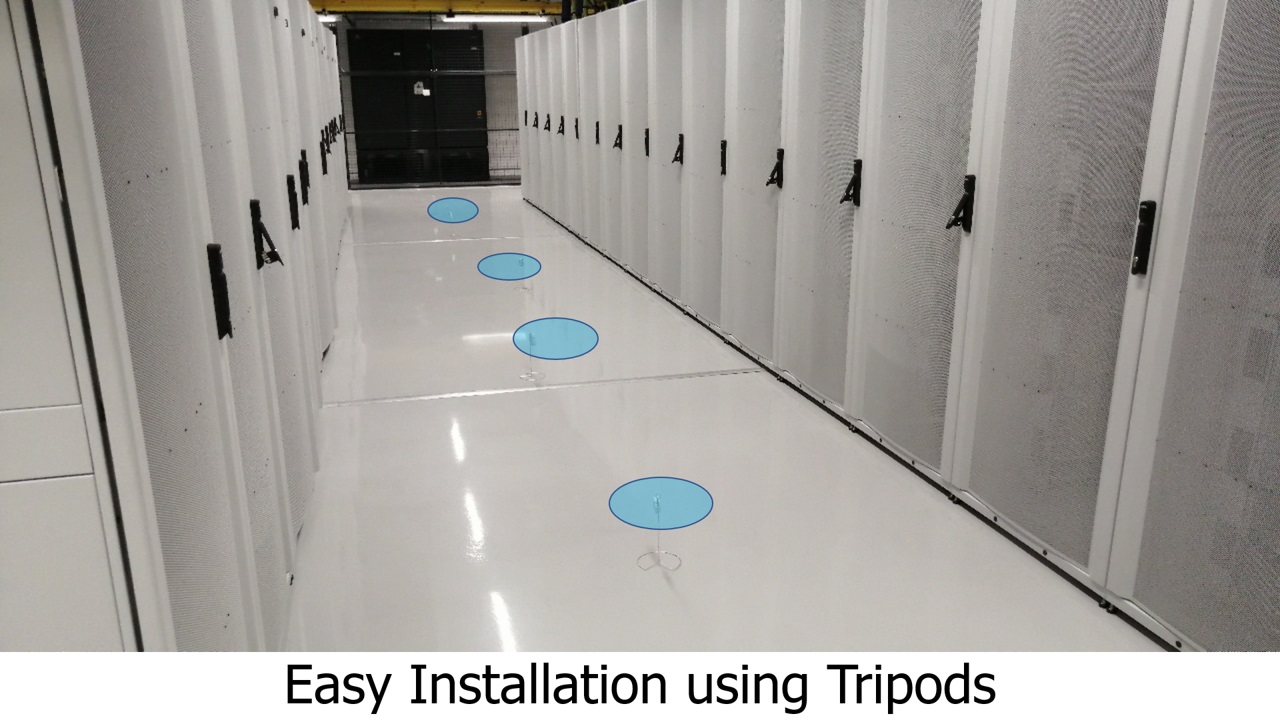

Quick Installation in a couple of hours




2~3year replaceable battery




Centralized Remote Monitoring (multiple distant locations can be monitored from same Application)

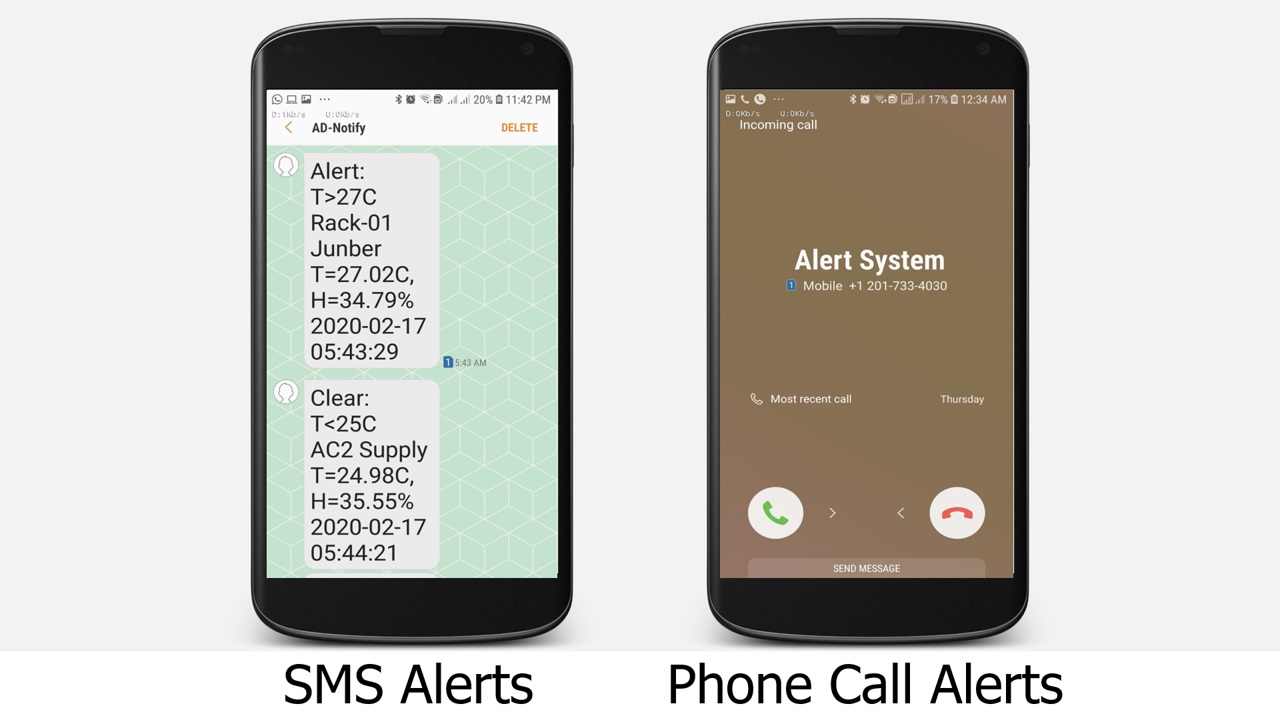

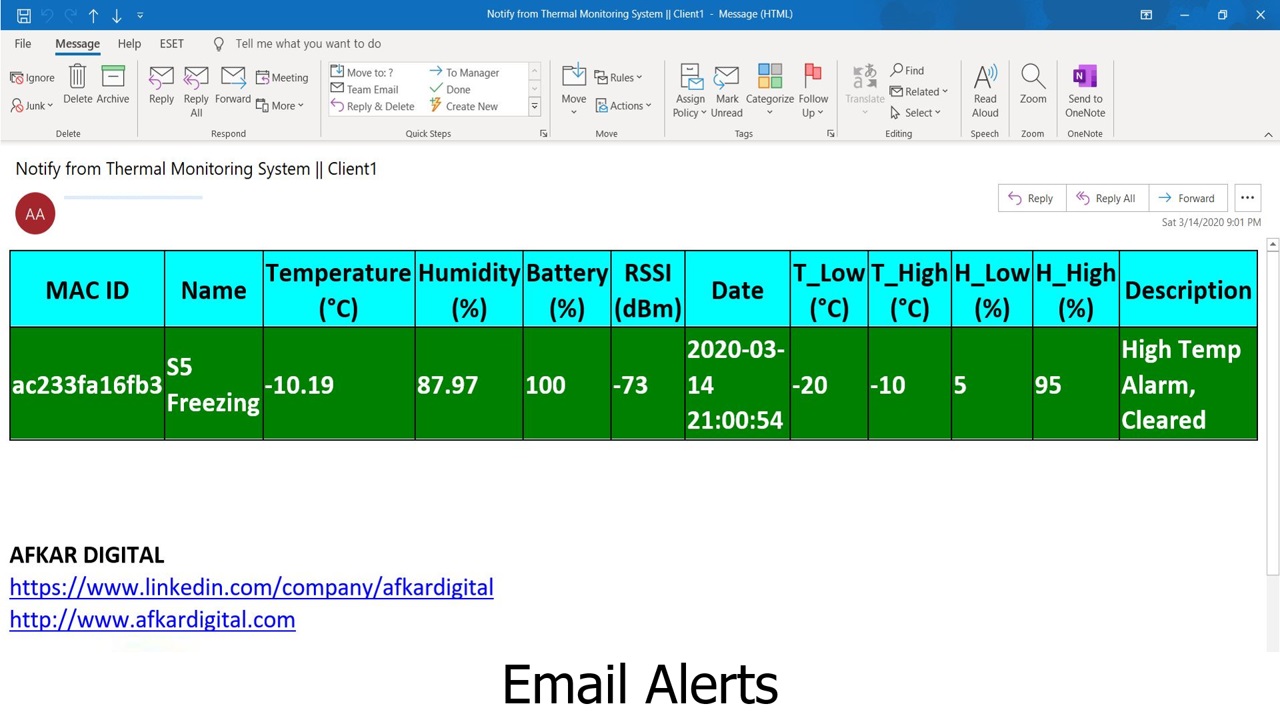

Alerts are notified automatically via Email, SMS, WA, and Phone Calls with digital voice for immediate alerts

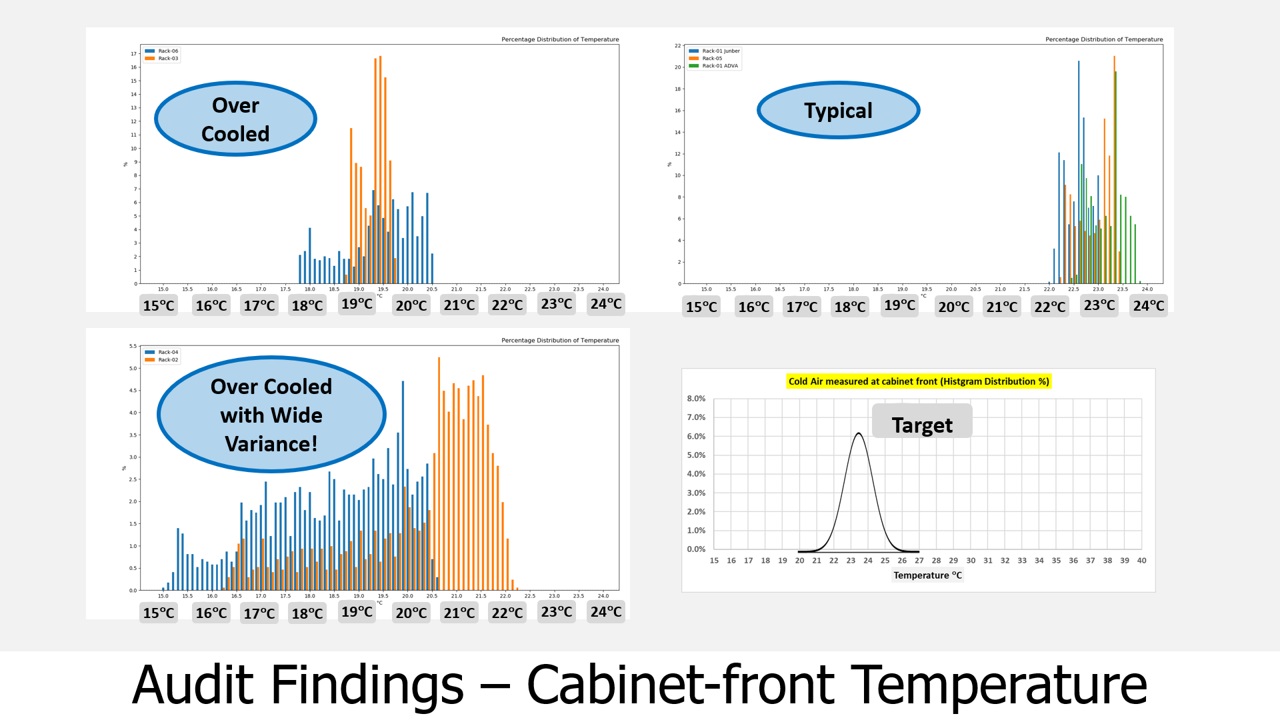

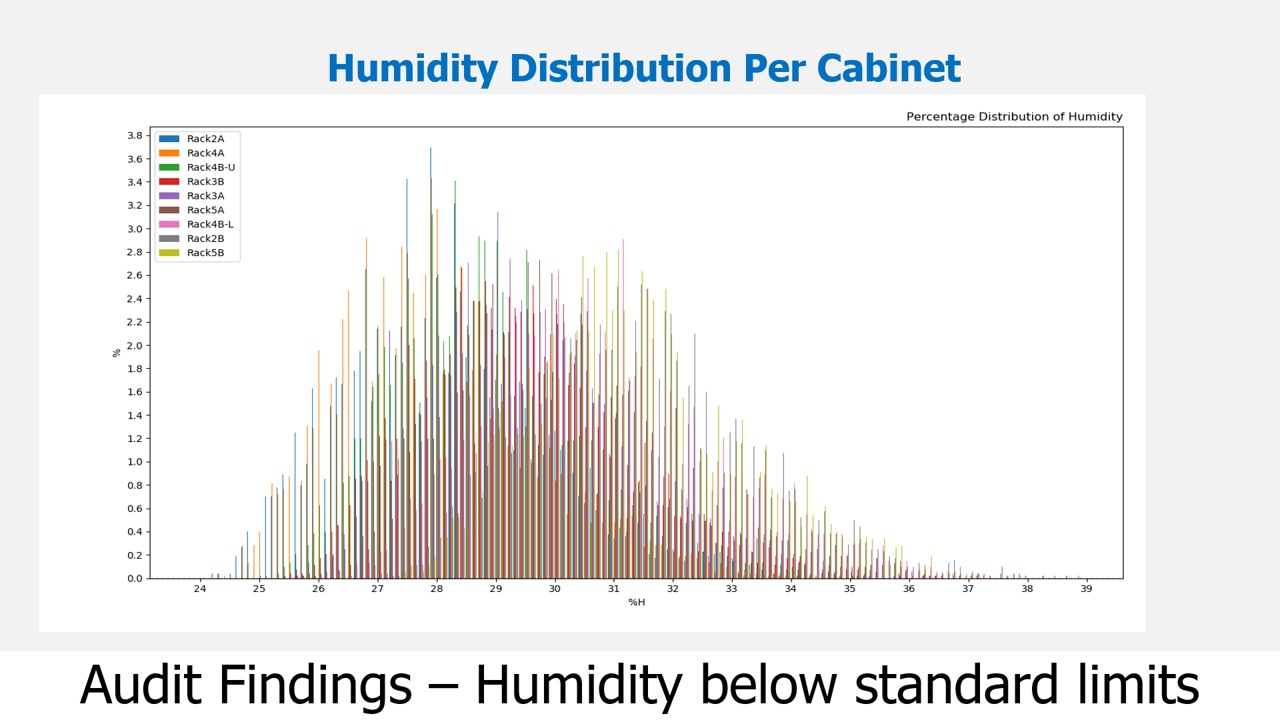

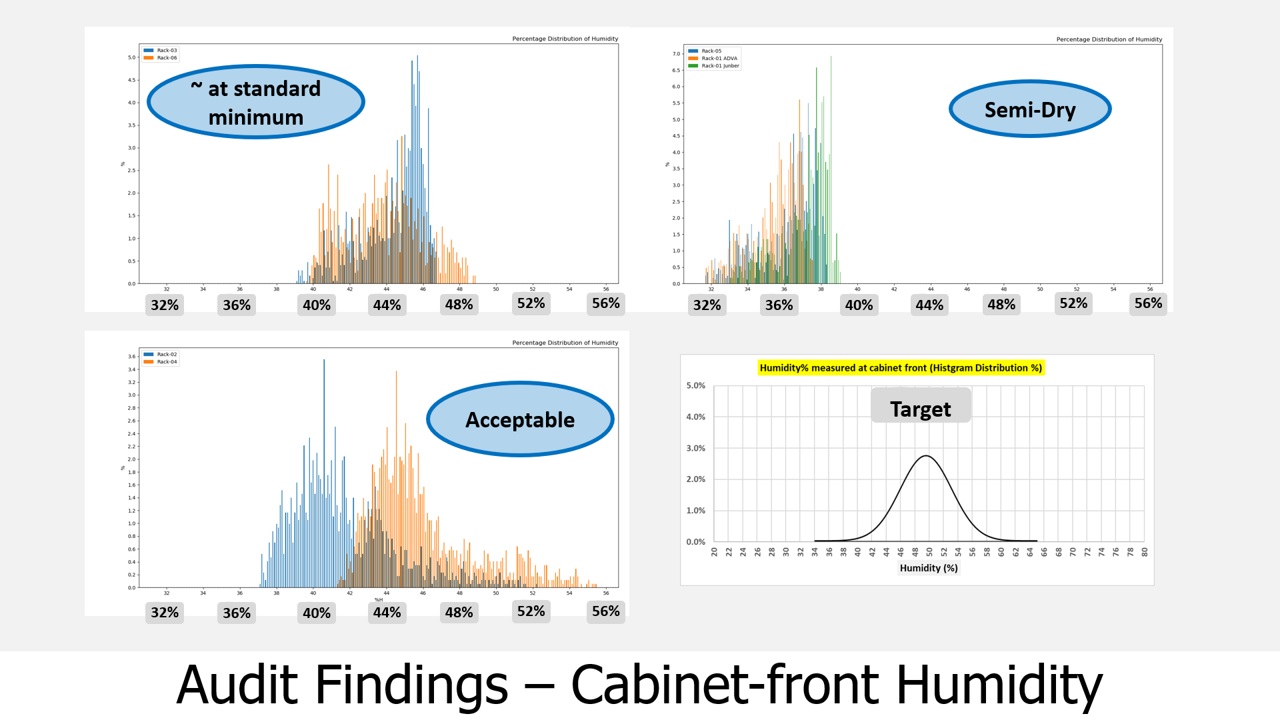

Real-case Findings & Highlights

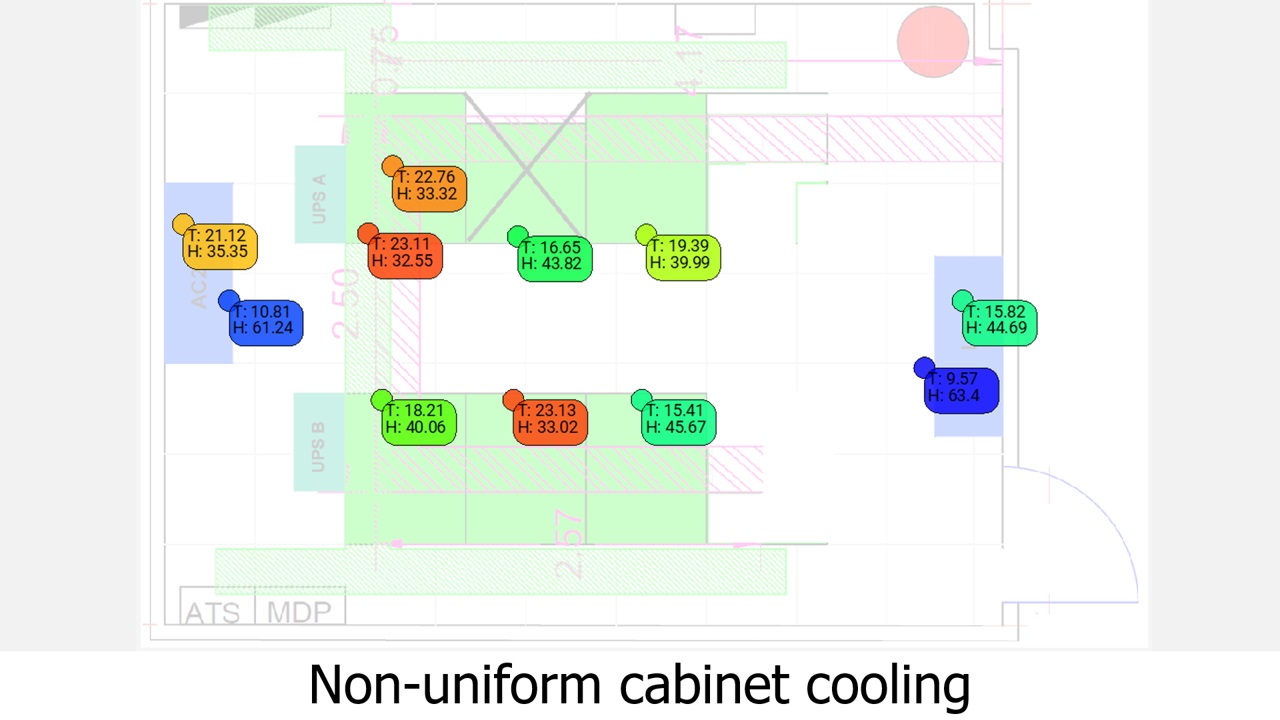

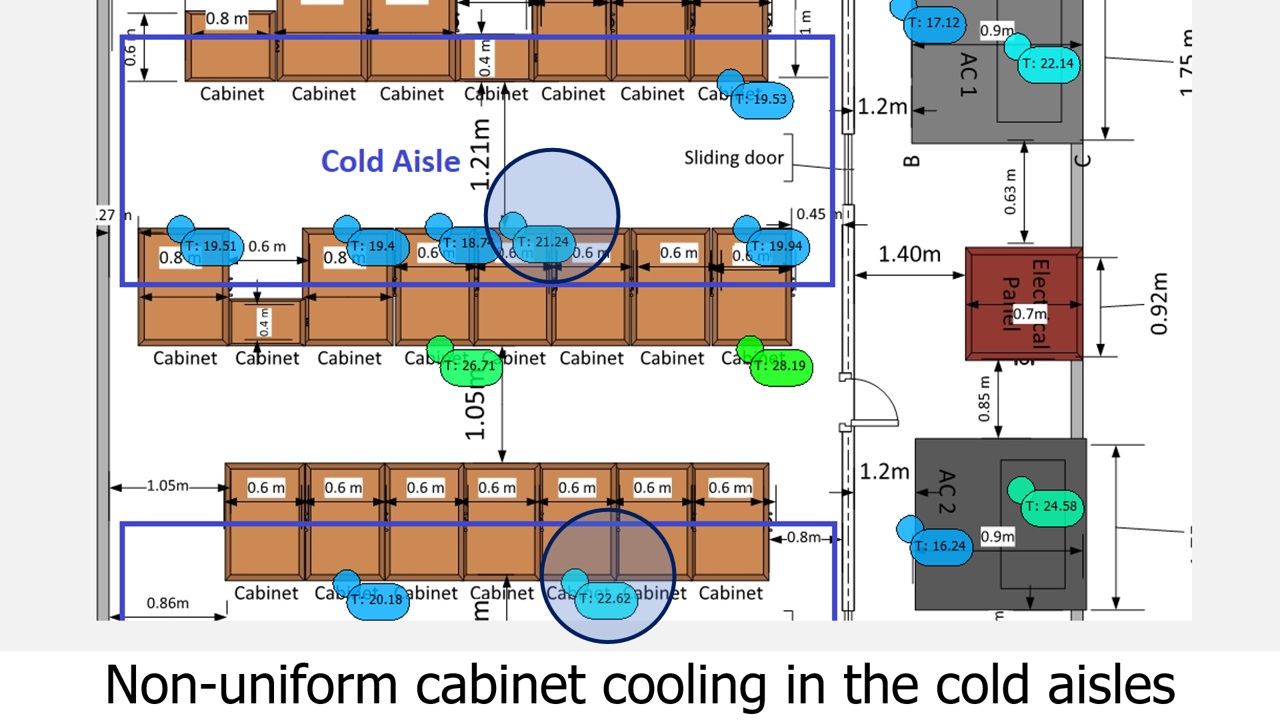

Non-uniform cabinet cooling

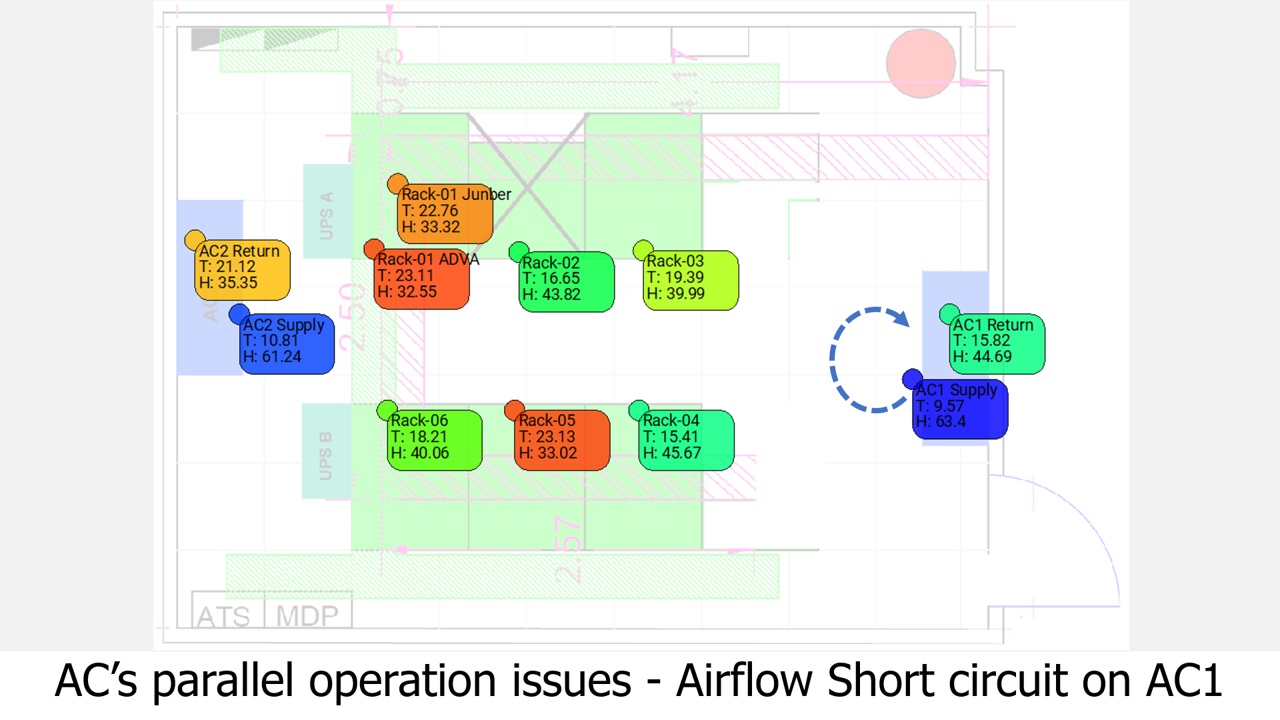

Issues related to AC parallel operation




Unbalanced cooling distribution

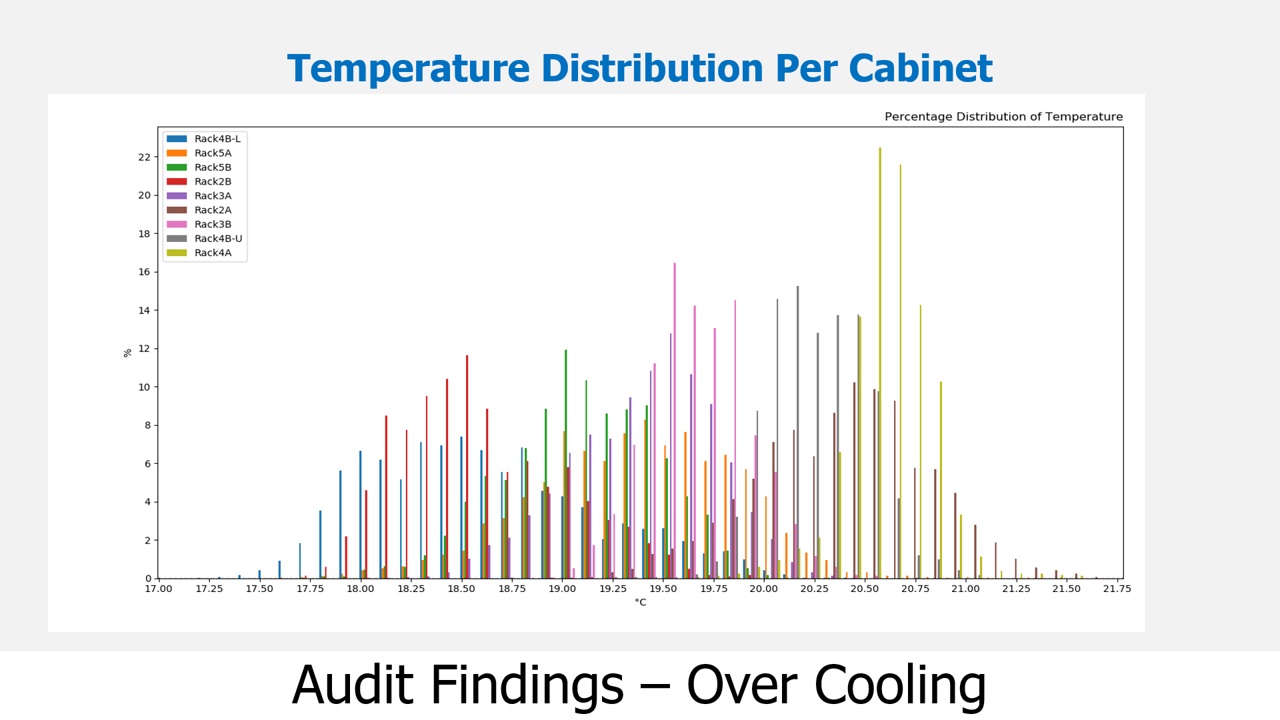

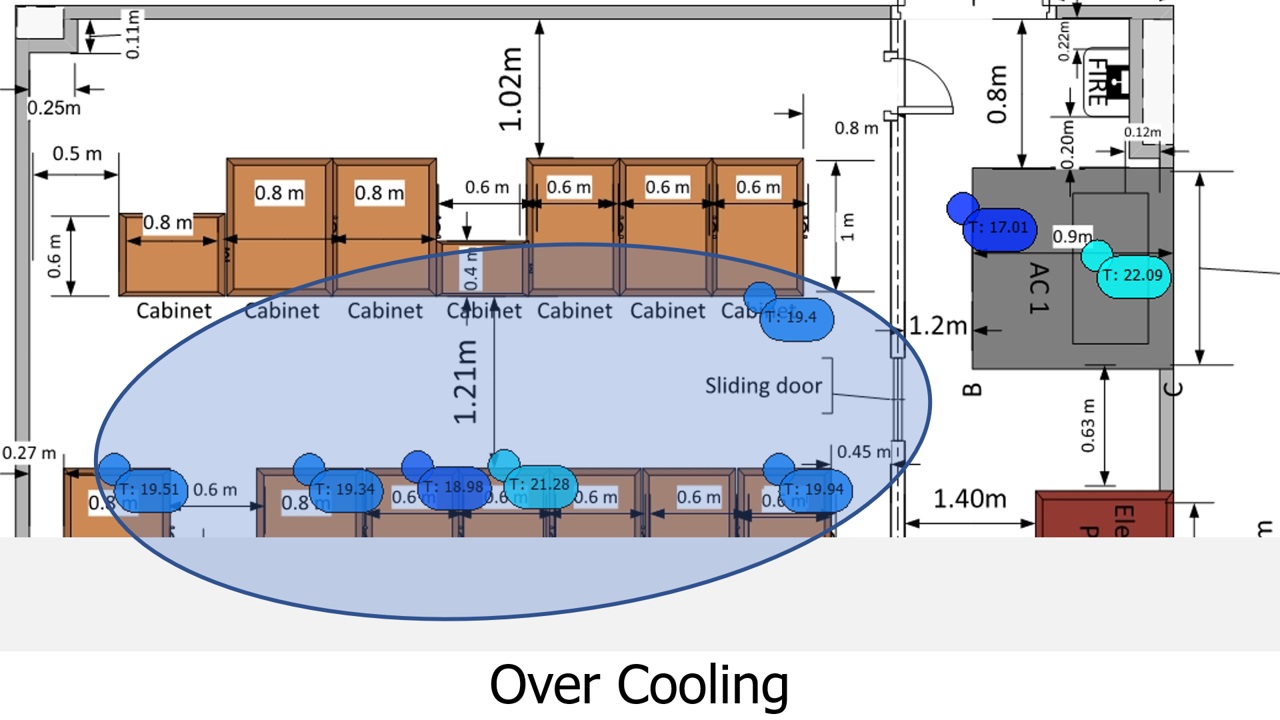

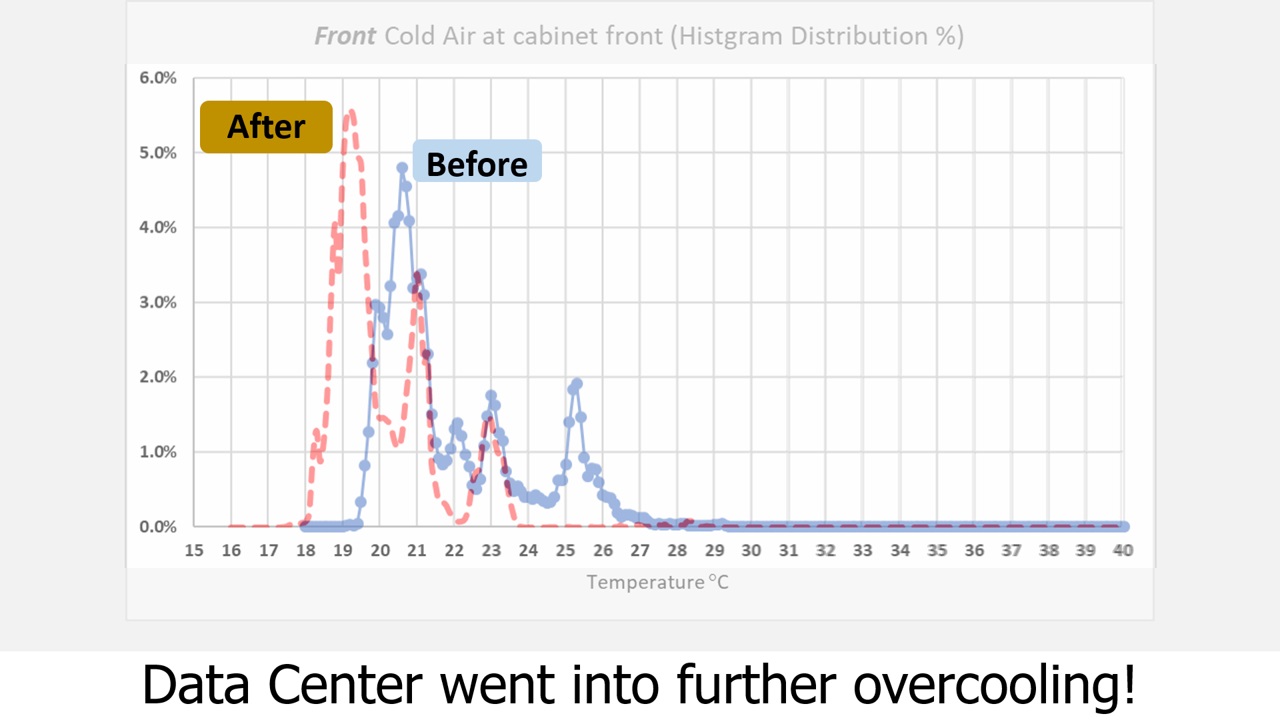

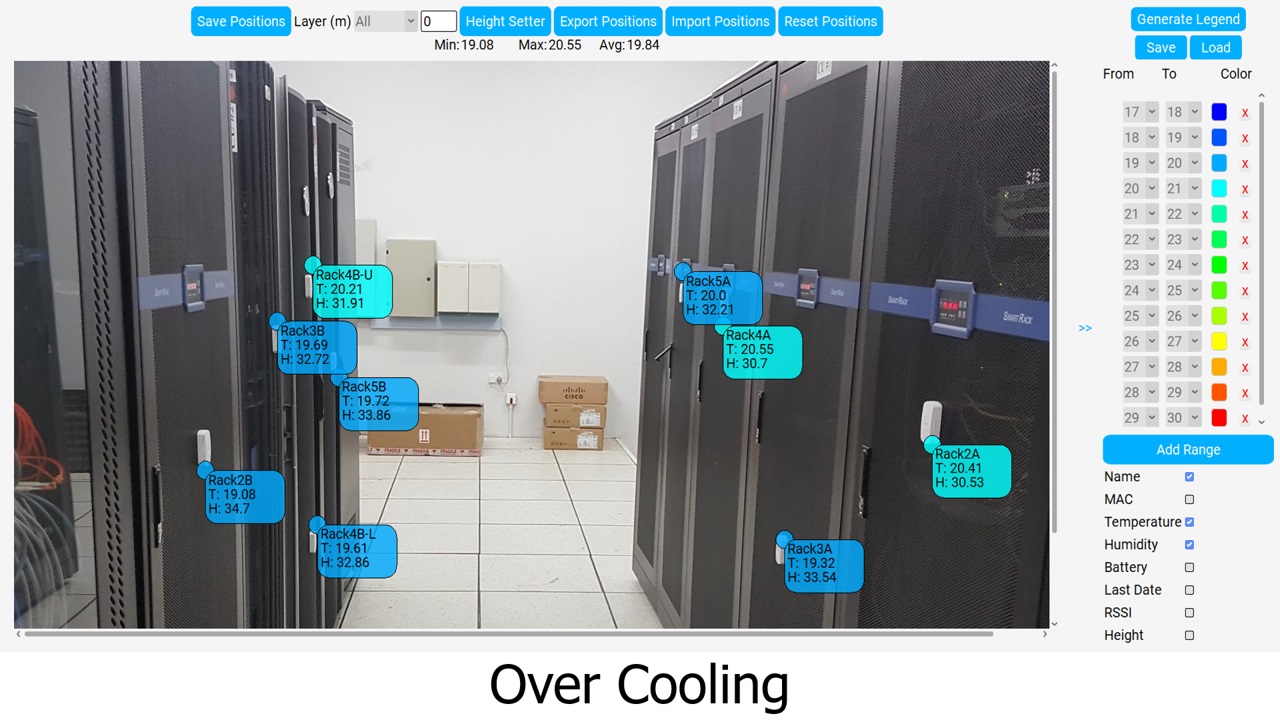

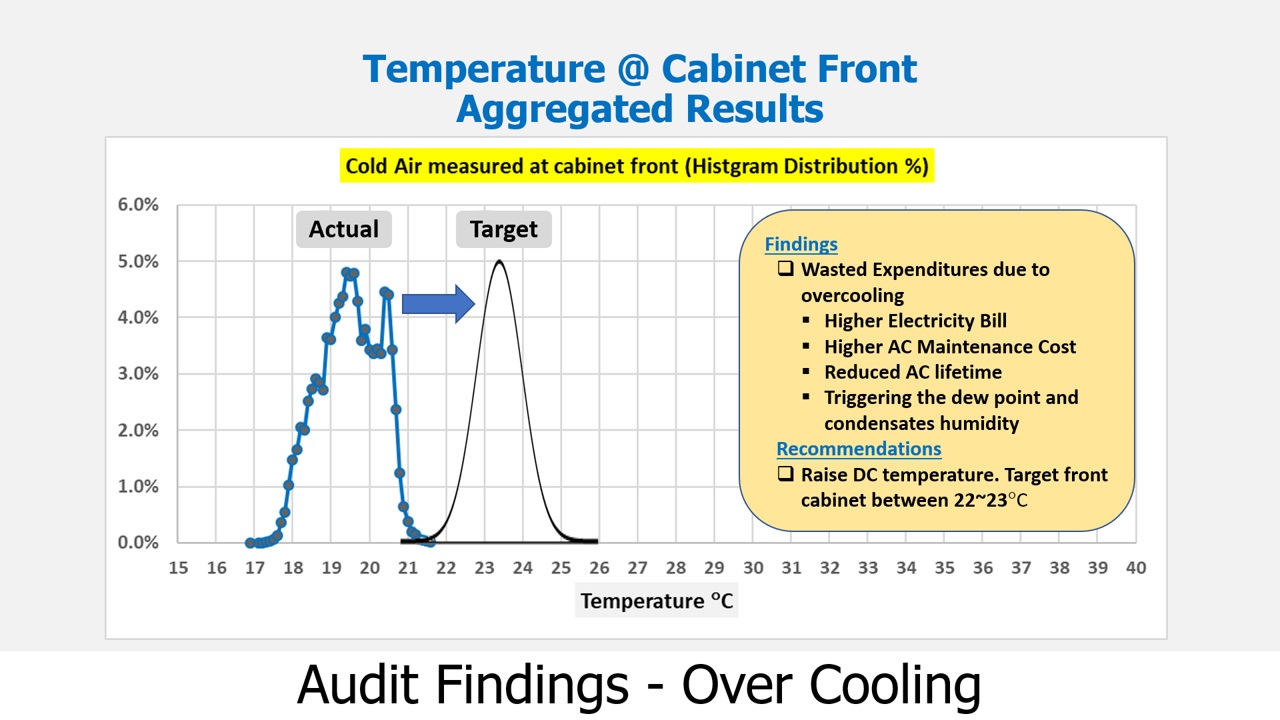

Over-cooled areas

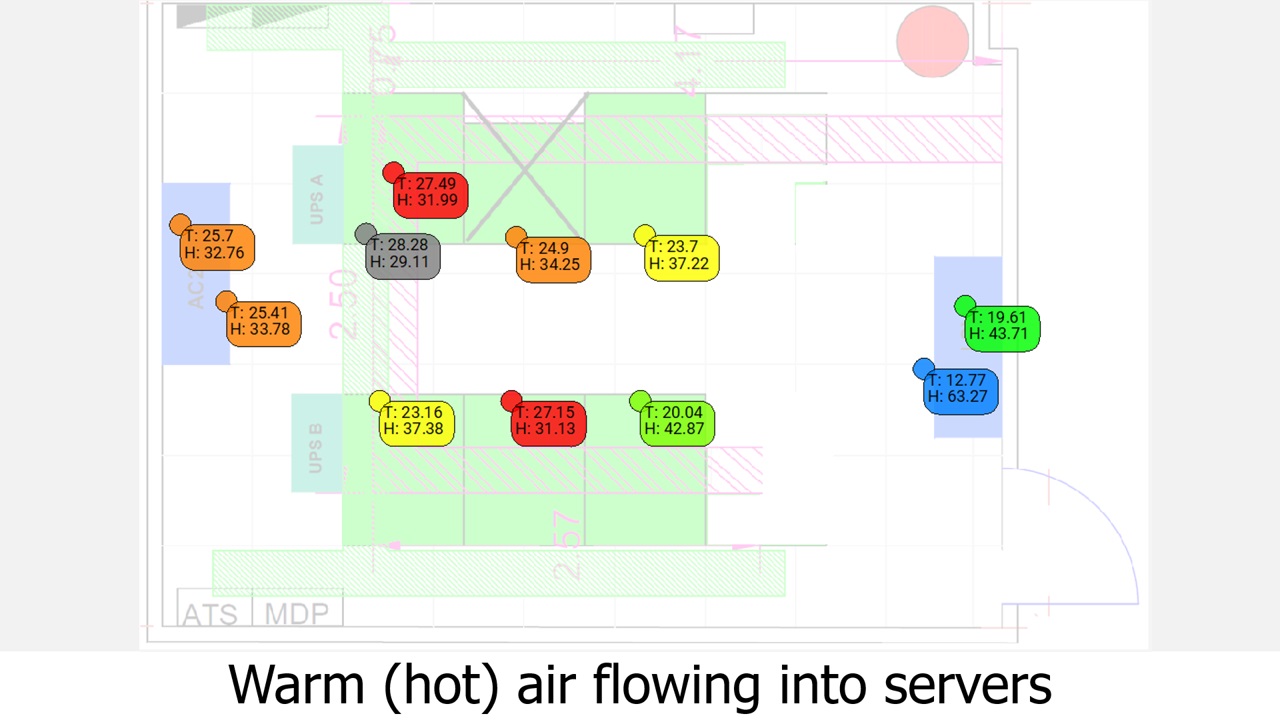

Warm (or hot) areas




Existing hot-spots due to AC malfunctions




The “cooled air” doesn’t reach desired areas




HVAC (cooling) system is not well-designed




The Set point of temperature is not optimum




Air flow blockage underneath the raised floor




and more…

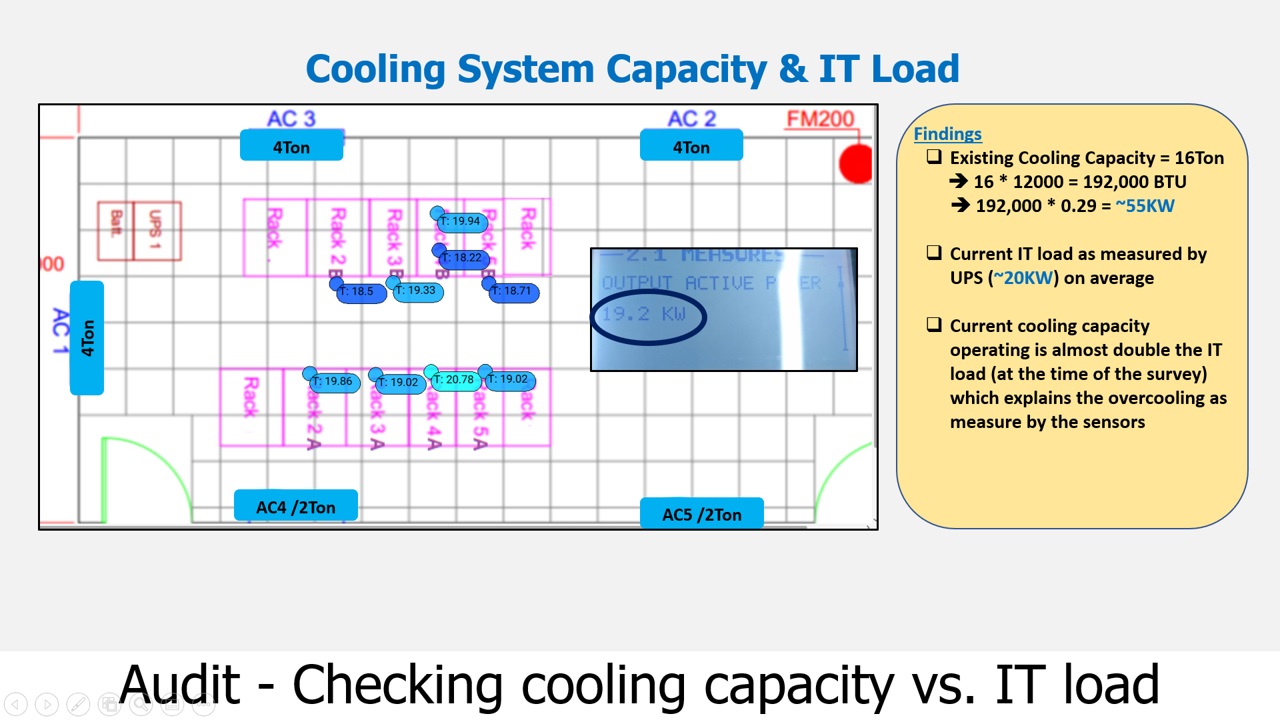

Capacity Check

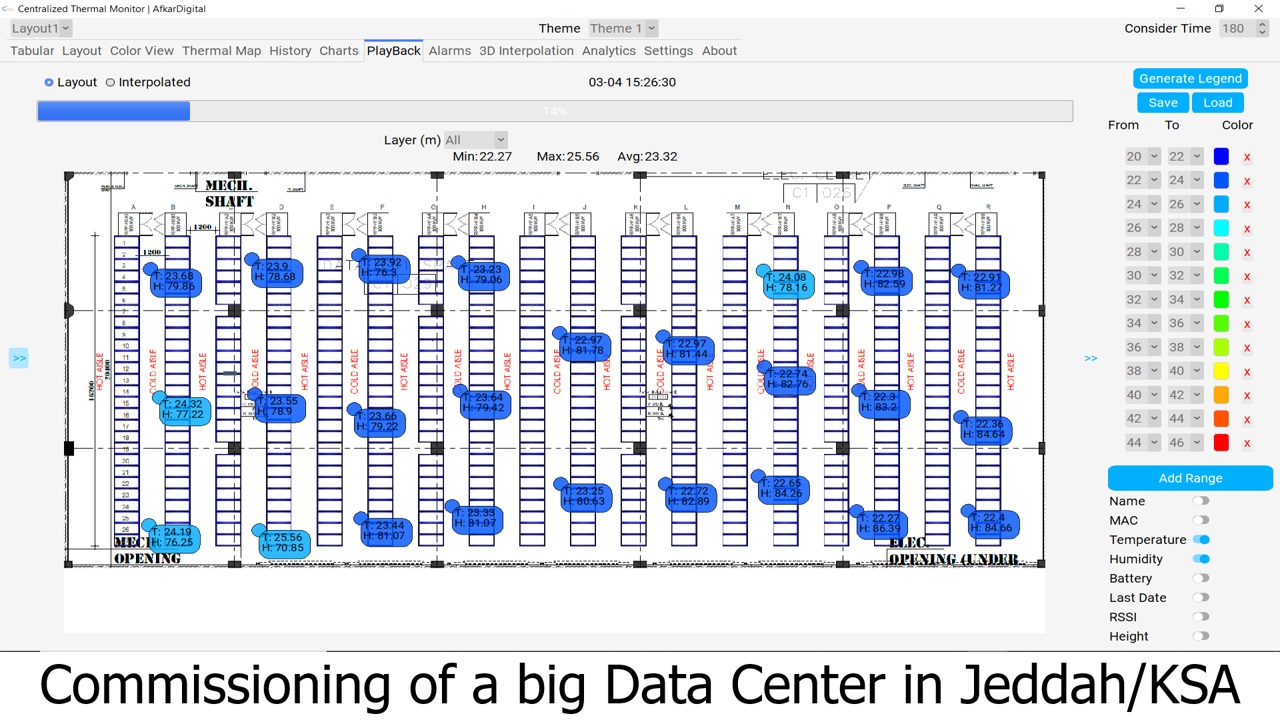

Ensuring Data Center cooling system meets the IT load




Continuously monitoring the Thermal variations at any desired points while the IT load is incrementally growing


Energy Saving



Temperature Set-point re-adjustment (safely raising the DC temperature)




Reducing airflow


Commercial



Ensuring you meet the co-location SLAs of your customers



Infrastructure Modifications



Adding cold/hot aisle containment




Upgrading the cooling system




Redesigning the cooling infrastructure


Minimizing Operational Cost



Reduced electrical bill once over-cooling is eliminated




Reduced AC maintenance cost


Get Permanent System



Monitor your Data Centers 24/7




Check Temperature Set Point




Evaluate Temperature Distribution




Highlight Over-cooled & Hot spots




Optimize HVAC/Cooling System




Check Cooling Capacity vs. IT Load

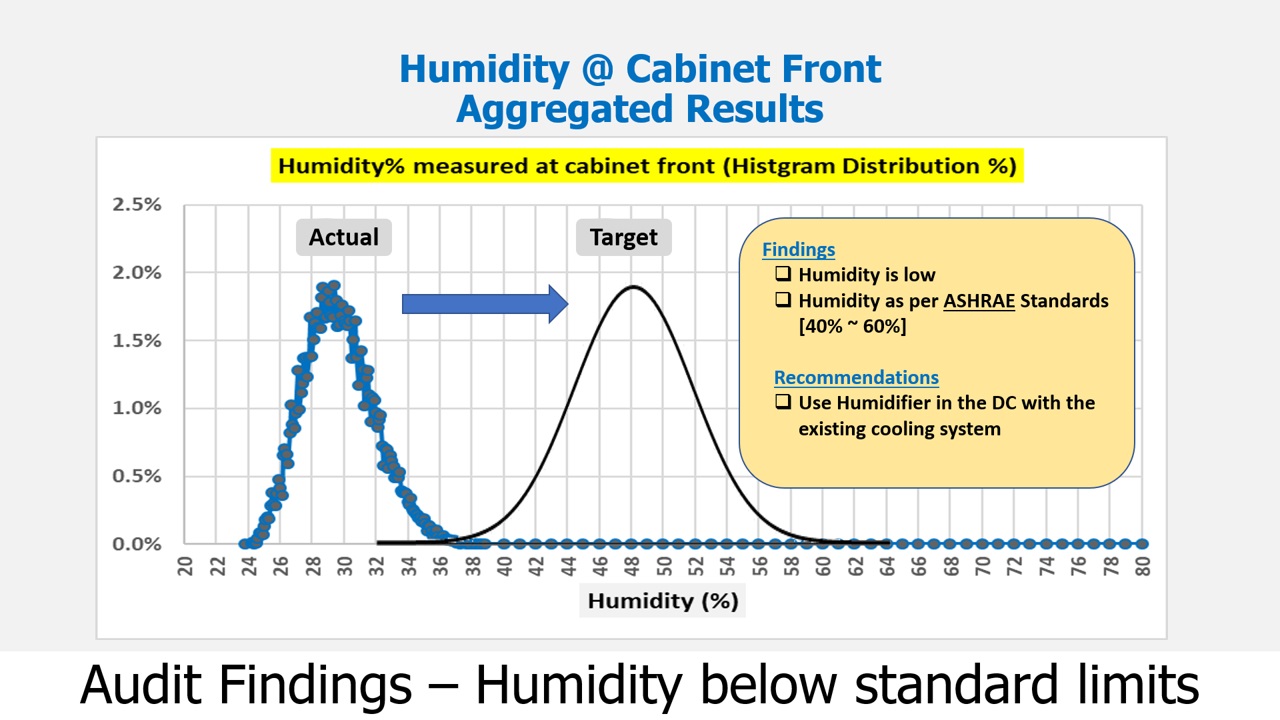

Ask for Thermal Audit Service (with Recommendation)



Audit Setup is made ready in a couple of hours




Evaluate the Thermal Performance of your Center




Highlight Over-cooled & Hot spots




Optimize HVAC


For more information about our Wireless Thermal Monitoring and Commissioning Tool, kindly visit:

Data Center Thermal Monitoring
Central Thermal Monitoring System
