AD004-RJ45 Adapter
RJ45-M to 8-Pin Terminal Adapter for RS485
Wiring
RJ45 to 8-pin terminator used for wiring RS485 devices using CAT
cables (Data & Power lines)
Technical Specifications
v
Professional accessories to connect RS485
devices thru CAT cables
v Easily
Plug and Split
v Connector

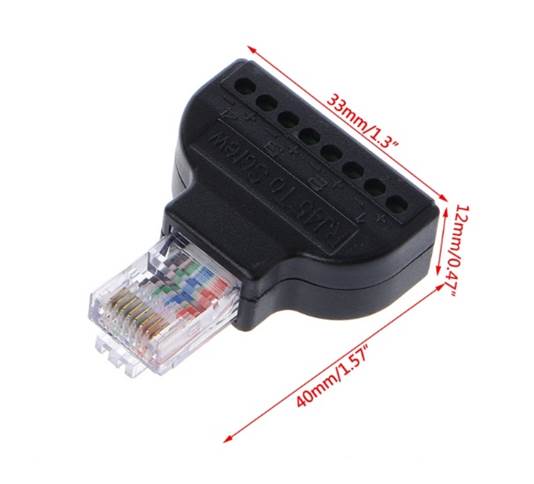

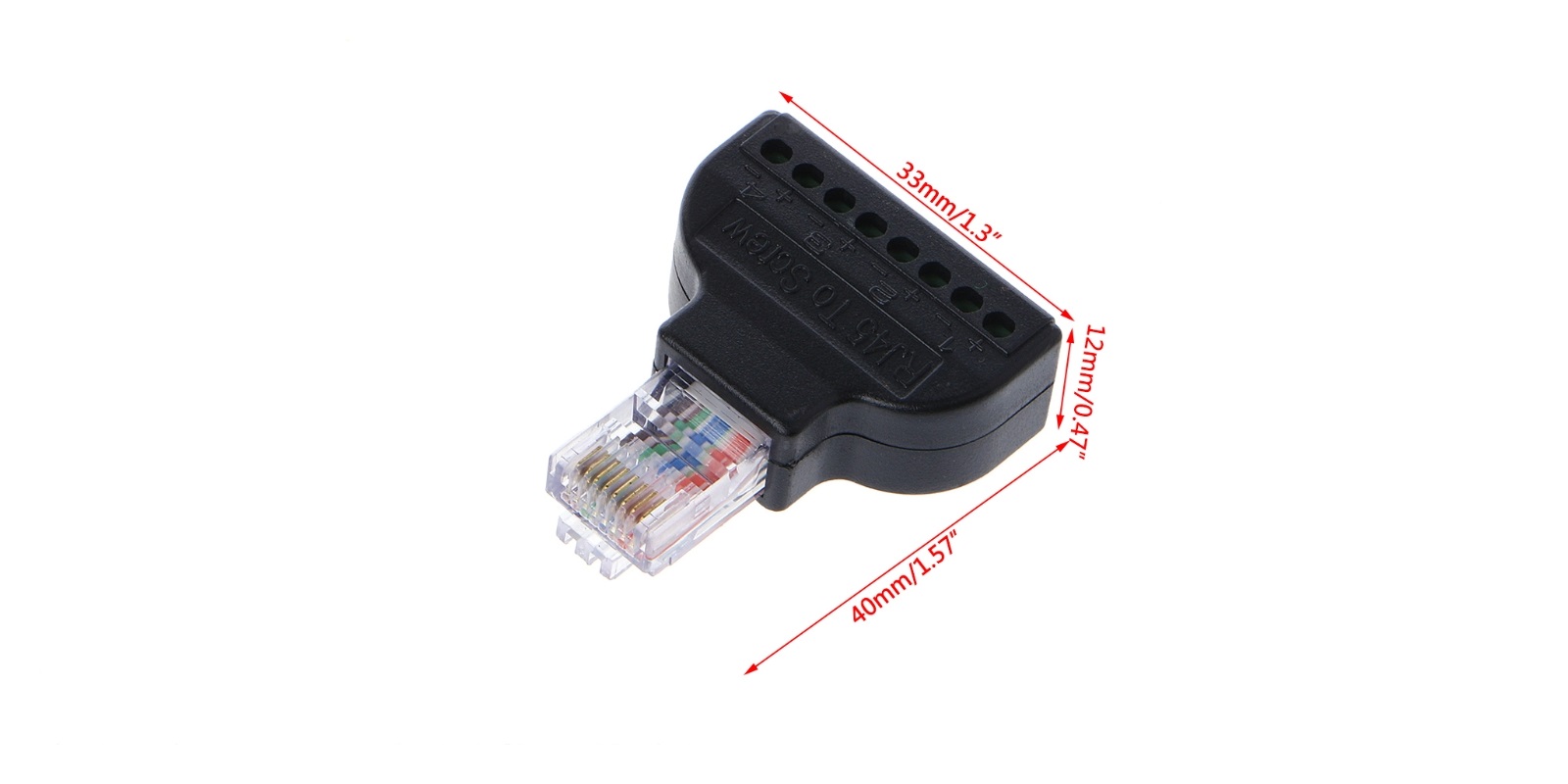

A: RJ45 Male
v Connector

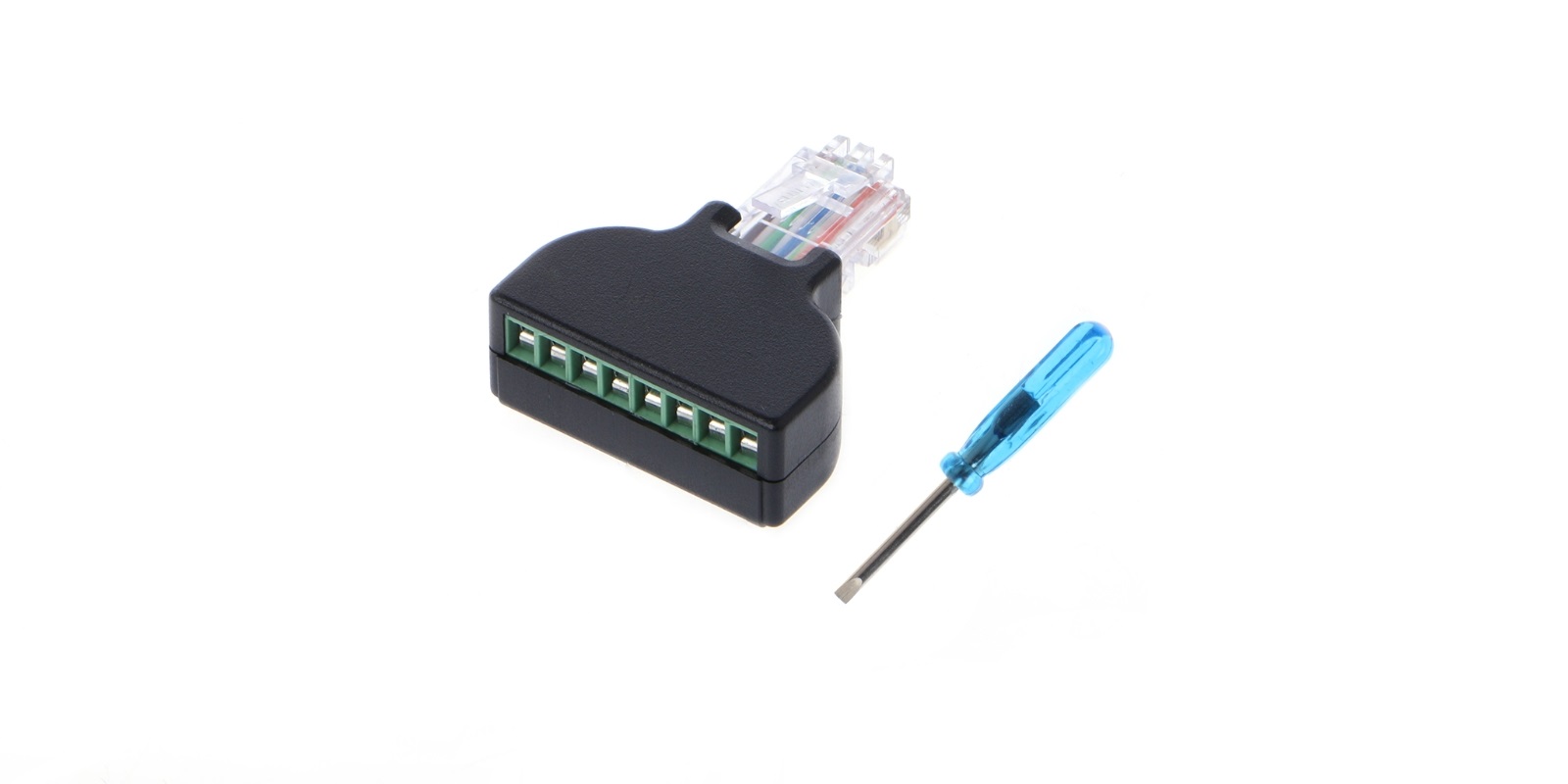

B: 8-pin Terminator
v 8-Pin
terminator enables terminating RS485 A/B lines & power lines when using PoE

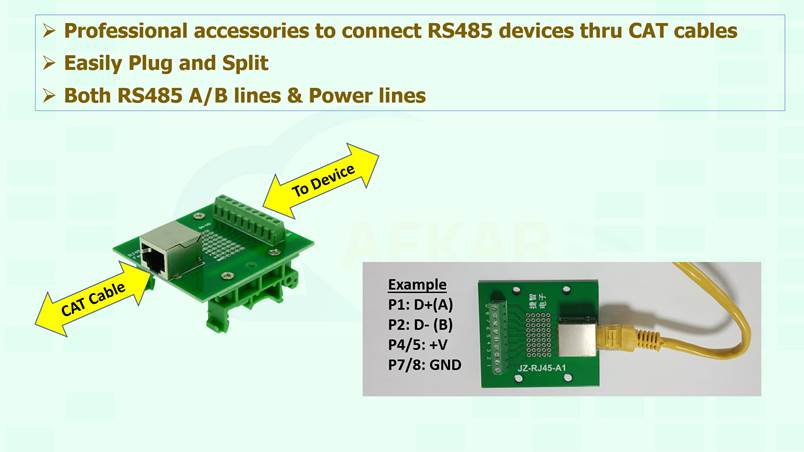

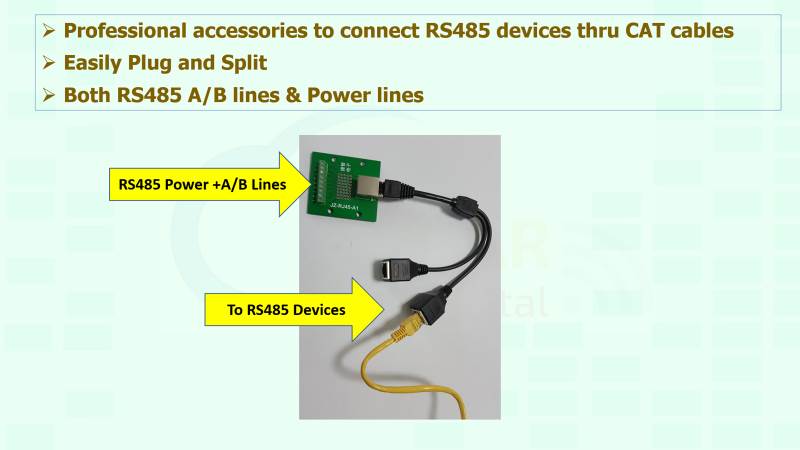

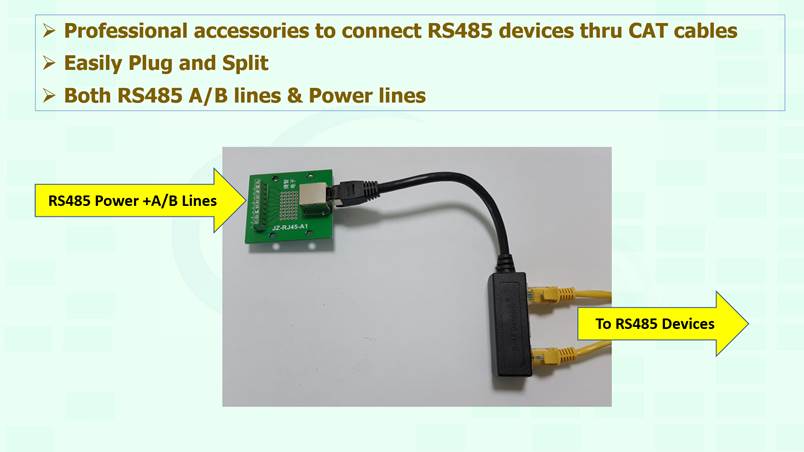

How to use RJ45
Accessories to wire RS485 devices
