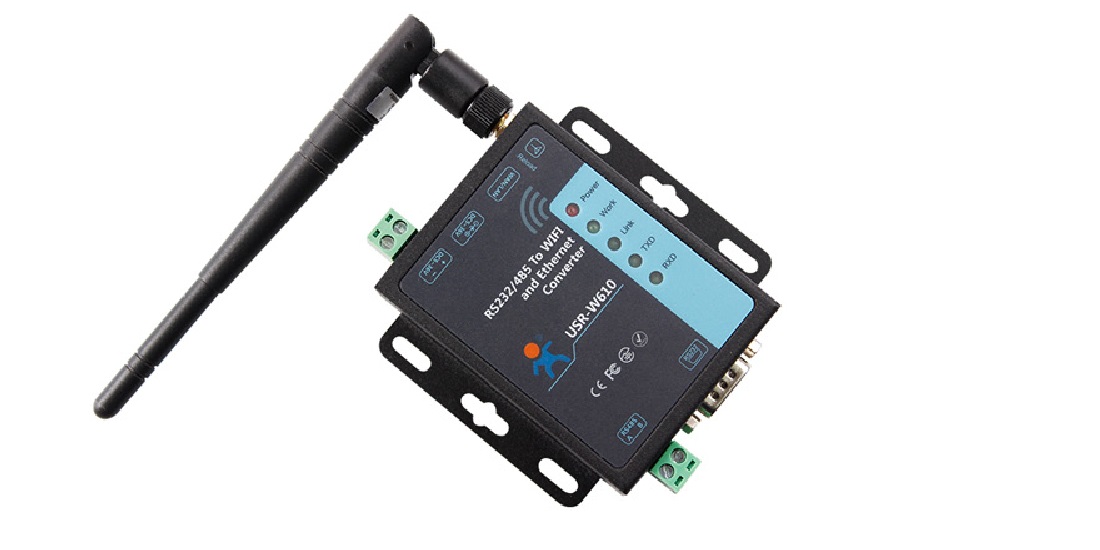

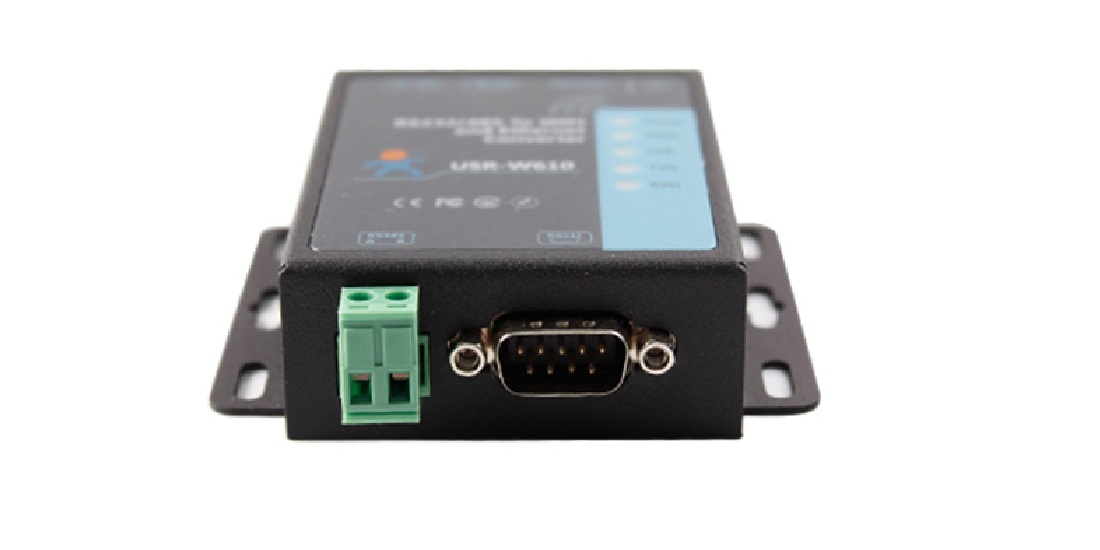

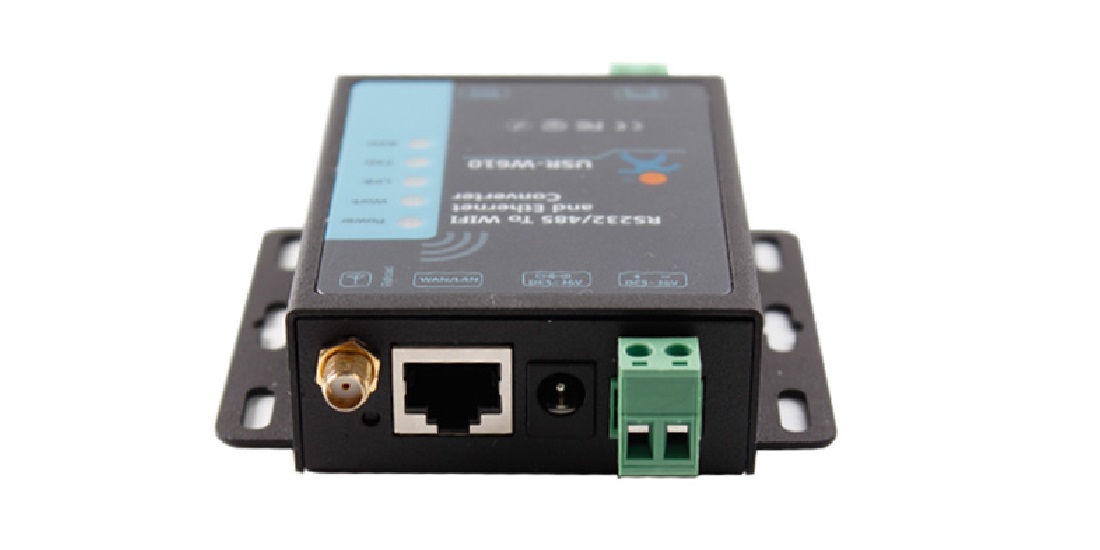

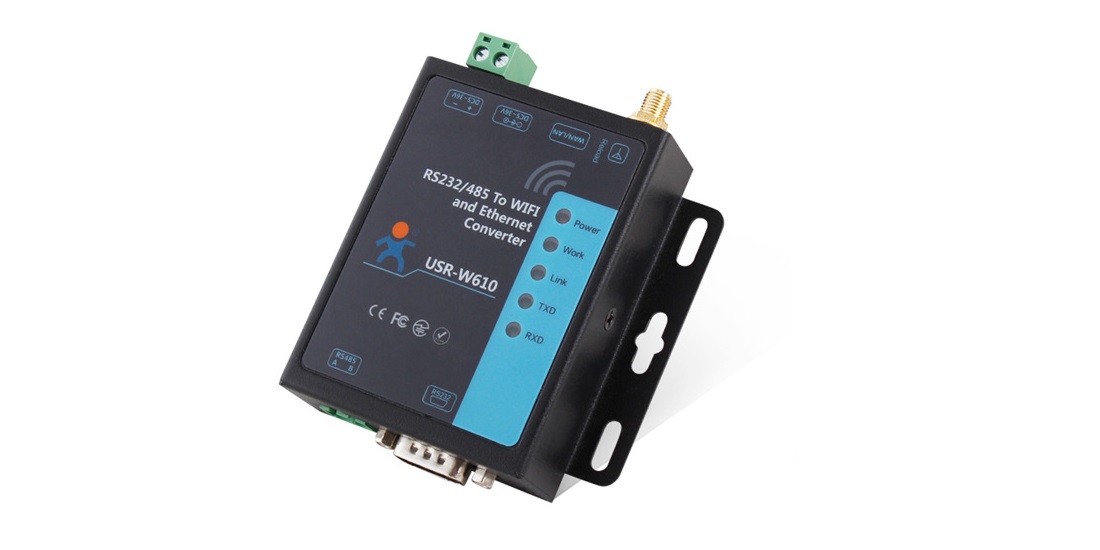

W610
Industrial RS232/RS485 to WIFI /Ethernet
Converter
RS232/RS485
to WIFI/Ethernet converter which can transmit data transparently between TCP-IP
and RS485/RS232.

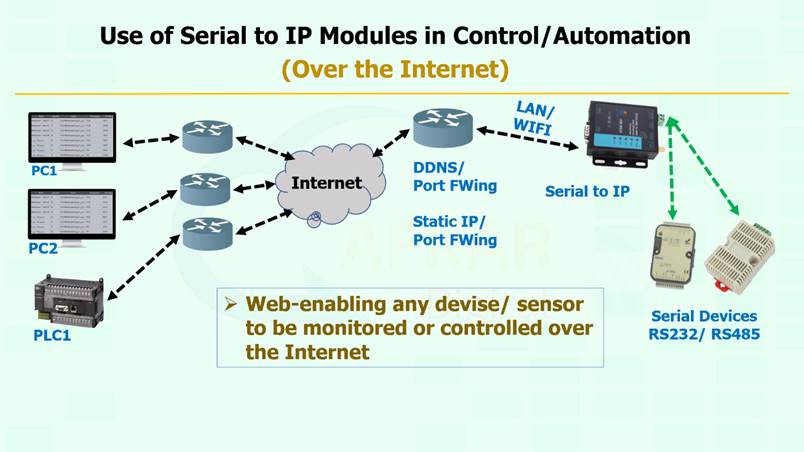

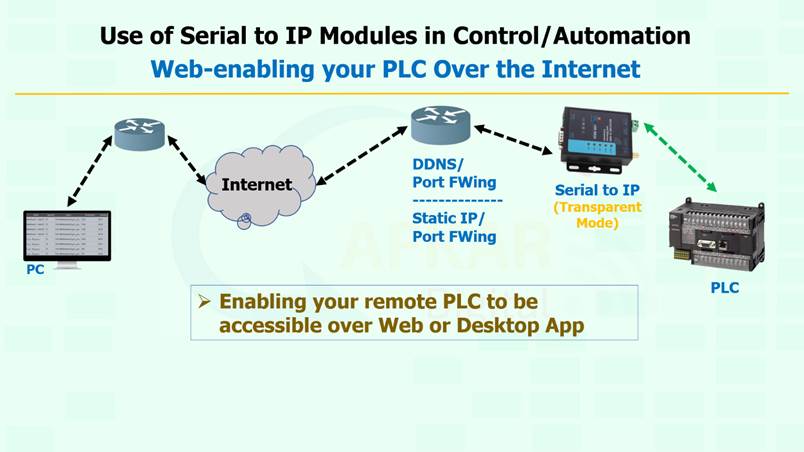

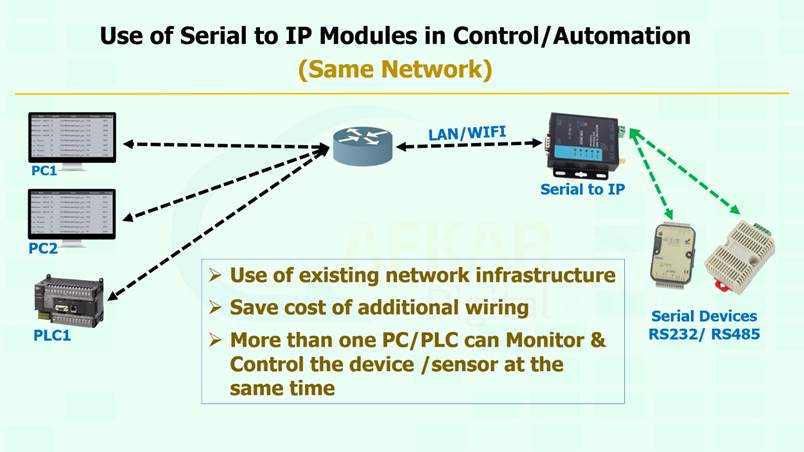

RS485
to TCP-IP is widespread required in industrial automation.
Supports
following modes: TCP Server, TCP Client, UDP Server, UDP Client, and HTTP
Client mode.
Supports
both Modbus RTU to Modbus TCP &
Transparent Transmission.
Main Features
v Serial To WIFI/Ethernet Converter
v Supports Modbus RTU to Modbus TCP
v Bidirectional transparent transmission
between RS232/RS485 and Ethernet/WIFI.
v WIFI 2.4GHz 802.11b/g/n wireless standards
v Working Mode: TCP Server, TCP Client, UDP Server,
UDP Client, and HTTP Client mode
v Supports AP only, STA only, both AP+STA
v Serial to WIFI or WIFI to Ethernet
v Modbus gateway: Modbus RTU to Modbus TCP, Modbus
Polling
v Electrostatic protection: Power (2KV) || Ethernet
interface & RS232 & RS485 (2KV)
v Watch Dog: 24 hours stable operation
v Configuration by Web Server, setup software,
serial/network AT command
v Support both DC adapter and terminal power supply
5-36 V
Technical Specifications
|
Ethernet
|
|
Port
Number
|
1
Ethernet Ports: 1 x WAN/LAN
|
|
Buffer
|
Rx/TX:
Max 16K bytes
|
|
Protection
|
2 KV
Electromagnetic isolation for Ethernet port
|
|
Network
Protocol
|
IP/TCP/UDP/DHCP/DNS/HTTP/
ARP/ICMP/Web socket/Httpd client
|
|
Speed
Rate
|
10/100
Mbps, MDI/MDIX
|
|
Wi-Fi
|
|
Certificate
|
FCC/CE
|
|
WIFI
|
802.11
b/g/n
|
|
Frequency
Range
|
2.412GHz-2.484GHz
|
|
Transmit
Power
|
802.11b:
+19dBm (Max)
802.11g: +18dBm (Max)
802.11n: +17dBm (Max)
|
|
Receive
Sensitivity
|
802.11b:
-89dBm
802.11g: -81dBm
802.11n: -73dBm
|
|

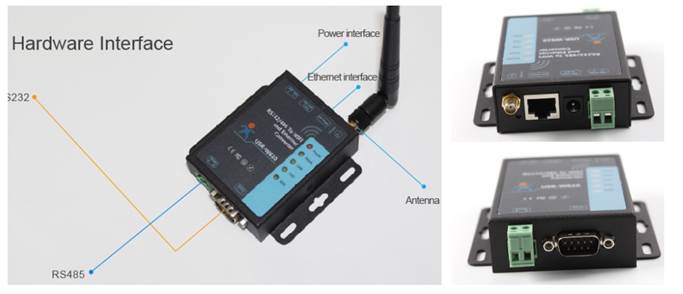

Hardware
|
|
Interface
Standard
|
RS232：300～460.8Kbps
RS485：300～230.4Kbps
|
|
Input Voltage
|
DC5～36V
|
|
Operating
Temp.
|
-40℃～ 85℃
|
|
Storage
Temp.
|
-40℃～ 125℃
|
|
Size
|
86*82.5*25mm(L*W*H)
|
|
Software
|
|
Network
Mode
|
Station/AP/AP+Station
|
|
Security
|
WEP/WPA-PSK/WPA2-PSK
|
|
Encryption
|
WEP64/WEP128/TKIP/AES
|
|
Work
Mode
|
Transparent
transmission / serial AT command/
HTTP Client / Modbus TCP <=> Modbus RTU
|
|
Setting
Command
|
AT+command
|
|
Networking
Protocol
|
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
|
|
Max.
Client Number in TCP Server Mode
|
24
|
|
Configuration
|
Web server+
AT command
|
