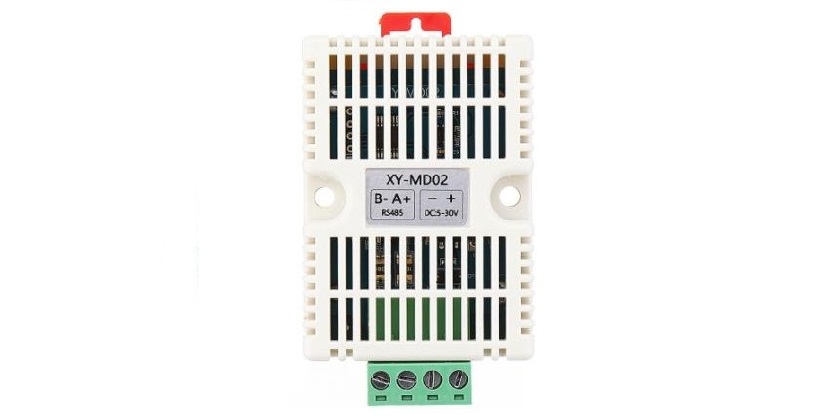

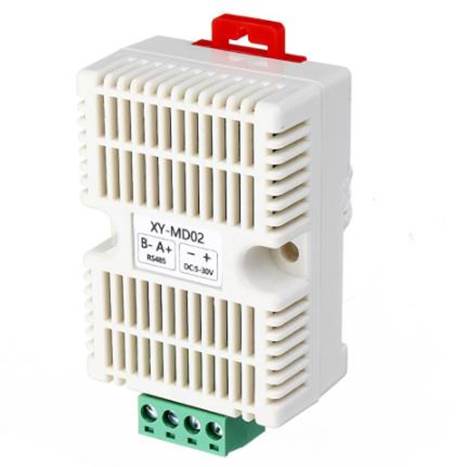

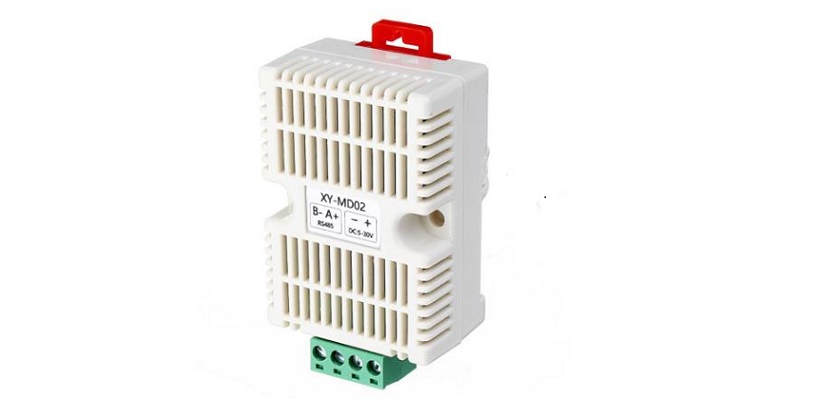

XY-MD02
Temperature and Humidity Sensor with RS485
Modbus
High-Precision Temperature & Humidity
Sensor based on SH20 with RS485 Modbus. Din Rail mounting for Industrial
applications
Main Features
v DC power
supply: DC5-30V
v Communication
Protocol: RS485 Modbus-RTU protocol
v Communication
address: 1-247 can be set, default 1
v Baud
rate: can be set, default 9600, 8-bit data, 1 stop, no parity
v Temperature
range: -40°C ~ +60°C
v Temperature
accuracy: ±0.5 °C (@
25°C)
v Temperature
resolution: 0.1°C
v Humidity
range: 0%~80%RH
v Humidity
accuracy: ±3% RH
v Humidity
resolution: 0.1% RH
v Device
power consumption: <=0.2W*
