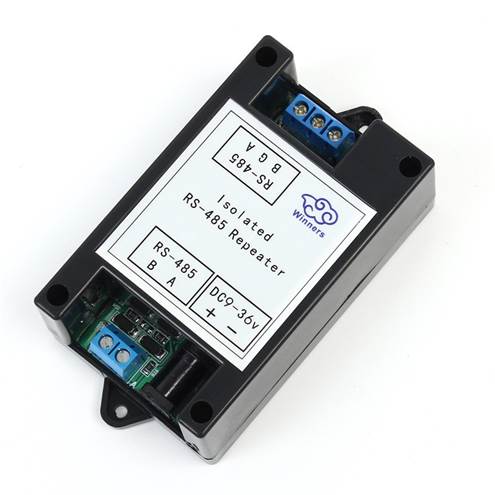

AD005-RS485 Repeater
RS485 Signal Isolator & Repeater
Industrial Grade RS485 Isolator & Repeater
& Distance Extender
Isolated
type RS485E Repeater is a kind of high-power industrial grade RS485 signal
amplifier. Product can automatically sense data flow direction and
communication baud rate. It does not require any control or handshaking
signals.
Equipment
power supply and communication signal is completely isolated, as well as with
surge protection, electrostatic protection. The module supports long distance
transmission, high speed, stable and reliable performance.
Main Features
v Industrial
design, communication is completely isolated. Stable and reliable performance
v Transmission
rate Up to 500Kbps
v Built-in
high-quality DC/DC power module
v Realizes
the electrical isolation between ports
v Supports
multi machine communication, can connect to 128 nodes
v Far
transmission distance of 1200 meters
v Multiple
protective measures: ESD 15KV positive and negative protection TVS, 600W dual
2.5KV communication isolation protection
v Wide power
supply range 9-36VDC with anti-polarity protection
Technical Specifications
|
Item
Parameter
|
Recommended
Value
(Typical)
|
Limit
Value
|
|
Working voltage
|
DC: 9-36V
|
DC: 9-36V
|
|
Rated power
|
0.36W (9V/35mA;
12V/27mA; 24V/15mA)
|
0.5W
|
|
Working
temperature
|
-30C - 70C
|
-40C - 80C
|
|
Capacity
|
1-128 node
|
128 nodes
|
|
Communication
distance
|
0-1200 meter
|
1200 meters
|
|
Communication
rate
|
300-500 Kbps
|
500Kbps
|
