AD006-RTU (8RO)
8Digital Output (Relay Output) RS485 ModBus
Remote Terminal Unit

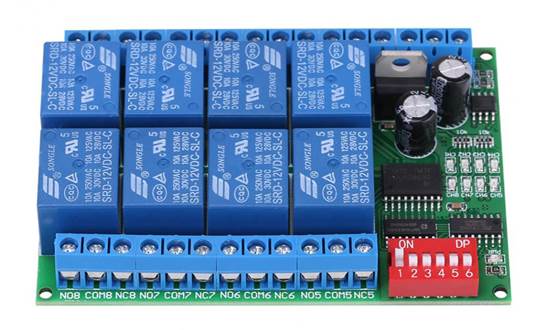

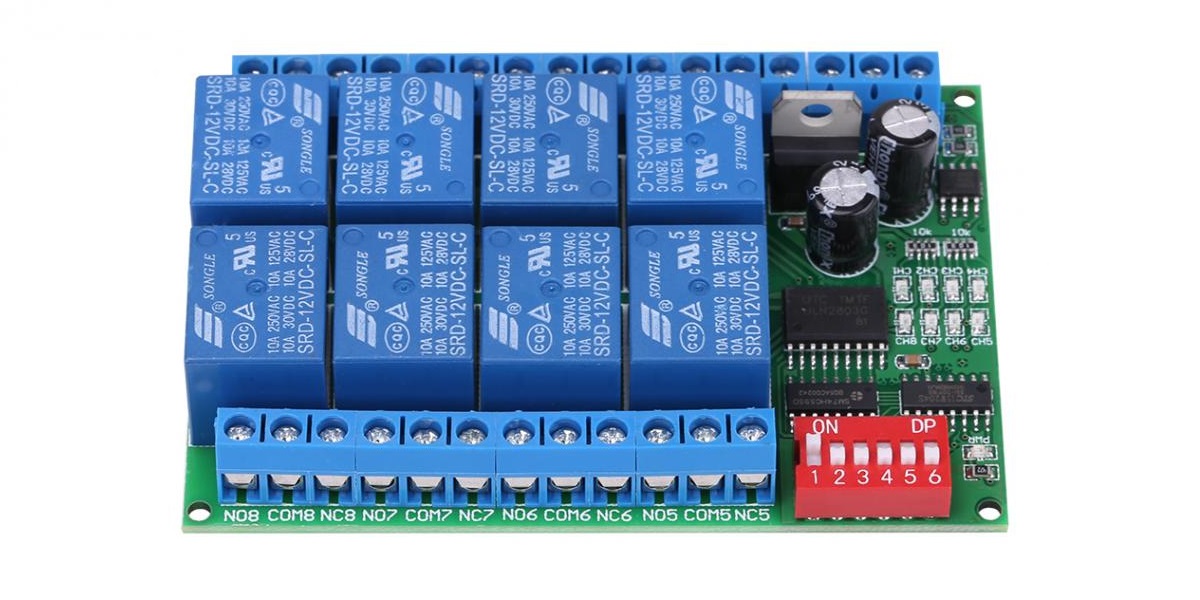

Remote RS-485 I/O module, support Modbus RTU protocol, with 8 Power Relay Output.
Technical Specifications
v
RS-485 Interface
v
Supports Modbus RTU
v
8 Channels with Power Relay. Maximum load:
o
10A/250VAC, 10A/125VAC,
o
10A/30VDC, 10A/28VDC, 10A/12VDC
v
LED Indicators
v

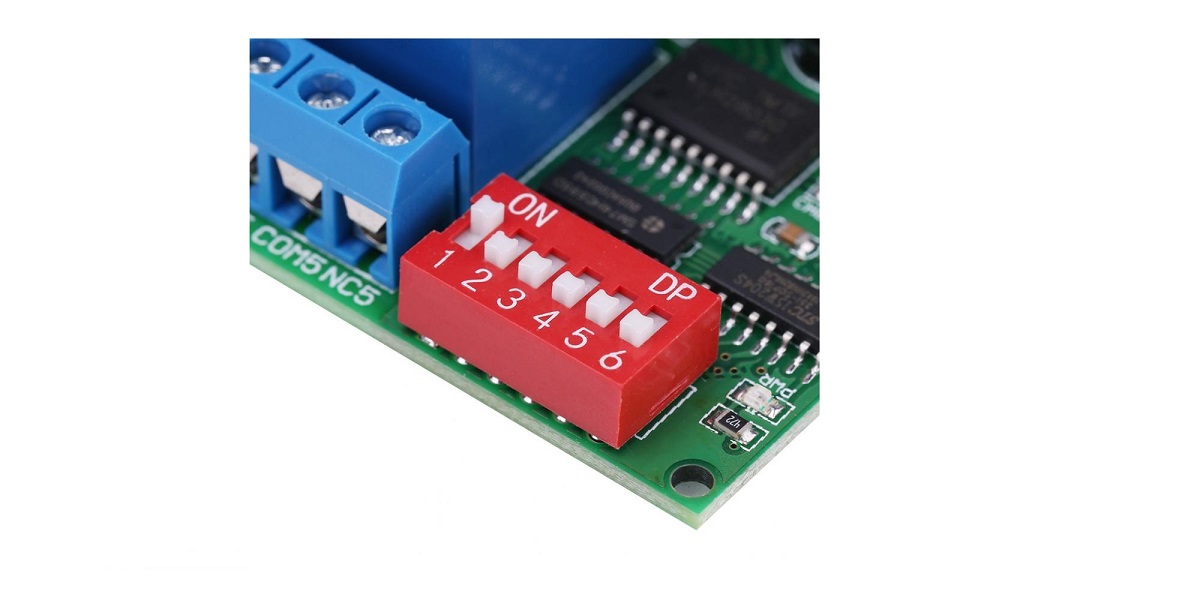

RS485 Address easily changed thru DIP Switches
v
DC 12V power supply (voltage range 9-13V).
v
Standby current (all relays closed) 12mA, 1 relay open 40mA, 2
relays open 67mA, 3 relays open 95mA, 4 relays open 121mA, 5 relays open 147mA,
6 relays open 173mA, 7 relays open 198mA, 8 relays open 223mA
v
Open, Close, Momentary, Self-locking, Interlock, Delay, 6 Commands.
v
Size: Approx. 90 x 63 x 18mm / 3.54 x 2.48 x 0.7inch
