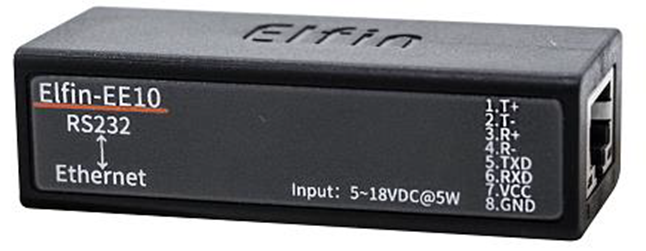

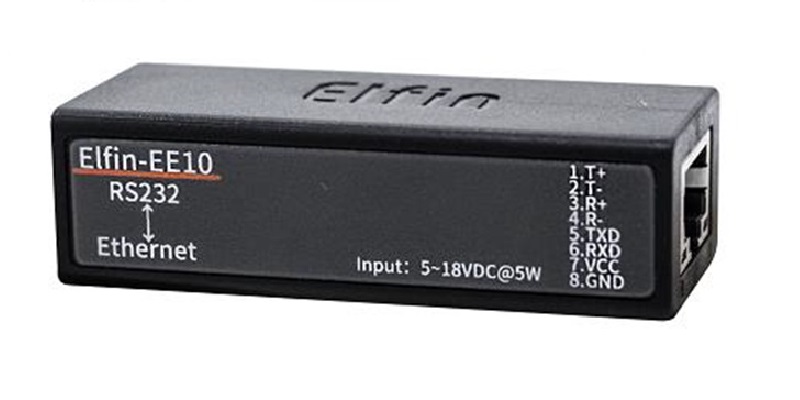

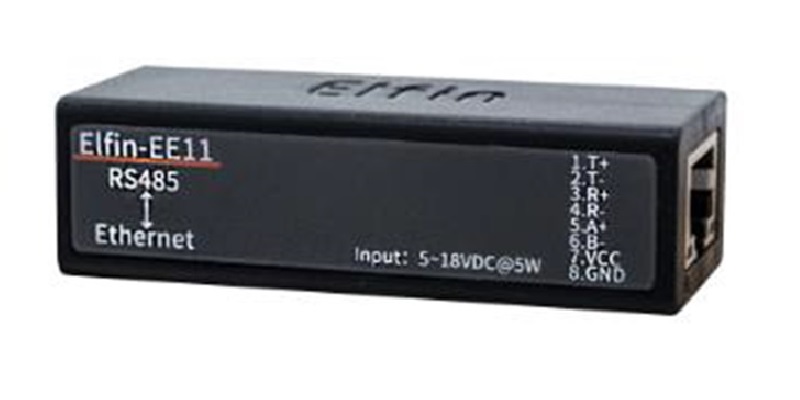

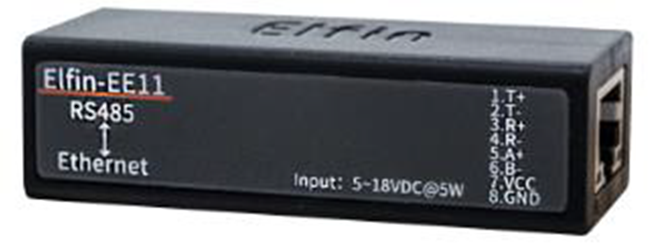

EE10/EE11
RS232/RS485 to Ethernet Serial Convertor
The EE10/EE11 module provides RS232/RS485
interface to Ethernet connectivity. The module integrates a TCP/IP controller,
memory, 10/100M Ethernet transceiver, high-speed serial port, a fully developed
TCP/IP network stack, and FreeRTOS OS. EE10/EE11
also includes an embedded web server used to remotely configure,
monitor, or troubleshoot the attached device.
The EE10/EE11 module is a complete solution for
serial port device connecting to network. This powerful device supports a
10/100BASE-T Ethernet connection, a reliable and proven operating system stored
in flash memory, an embedded web server, a full TCP/IP protocol stack, and
standards-based (AES) encryption.
The module can work in 4 modes: TCP
Server, TCP Client, UDP Server, and UDP Client.
The Elfin-EE1X integrates all serial to Ethernet
functionality with 61 x 26 x 17.8mm size.
Main Features
v Serial to Ethernet
Communication
v Modes of Operations: TCP
server, TCP Client, UDP Server, UDP Client
v Cortex-M3 MCU with 2MB
Flash and 128KB SRAM
v Use FreeRTOS Operation
System
v Support TCP/IP/Telnet
/Modbus TCP Protocol
v Support RS232/RS485 to 10/100M
Ethernet Conversion, Serial Speed Up to 460800 bps
v Support 10/100M Ethernet
Auto-Negotiation
v Support Webpage Easy
Configuration or PC IOT Service Tool
v Support Security Protocol
Such As TLS/AES/DES3
v Support Heartbeat and
Resister Packet Function
v Support Webpage OTA
Wireless Upgrade
v Support Industrial
Temperature: -40 to +85˚ C
v Wide DC Input 5~18VDC
v Size: 61 x 26 x 17.8 mm (L
x W x H)
Technical Specifications
|
Item
|
Parameters
|
|
System Information
|
|
Processor/Frequency
|
Cortex-M3/96MHz
|
|
Flash/SDRAM
|
2MB/128KB
|
|
Operating System
|
FreeRTOS
|
|
Ethernet Port
|
|
Port Number
|
1
|
|
Interface Standard
|
10/100 Base-T Auto-Negotiation
|
|
Transformer
|
Integrated
|
|
Network Protocol
|
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client, ARP, Auto IP, ICMP, Telnet,
NTP, Modbus TCP
|
|
Security Protocol
|
TLS 1.2
AES 128Bit
DES3
|
|
Serial Port
|
|
Port Number
|
EE10: 1 RS232
EE11: 1 RS485
|
|
Data Bits
|
5,6,7,8
|
|
Stop Bit
|
1, 2
|
|
Check Bit
|
None, Even, Odd
|
|
Baud Rate
|
TTL: 600 bps~460800 bps
|
|
Flow Control
|
No Flow Control
Software Xon/ Xoff flow control
|
|
Software
|
|
Web Pages
|
Http Web Configuration
Customization of HTTP Web Pages
|
|
Configuration
|
Web
CLI
XML import
Telnet
IOT Service PC Software
UART Fast Config
|
|
Firmware Upgrade
|
Webpage, IOT Service Tools
|
|
Basic Parameter
|
|
Size
|
61 x 26 x 17.8 mm
|
|
Operating Temp.
|
-40 ~ 85°C
|
|
Storage Temp.
|
-45 ~ 105°C, 5 ~ 95% RH (no condensation)
|
|
Input Voltage
|
5~18VDC
|
|
Working Current
|
~100mA
|
|
Power
|
<400mW
|

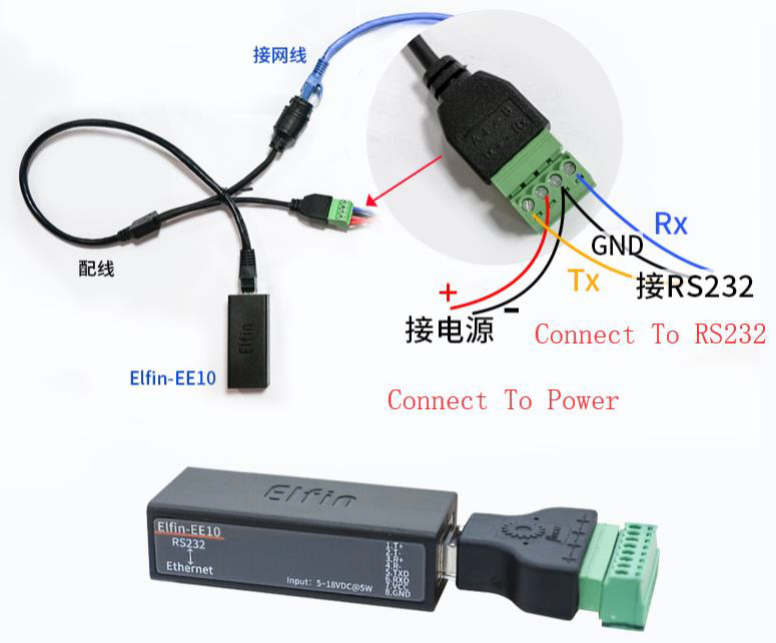

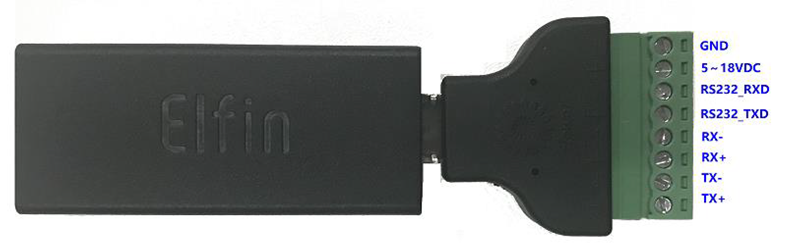

RS232 Interface
Device RS232 does not support hardware flow control. The
physical voltage is about ±7V.

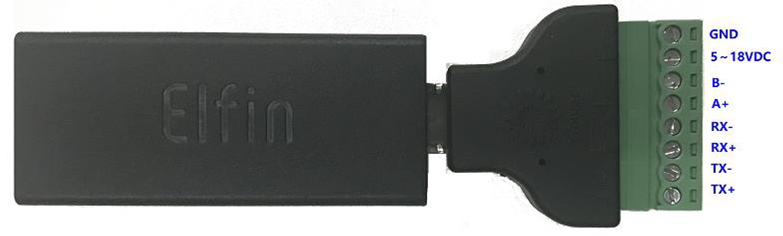

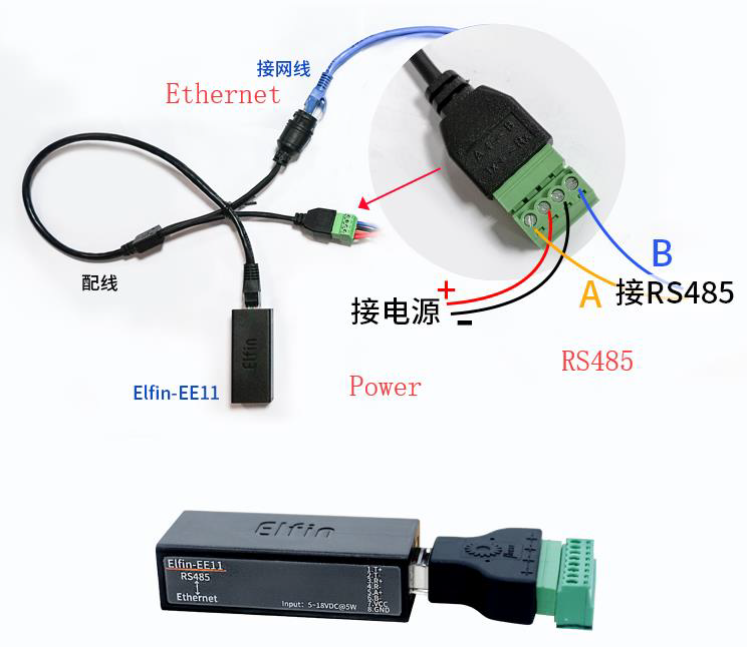

RS485 Interface
RS485 use two wire links, A(DATA+), B(DATA-). Connect A+ to A+, B- to B- for communication. You might
need to connect GND together when interference is very severe.
The RS485 interface support maximum 32 devices.
The cable maximum length is 1200 meters. Need to add 120Ohm terminal resistor
for over 300 meters.

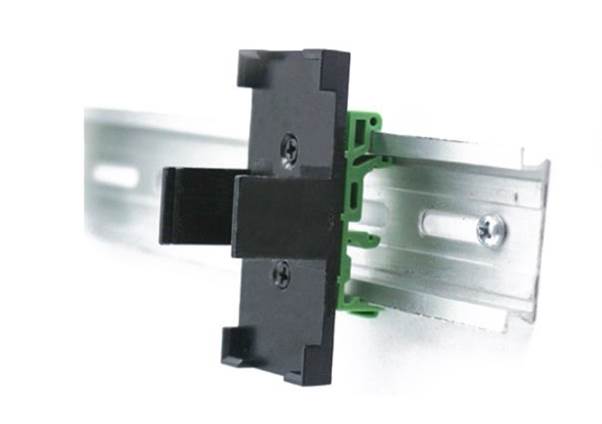

Mounting

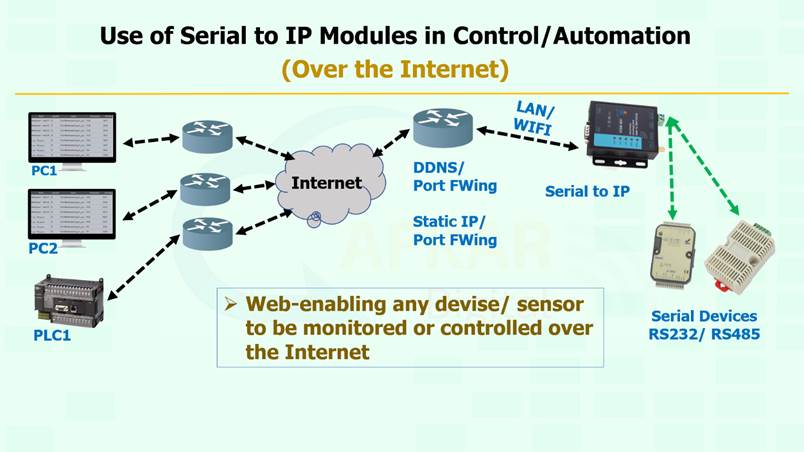

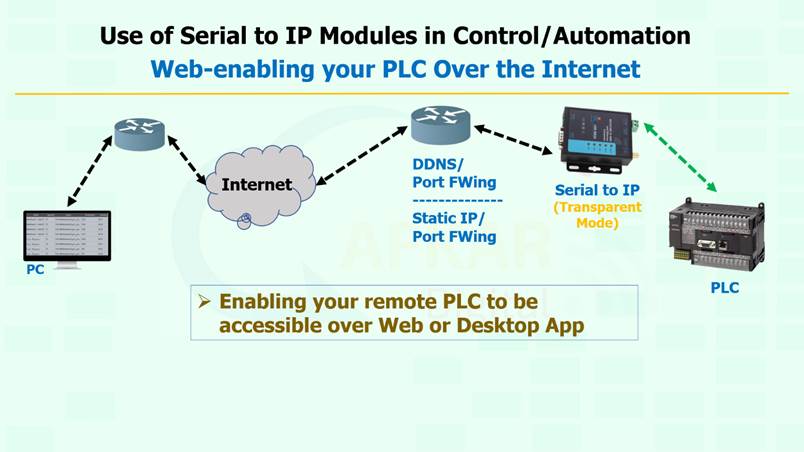

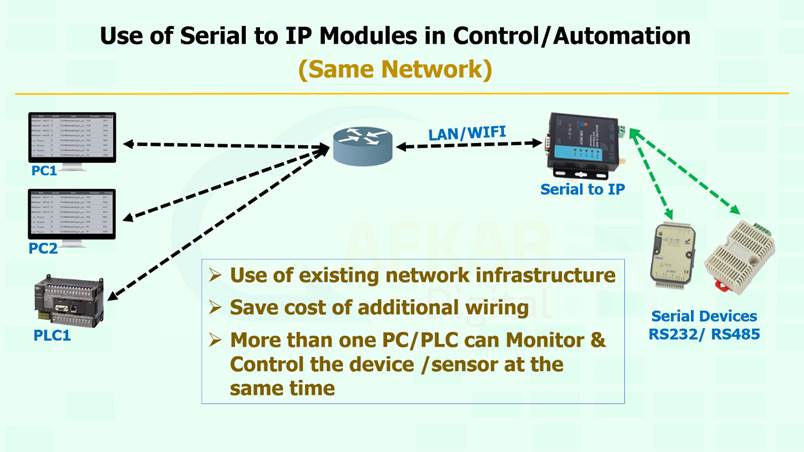

Automation
