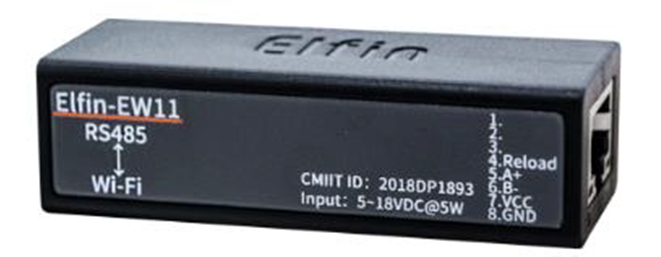

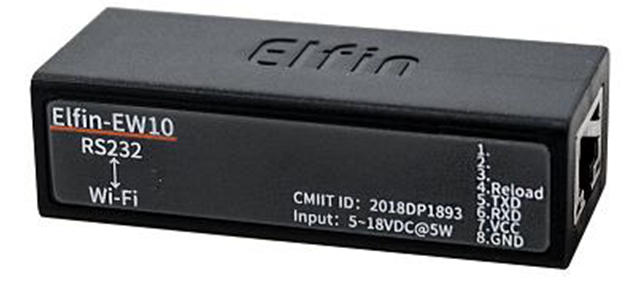

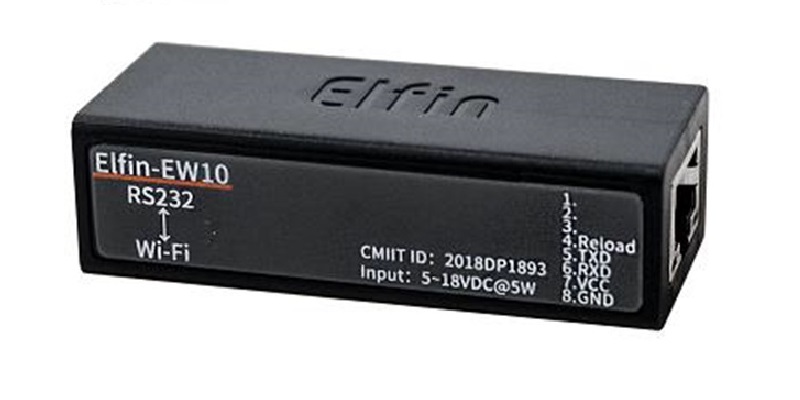

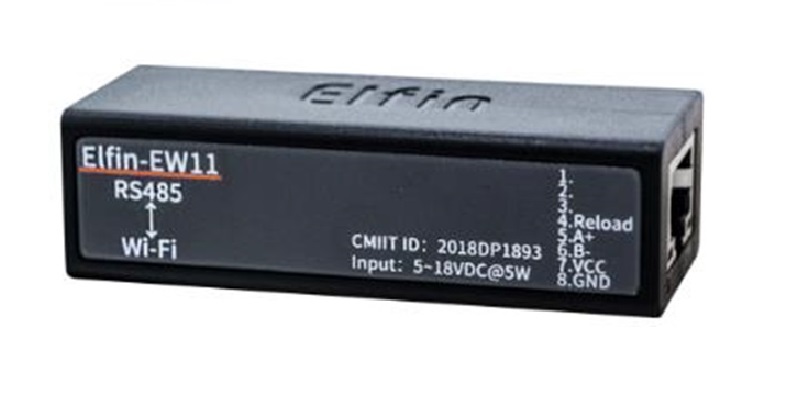

EW10/EW11


RS232/RS485 to WIFI Serial Convertor



EW10/EW11

RS232/RS485 to WIFI Serial Convertor










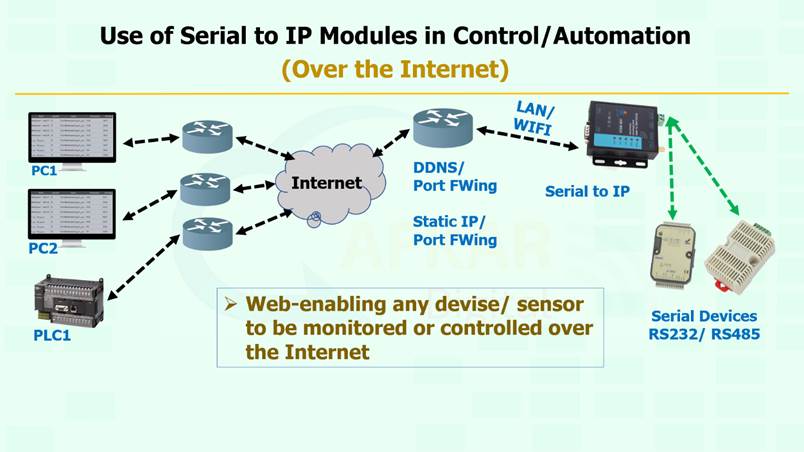

The EW10/EW11 module provides RS232/RS485 interface to Wi-Fi connectivity. The module integrates a TCP/IP controller, memory, high-speed serial port, a fully developed TCP/IP network stack, and mbed OS. The EW10/EW11 also supports remotely configuration & monitoring with IOT Service.

The EW10/EW11 module is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES) encryption.

The module can work in 4 modes: TCP Server, TCP Client, UDP Server, and UDP Client.

The Elfin-EW1X integrates all serial to Wi-Fi functionality with 61 x 26 x 17.8mm size.



Main Features

v  Serial to WIFI Communication

v  Modes of Operations: TCP server, TCP Client, UDP Server, UDP Client

v  Support 802.11bgn Wireless Standard

v  Support TCP/UDP/Telnet /Modbus TCP Protocol

v  Support RS232/RS485 to Wi-Fi Conversion, Serial Speed Up to 230400 bps

v  Support STA/AP/AP+STA Mode

v  Support SmartLink V8 Smart Config (Provide APP)

v  Support Easy Configuration Through Web Interface or PC IOT Service Tool

v  Support Security Protocol Such As TLS/AES/DES3

v  Support Webpage OTA Wireless Upgrade

v  Support Internal PCB Antenna

v  Wide DC Input 5~18VDC

v  Size: 61 x 26 x 17.8 mm (L x W x H)

v  FCC/CE/SRRC/IC Certificated



Technical Specifications

Item

Parameters

System Information

Processor/Frequency

160MHz

Flash/SDRAM

2MB/352KB

Operating System

mbed OS

Protocol

Network Protocol

IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, Auto IP, ICMP, Web socket, Telnet, uPNP, NTP, Modbus TCP

Security Protocol

TLS v1.2

AES 128Bit

DES3

Wi-Fi Interface

Standard

802.11 b/g/n

Frequency

2.412GHz-2.484GHz

Network Mode

STA/AP/STA+AP

Security

WEP/WPAPSK/WPA2PSK

Encryption

WEP64/WEP128/TKIP/ AES

Tx Power

802.11b: +18dBm (Max.)

802.11g: +16dBm (Max.)

802.11n: +15dBm (Max.)

Rx Sensitive

802.11b: -89dBm

802.11g: -81dBm

802.11n: -71dBm

Antenna

Internal PCB

Serial Port

Port Number

EW10:1 RS232

EW11:1 RS485

Data Bits

7,8

Stop Bit

1,2

Check Bit

None, Even, Odd

Baud Rate

TTL: 300 bps~230400 bps

Flow Control

No Flow Control

Software Xon/ Xoff flow control

Software

Web Pages

Http Web Configuration

Customization of HTTP Web Pages

Configuration

Web

CLI

XML import

Telnet

IOT Service PC Software

Basic Parameter

Size

61 x 26 x 17.8 mm

Operating Temp.

-40 ~ 85°C

Storage Temp.

-45 ~ 105°C, 5 ~ 95% RH (no condensation)

Input Voltage

5~18VDC

Working Current

~200mA

Power

<700mW

Other Information

Certificate

FCC/CE/SRRC/RoHS

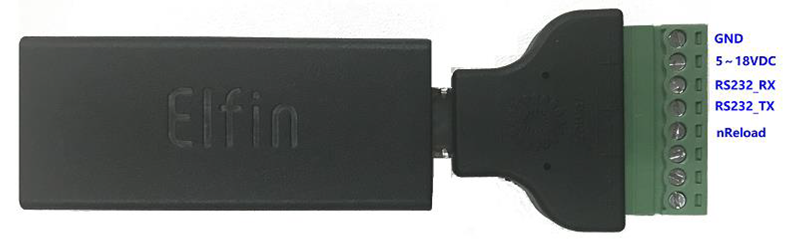

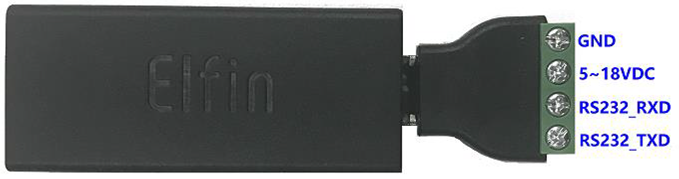

RS232 Interface

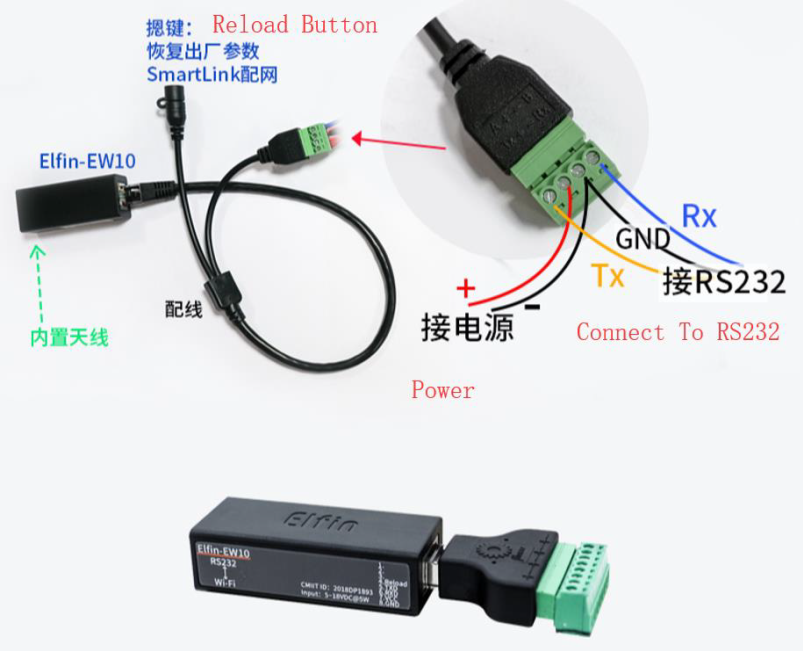

Device RS232 does not support hardware flow control. The physical voltage is about ±7V.

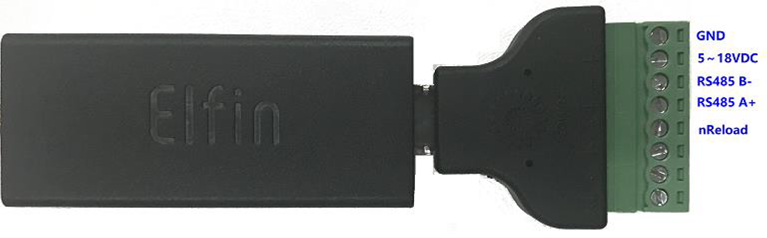

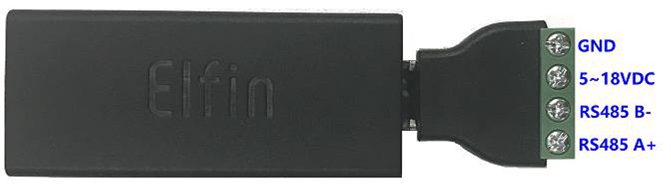

RS485 Interface

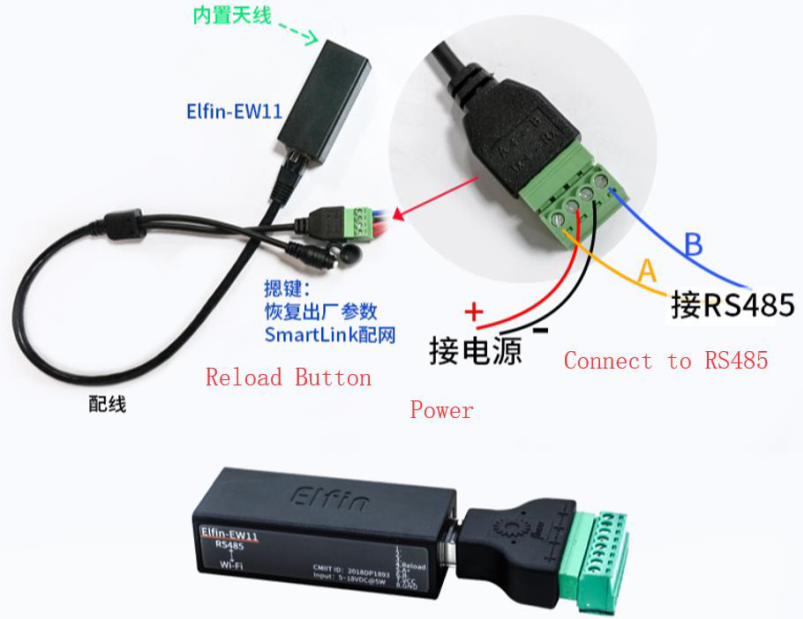

RS485 use two wire links, A(DATA+), B(DATA-). Connect A+ to A+, B- to B- for communication. You might need to connect GND together when interference is very severe.

The RS485 interface support maximum 32 devices. The cable maximum length is 1200 meters. Need to add 120Ohm terminal resistor for over 300 meters.

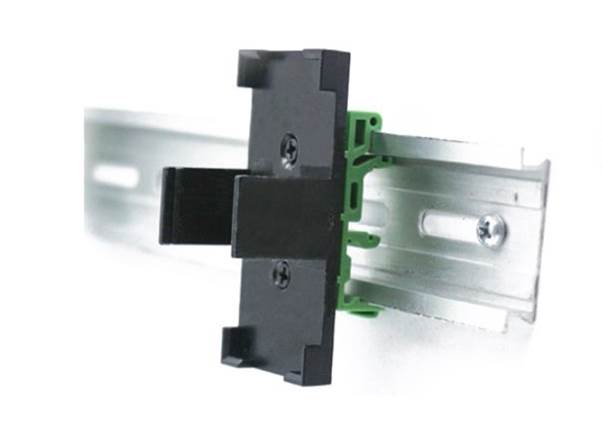

Mounting

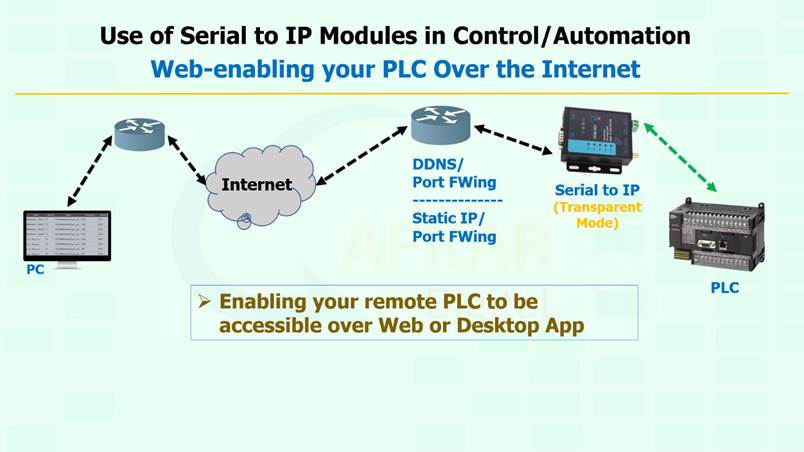

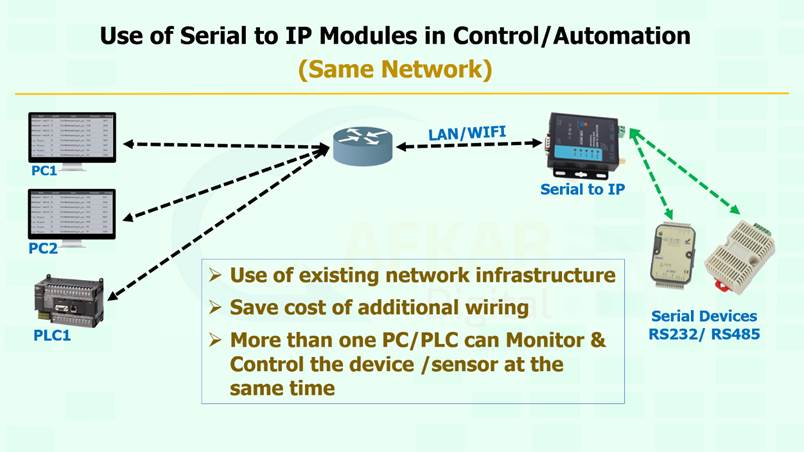

Automation Ideas
