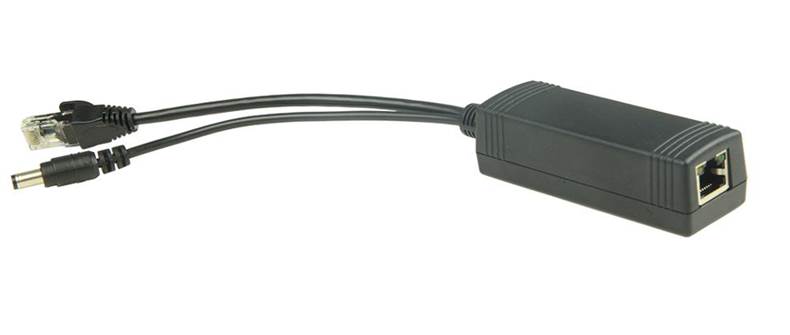

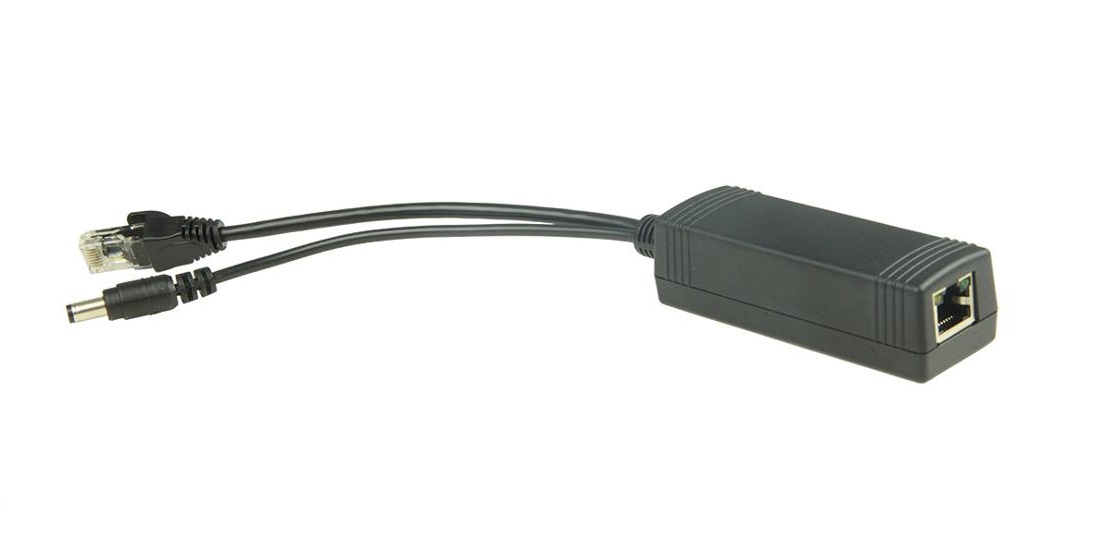

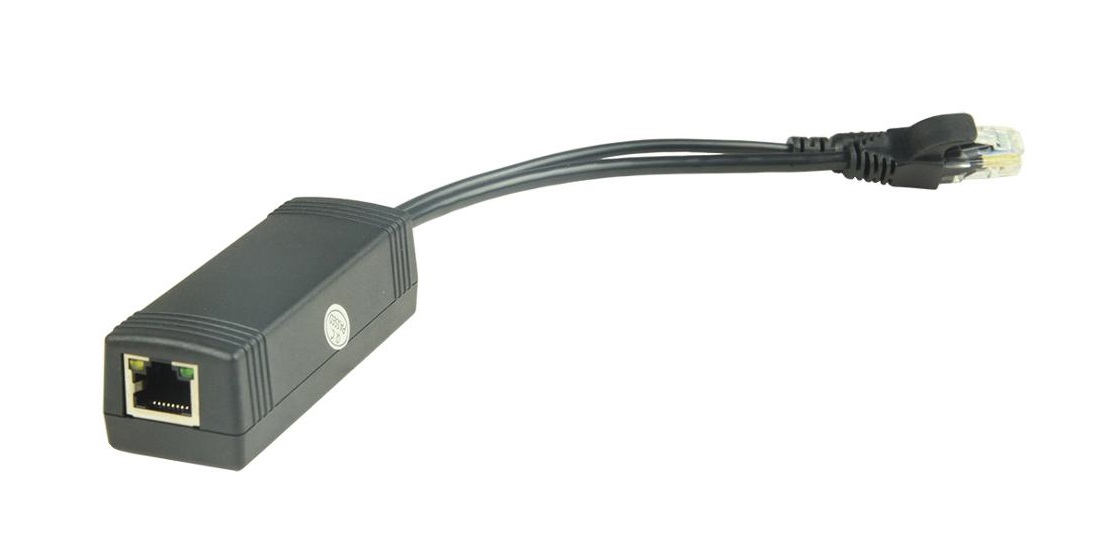

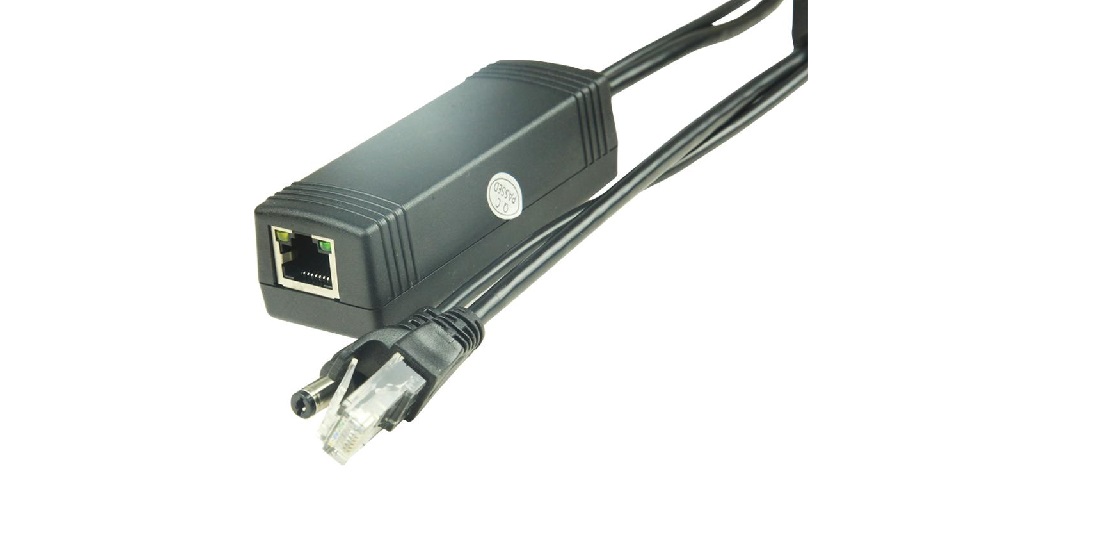

PD5202 (~13W)
Single Port 10/100
PoE
Splitter - 12V DC (~13W)
PD5202G is a
cost-effective and high reliable remote PoE PD device based on standard
IEEE802.3af/at. It can split the power and data transmitted through cable and
provide power to any device which is not equipped with PoE function. The output
voltage is 12V. It simplifies the project wiring and maintenance.
With
transformer isolated design for circuit input stage and output stage of the PD5202G
power, it enhances anti-jamming capability and protection for the device. It
also effectively reduces PoE Switch Abnormal Power Supply issues caused by
common ground problem. It is compatible with the standard of IEEE802.3af/at,
compatible with power method over End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/
8-). With the features of output power at 13W, low ripple, more than 82% high
efficiency, Port Isolation Protection: 1500V and Protection for short circuit,
over-current & over-temperature.
Main Features
v 1x
10/100M RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port
v Support
IEEE 802.3af Ethernet power standard
v 10/100M
data transmission
v Compatible
with power method over End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/ 8-)
v Output
voltage: 12V
v Circuit
protection to protect the connected device
v Top-quality
design, stable and reliable
Technical Specifications
|
Model
|
PD5202
|
|
Power Supply Type
|
Supports both power methods 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
|
|
PoE
Voltage Input
|
44-57V
|
|
DC Voltage Output
|
12V
|
|
Connector
|
1x
10/100M RJ45 input port
1*10/100M
male output port
1*(5.5*2.1mm)
DC output port
|
|
Network Medium
|
Cat5 (UTP) or more
|
|
Protocol
|
IEEE
802.3 i 10 BASE-T
IEEE
802.3 u 100 BASE-TX
IEEE
802.3 x Flow Control
IEEE
802.3 at Power over Ethernet
|
|
Rate
|
10/100M
|
|
LED
Status
|
PoE
power input indicator light
|
|
Port Protection
|
Meet the IEC61000-4-2 (ESD)±15KV (air), ±8KV (contact)
Compatible with 8/20us, (1.1A)
|
|
Certifications
|
CE,
FCC, RoHS
|
|
Dimension
|
85.3*31.2*26.3mm
|
|
Working
Temperature
|
Operating
Temperature: 0~55℃; Storage Temperature:
-20~70℃;
Operation Humidity: 90%, non-condensing; Storage Humidity: 95%,
non-condensing
|
