PD3202G (~13W)
Single Port 10/100/1000M PoE
Splitter - 12V DC (~13W)

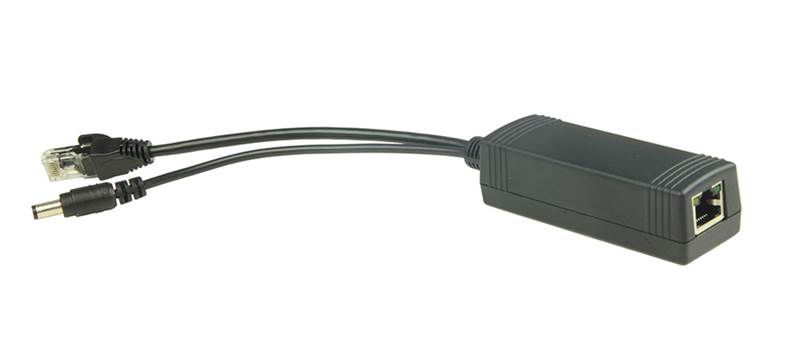

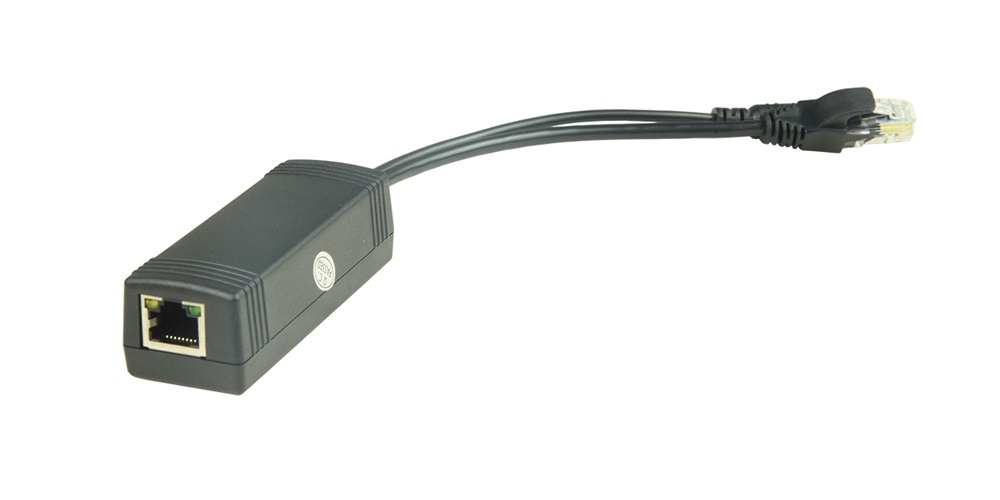

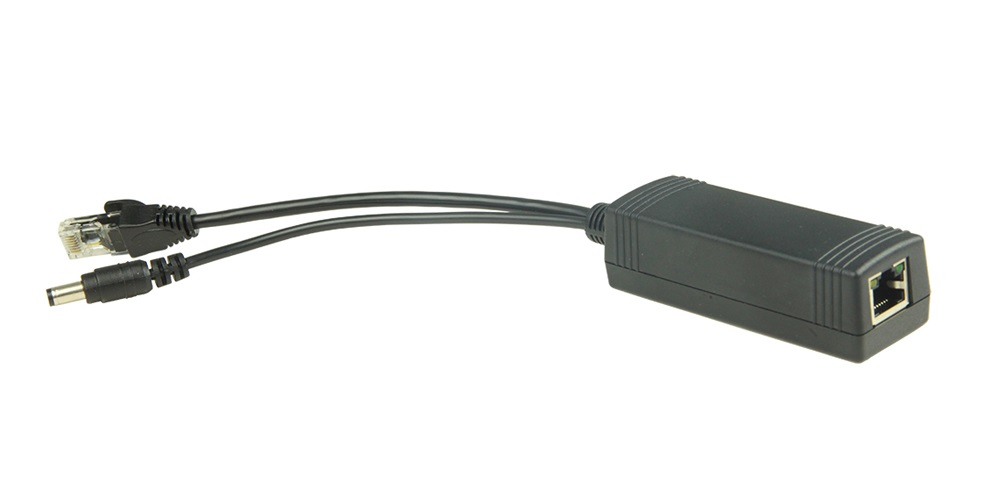

PD3202G is a cost-effective and high reliable remote
PoE PD device based on standard IEEE802.3af/at. It can split the power and data
transmitted through cable and provide power to any device which is not equipped
with PoE function. The output voltage is 12V. It simplifies the project wiring
and maintenance.
With transformer isolated
design for circuit input stage and output stage of the PD3202G power, it
enhances anti-jamming capability and protection for the device. It also effectively
reduces PoE Switch Abnormal Power Supply issues caused by common ground
problem. It is compatible with the standard of IEEE802.3af/at, compatible with
power method over both End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/ 8-). With the
features of output power at 13W, low ripple, more than 82% high efficiency,
Port Isolation Protection: 1500V and Protection for short circuit, over-current
& over-temperature.
Main Features
v 1* RJ45 female input port
+ 1* RJ45 male output port + 1* DC (5.5*2.1mm) male output port
v 1* 10/100/1000Mbps RJ45
port
v Support IEEE802.3af
v Compatible with power method
over both End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/ 8-)
v PoE Input Voltage: 44-57V
v Output voltage: 12V
v Output power: 13W
v Circuit protection to
protect the connected device
v Top-quality design, stable
and reliable
Technical Specifications
|
Name
|
10/100/1000M PoE Splitter Cable (PD3202G)
|
|
Network
Medium
|
UTP Cat.5 or more (≤100 meter)
Transmission
Bandwidth: 10/100/1000M
|
|
Network
Protocol
|
IEEE 802.3af
DTE Power via MDI
|
|
Output
Voltage
|
DC12V
|
|
Output Current
|
1.1A
|
|
Output
Power
|
13W
|
|
Input Voltage
|
37-57V/DC
|
|
DC/DC Switching
|
Supports
protection for over current and over temperature
|
|
Connector
|
1* PoE RJ45 Input Port,
1* RJ45 Output Port, 1* DC Power Input Port (5.5x 2.1mm)
|
|
Ripple
& Noise
|
Ripple for
output under normal voltage and current: 100mV /Vp-p (max)
Boot Delay:
Boot time 2s (max), under voltage input at DC 48V and output at max load.
Rise time:
50ms (max), under the
voltage input at DC 48V and output at max load.
|
|
Protections
|
Shot circuit protection:
Recover to work after load short-circuit released
Over current protection:
Recover to work after over-current released
Over voltage protection:
It is enabled when the voltage output is over 120% to 150% of the normal. Recover
to work after over-voltage released.
|
|
Working
Environment
|
Operating
Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);
Storage
Altitude: 3,000 m (10,000 ft)
|
