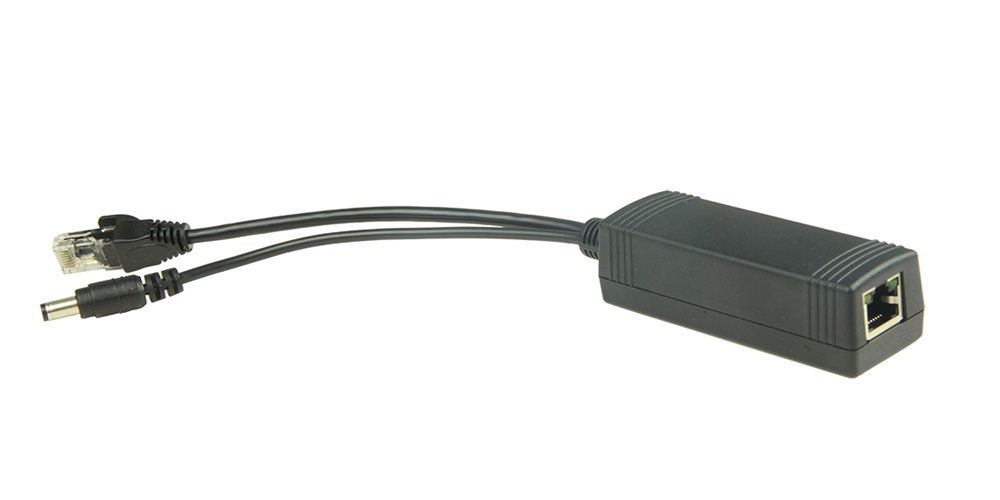

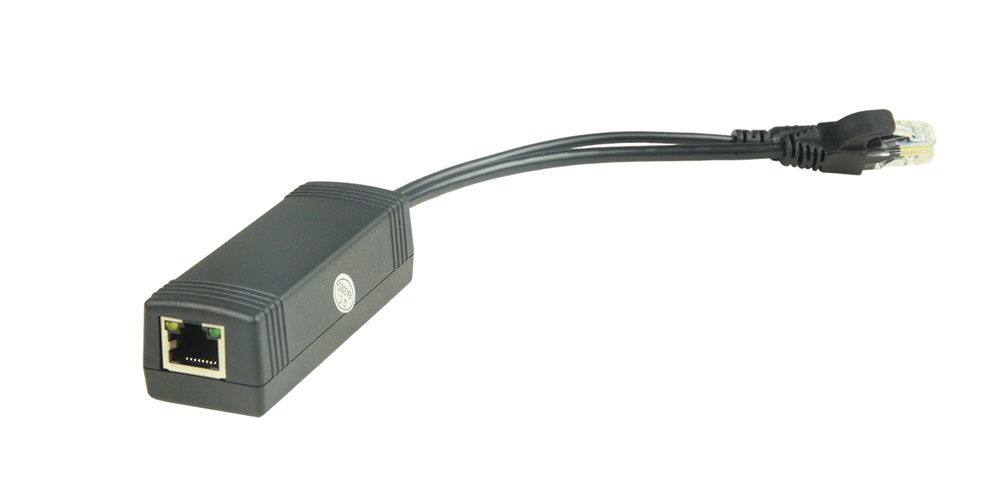

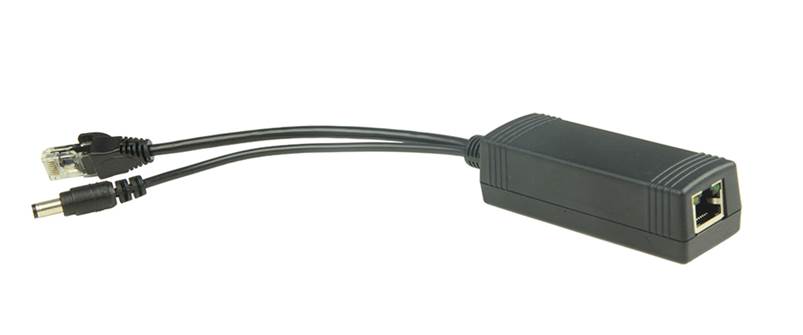

PD3202-at (~25W)
Single Port 10/100M PoE Splitter - 12V DC
(~25W)
PD3202-at is a cost-effective and high reliable remote
PoE PD device based on standard IEEE802.3af/at. It can split the power and data
transmitted through cable and provide power to any device which is not equipped
with PoE function. The output voltage is 12V. It simplifies the project wiring
and maintenance.
With transformer isolated
design for circuit input stage and output stage of the PD3202-at power,
it enhances anti-jamming capability and protection for the device. It also effectively
reduces PoE Switch Abnormal Power Supply issues caused by common ground
problem. It is compatible with the standard of IEEE802.3af/at, compatible with
power method over End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/ 8-). With the
features of output power at 24W, low ripple, more than 82% high efficiency,
Port Isolation Protection: 1500V and Protection for short circuit, over-current
& over-temperature.
Main Features
v 1x 10/100Mbps RJ45 port+
1*10/100M male output port+1*(5.5*2.1mm) DC output port
v Support IEEE 802.3at
Ethernet power standard
v Compatible with power method
over End-span (1/2+ 3/6-) and Mid-span (4/5+ 7/ 8-).
v 10/100M data transmission
v Output voltage:12V
v Circuit protection to
protect the connected device
v Top-quality design, stable
and reliable
Technical Specifications
|
Model
|
PD3202-at
|
|
Power Supply Type
|
Supports both 1/2(+), 3/6(-) and 4/5(+),7/8(-)
|
|
PoE
Voltage Input
|
44-57V
|
|
DC Voltage Output
|
12V
|
|
Connector
|
1x
10/100Mbps RJ45 input port
1*10/100M
male output port
1*(5.5*2.1mm)
DC output port
|
|
Network Medium
|
Cat5 (UTP) or more
|
|
Protocol
|
IEEE
802.3 i 10 BASE-T
IEEE
802.3 u 100 Base-TX
IEEE
802.3 x Flow Control
IEEE
802.3 at Power over Ethernet
|
|
Rate
|
10/100M
|
|
LED
Status
|
PoE power
input indicator light
|
|
Port Protection
|
Meet the IEC61000-4-2(ESD)±15KV (air), ±8KV (contact)
Compatible with 8/20us,24A(12A)
|
|
Certifications
|
CE, FCC, ROHS
|
|
Dimension
|
82x25x23.5mm
|
|
Weight
|
0.079kg
|
|
Environment
|
Operating Temperature: 0~55℃; Storage
Temperature: -20~70℃
|
