PD3101-af (~15W)
PD3101-at (~25W)

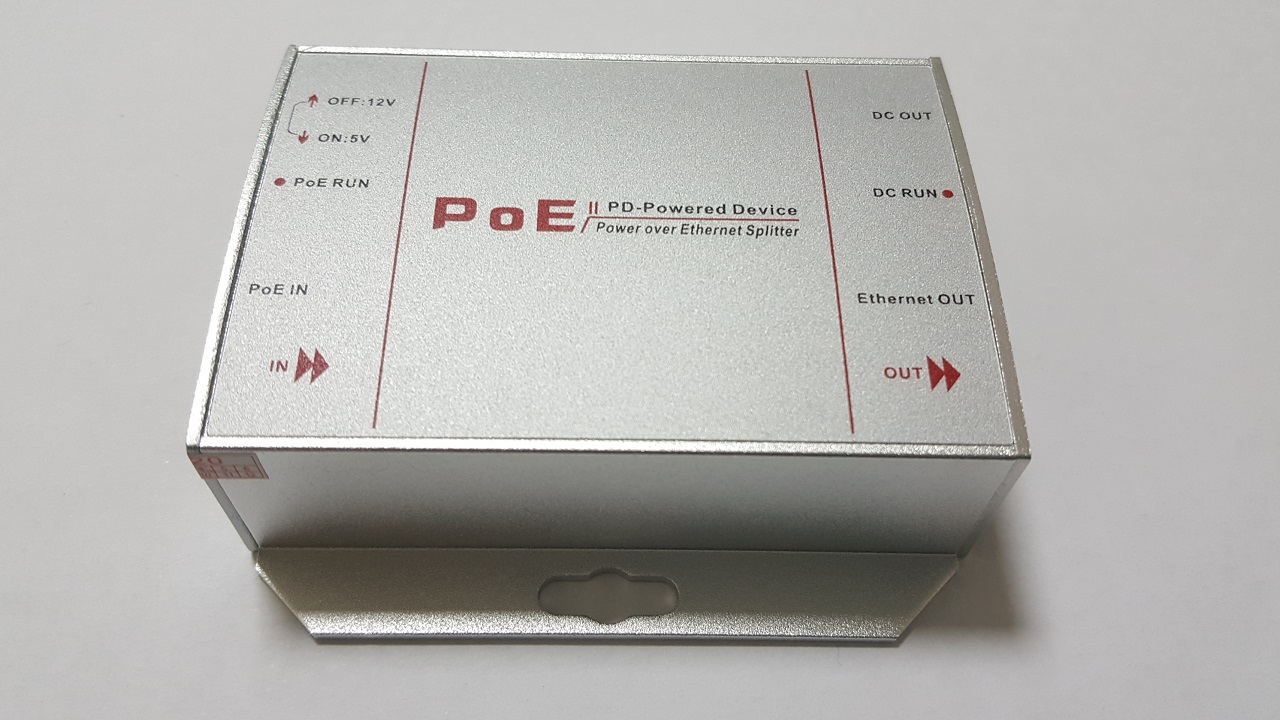

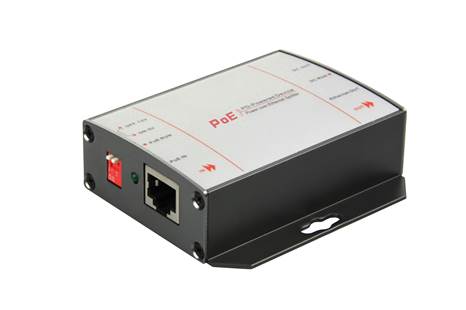

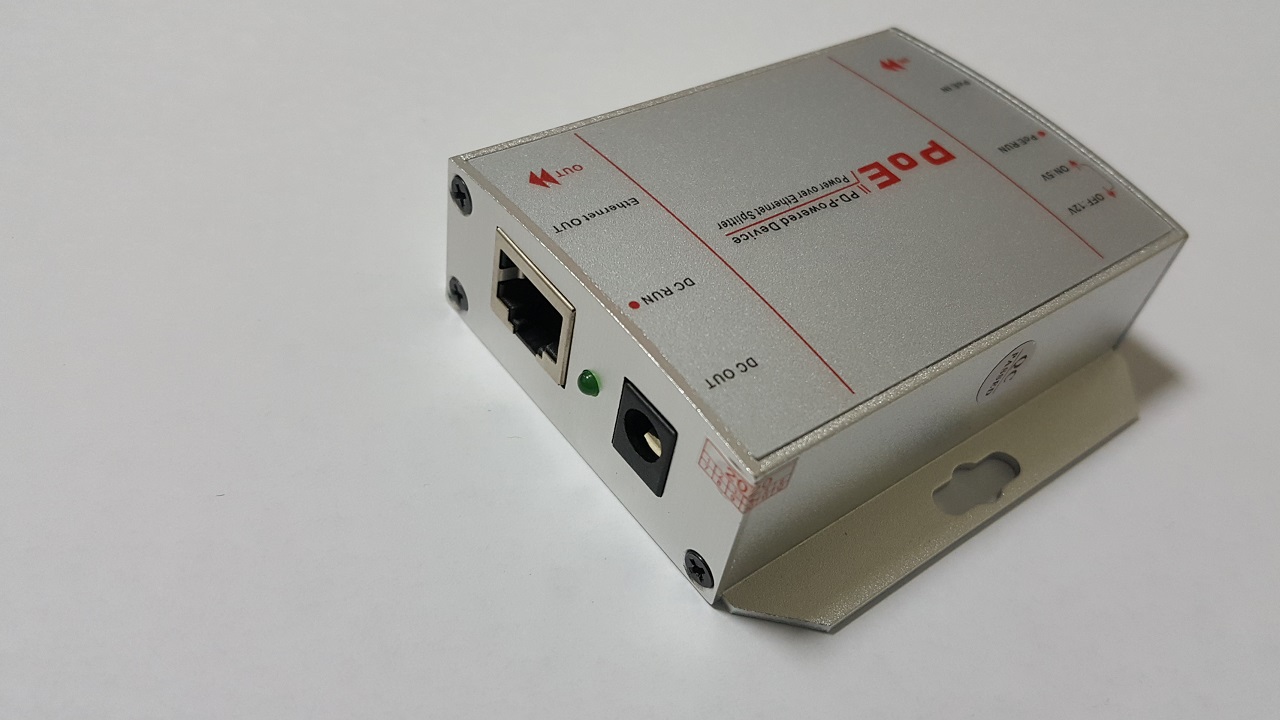

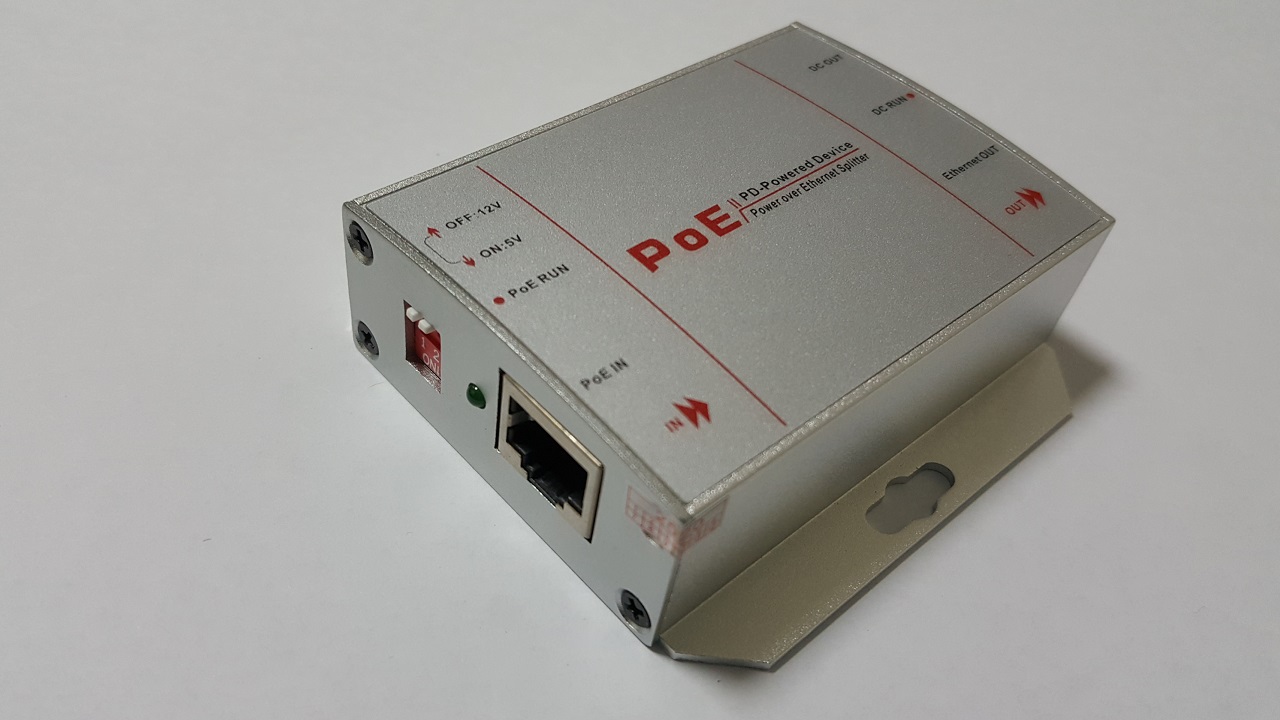

Single Port 10/100M PoE Splitter - 5V/12V
DC Output Selection
This
single port PoE splitter supports the deployment from restrictions of power
outlet locations, which eliminates the costs for additional AC wiring and
reduces the installation time. Data and power transmission distance can be up
to 100 meters.
For the cost saving and
power management purpose, the PD3101 is the ideal IEEE 802.3af/at Power over Ethernet device
that splits the 48V DC into 5V/12V DC power output through the RJ-45 Ethernet
cable. It complies with IEEE 802.3af/at
Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard.
Main Features
v Dual output, 5V/ 12V DC
output, can be adjustable
v Compatible with IEEE
802.3af/at PSE devices
v Support 10/100M data
transmission through RJ45 port
v Auto-negotiation and
auto-MDIX fast Ethernet RJ45 port
v Support both mid-span
(4/5+, 7/8-) and end-span (1/2+, 3/6-)
v IEEE802.3i; IEEE802.3u;
IEEE802.3x Flow Control; IEEE 802.1af DTE Power via MDI
v 100Base-TX (Less than 100
meters, CAT5 cable)
v Splits the 48V DC power
over RJ-45 Ethernet cable into 5V/ 12V DC output
Technical Specifications
|
Model
|
PD3101-af
|
PD3101-at
|
|
Description
|
Splits the
48V DC power over RJ-45 Ethernet cable into different DC output.
Compatible
with IEEE 802.3af/at standard PSE devices
|
|
Network
Protocols
|
IEEE 802.3i
10BASET
IEEE 802.3u
100BASET
IEEE 802.3ab
1000BASET
IEEE 802.3x
Flow Control
IEEE 802.3af
DTE Power via MDI
IEEE 802.3at
|
|
Input
port
|
PoE port
|
|
Output
|
DC 5V/ 12V,
RJ45 port
|
|
Network
Medium
|
100Base-TX
(less than 100 meters, CAT5 cable)
|
|
PoE
Features
|
IEEE802.3af/at
|
|
Power over
Ethernet
|
15.4W
|
25.5W
|
|
Dual
Output
|
5V/ 12V DC
output
|
|
Dimension/
Weight
|
80X76X25mm/
0.114kg
|
|
Environment
|
Operating
temperature: -20 to 55° C
Storage
temperature: -20 to 75°C
|
|
Certification
|
CE Mark, commercial,
FCC Part 15 Class B, RoHS
|

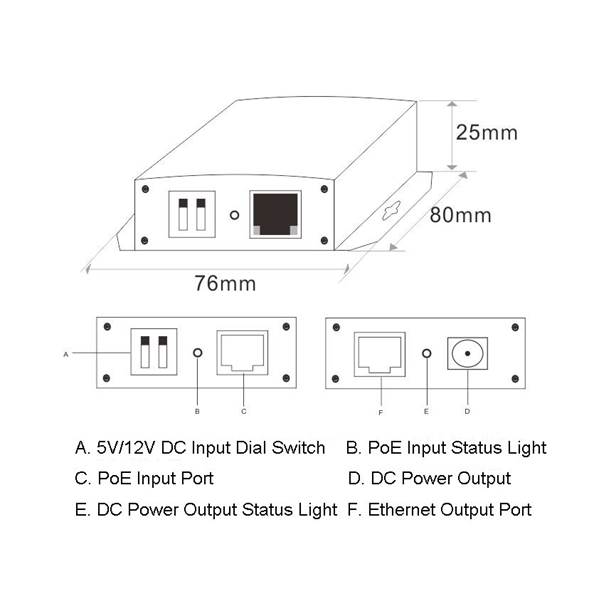

Dimensions
