PSE3101DC / PSE3101DC-at

PSE3101DC (Port Power ~15W)

PSE3101DC-at (Port Power ~30W)

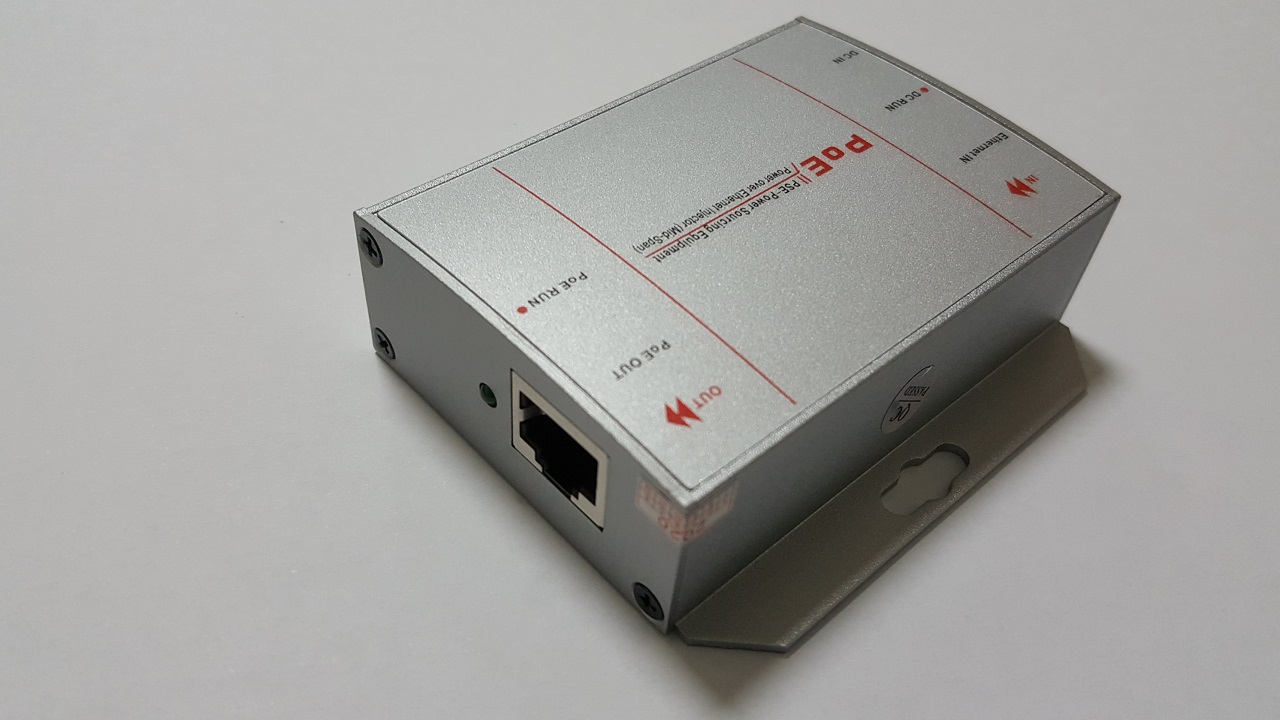

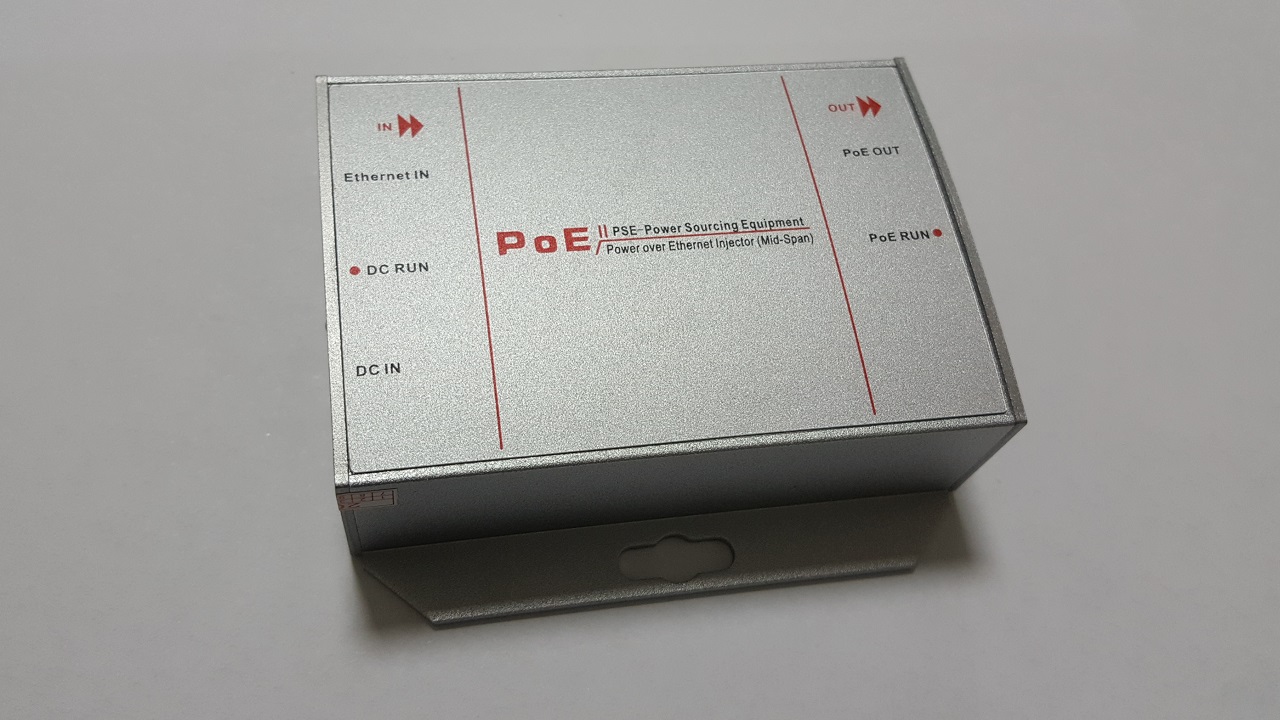

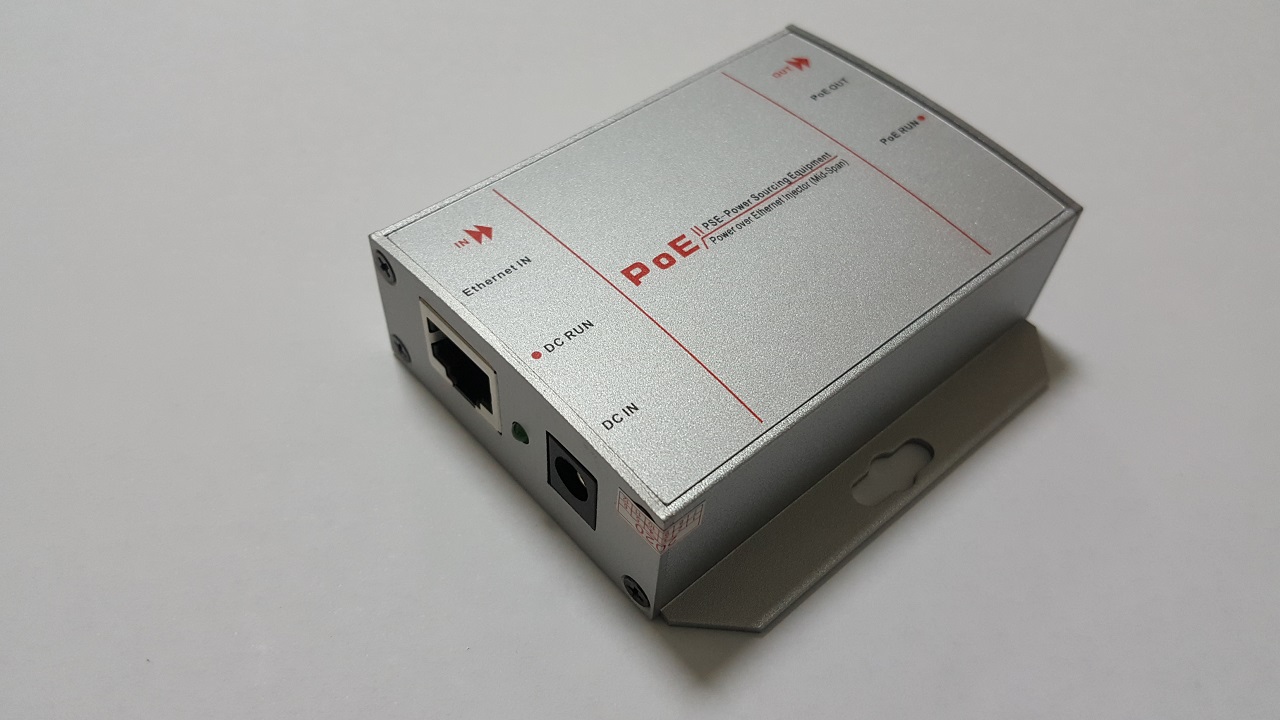

Single Port 10/100M PoE Injector – DC Supply

PoE Injector is also called as power over Ethernet mid-span devices. The PSE3101DC is a single-port PoE injector (PoE power supply module). There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in-Port for the uplink upper switches or other upper network devices, and another is PoE Out-port used as the port for network data and power output. These single-port PoE injectors supply power over the data line pair 1/2(+), 3/6(-).

These PoE injectors provide a simple, economical, efficient, high-performance, and intelligent way for Ethernet PoE power supply and data communication. It is ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective.

Main Features

v  Can supply 12V power to Sensors and Automation devices

v  2x 10/100M RJ45 ports; 1x DC input port

v  DC input: 12V~32V

v  Compatible with IEEE802.3af/at standard

v  Coming with the Ethernet network port and PoE output port.

v  Power input port with lighting-proof function (meet the secondary lightning protection)

v  Can supply power over the data line pair 1/2(+), 3/6(-)

v  No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

Technical Specifications

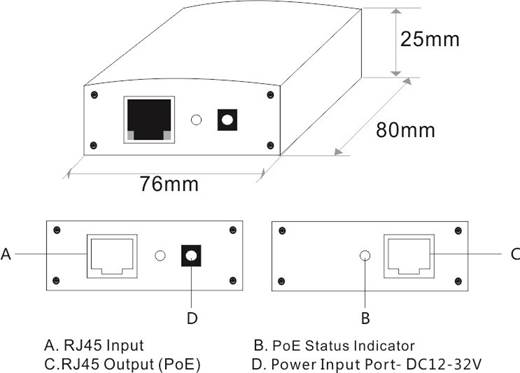

Dimensions
